ESS Accrssories
A1-BI
-
A1-BI-200-G2

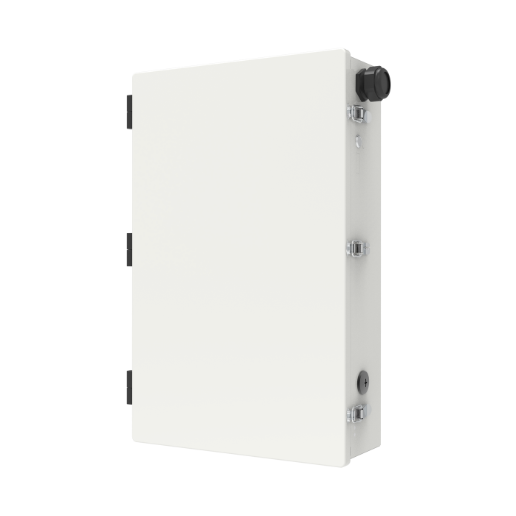

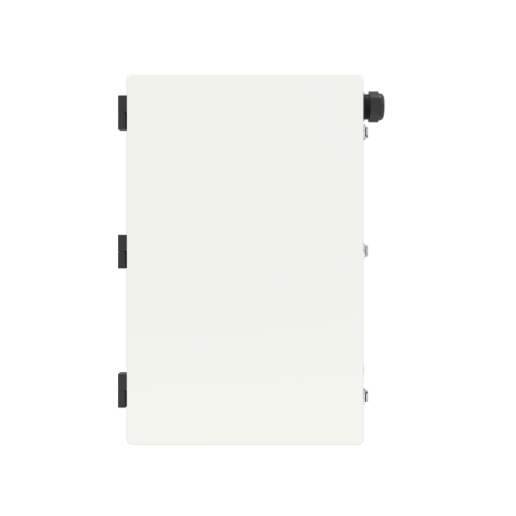

The AI-BI-200 Backup Interface(BI) is designed for stable energy control during outages. It supports up to 160A continuous current and 15kW generator input.
Product Advantage
Experience uninterrupted power and unparalleled control with Backup Interface (BI). Take advantage of the built-in energy management meter and smart load management features for optimized energy usage. Enjoy convenient distribution, integrated parallel operation, and whole-home load distribution.
Backup & Flexibility
Flexible home backup
Smart Management
Built-in energy management meter
Smart load management
Power & Scalability
Maximum 160A AC current
Up to 4 systems in parallel
64A generator supported
Product Parameters
-
A1-BI-200-
GENERAL
Maximum Supply Short Circuit Current [kA] 22 Dimensions (H × W × D) [in / mm] 27.8 x 17.7 x 5.9 / 706 x 450 x 151 Weight [lb / kg] 69.4 / 31.5 Communication interfaces RS485, CAN, Dry Contact Cooling Fan Warranty 12 years -
STANDARD COMPLIANCE
Safety UL1741, UL67, UL869A, CSA 22.2, NO.107 Emissions FCC part 15 Class B, ICES 003 -
INSTALLATION SPECIFICATIONS
Altitude [ft / m] 9842 / 3000 MAX Protection class NEMA 3R
-
