C & I Batteries

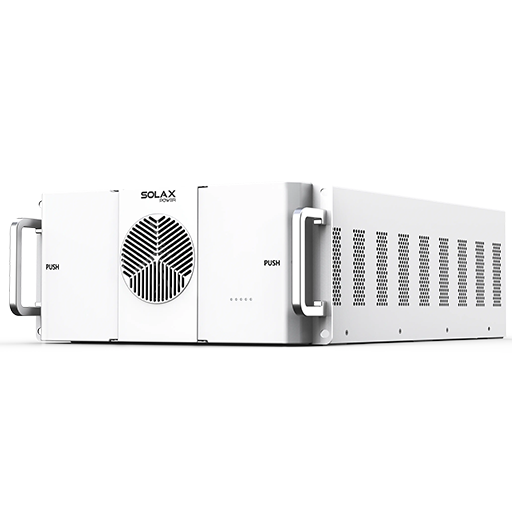

TB-HR140
-
14.3kWh | LFP 280Ah | IP20
Equipped with a 14.3 kWh LFP battery in a 1P16S configuration, this C&I battery TB-HR140 delivers solid energy storage capabilities. It operates at a nominal voltage of 51.2 V, with a wide voltage range of 40 V to 58.4 V, ensuring reliable performance in diverse environments.
Product Advantage
The TB-HR140 excels in versatility and durability, supporting a wide operating temperature range from -20°C to 53°C and relative humidity levels from 0% to 95%. Its robust design is suitable for high-altitude locations up to 3000 meters, with IP20-rated ingress protection ensuring safety and reliability. The unit also supports seamless communication with power conversion systems (PCS) through a CAN interface, simplifying integration and monitoring.
Utilizes 280Ah Lithium Iron Phosphate (LFP) batteries for enhanced safety, longevity, and efficiency.
Operates in temperatures from -20°C to 53°C and relative humidity levels of 0-95%, with a maximum operating altitude of 3000 meters.
Weight of 115 kg, charge/discharge rate of ≤ 0.5C, and ingress protection rating of IP20 ensure durability and reliable performance.
Battery capacity of 14.3 kWh, expandable and adaptable with a 1P16S configuration.

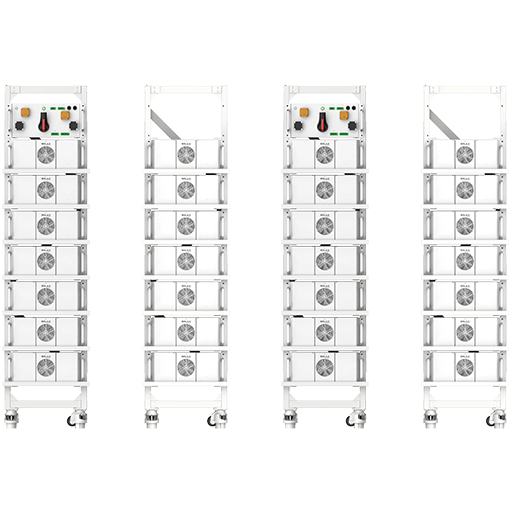

Available in wall-mounted and floor-mounted configurations to suit different installation needs.
461 × 228 × 778 mm, providing a compact and space-efficient solution.
Utilizes Controller Area Network (CAN) for reliable and efficient communication with Power Conversion Systems (PCS).
Product Parameters
-
TB-HR140-
BATTERY MODULE
Battery type LFP 280Ah Battery capacity 14.3 kWh Battery configuration 1P16S Rated battery voltage 51.2 V Battery voltage range 40 ~ 58.4 V Charge / discharge rate ≤ 0.5 C -
GENERAL
Weight 115 kg Dimensions (W × H × D) 461 × 228 × 778 mm Ingress protection IP20
-
