Microinverters

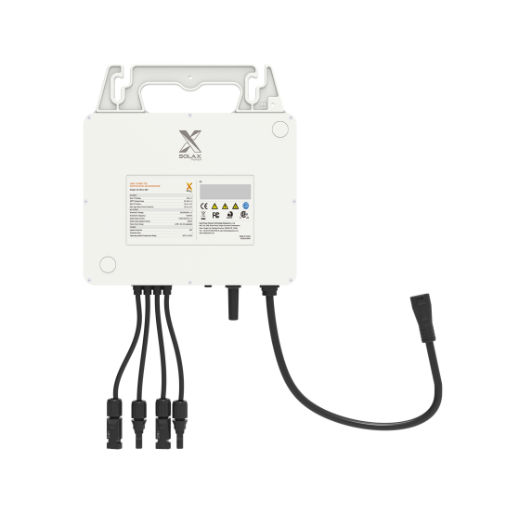

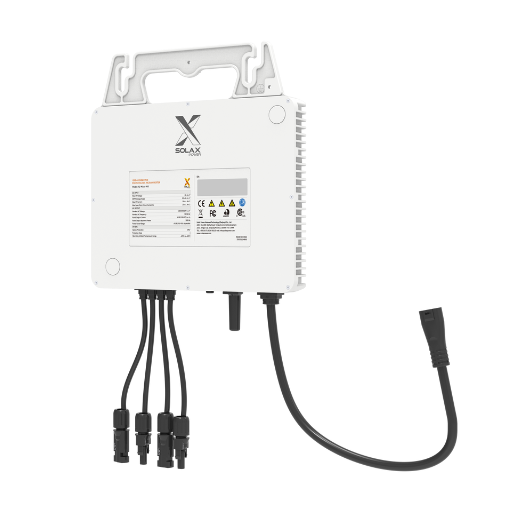

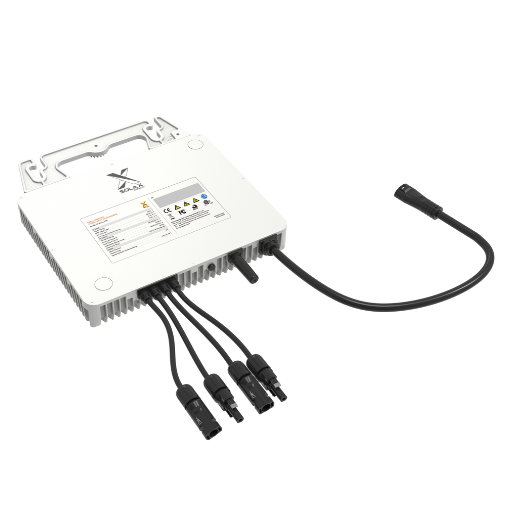

X1-Micro 2 in 1
-
800W/ 900W / 1000W / 1200W
The SolaX X1 Micro 2-in-1 integrates a microinverter and DC isolator for simplified solar installations. With 98.6% peak efficiency, it maximizes energy harvest while supporting 700W+ panels. Features IP67 waterproofing, NEC-compliant rapid shutdown, and smart monitoring via SolaX Cloud App—delivering high-performance, module-level optimization in a compact, plug-and-play design
-
Watch Video
Product Advantage
Delivering up to 1200VA output power with a 20A DC input current, the X1-Micro 2 in 1 sets a high standard in energy conversion efficiency. Featuring two independent MPPT channels, it maximizes solar yield across variable conditions.
Built-in industrial grade Wi-Fi module
Safety protection relay integrated
IP67 protection class
Max. 600VA output power
Max. 20A DC input current
Single MPPT for optimal energy harvest
Reactive power control
Faster installation with plug and play cables and connectors
Complies with advanced grid support and voltage/frequency ride-through requirements for enhanced stability
Industrial-grade PLC module for stable data transmission and easier wiring
Easy and flexible expansion of system capacity
Support AC coupling solution
Support 1-phase microinverter integration into 3-phase power grids*
Product Parameters
-
X1-Micro 750-
PV INPUT
Commonly used module power per input 240~470+W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 2 / 1 -
AC OUTPUT
Rated AC output power 750 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 260x212x40 mm Weight 4.1 kg Cooling Concept Natural cooling
-
-
X1-Micro 800
-
PV INPUT
Commonly used module power per input 320~540+W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 2 / 1 -
AC OUTPUT
Rated AC output power 800 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 260x212x40 mm Weight 4.1 kg Cooling Concept Natural cooling
-
-
X1-Micro 900
-
PV INPUT
Commonly used module power per input 360~600+W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 2 / 1 -
AC OUTPUT
Rated AC output power 900 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 260x212x40 mm Weight 4.1 kg Cooling Concept Natural cooling
-
-
X1-Micro 1000
-
PV INPUT
Commonly used module power per input 360~600+W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 2 / 1 -
AC OUTPUT
Rated AC output power 1000 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 260x212x40 mm Weight 4.1 kg Cooling Concept Natural cooling
-
-
X1-Micro 1200
-
PV INPUT
Commonly used module power per input 400~670+W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 2 / 1 -
AC OUTPUT
Rated AC output power 1200 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 260x212x40 mm Weight 4.1 kg Cooling Concept Natural cooling
-
Data Download
-
Datasheet
-
User Manual
-
Quick Installation Guide
-
