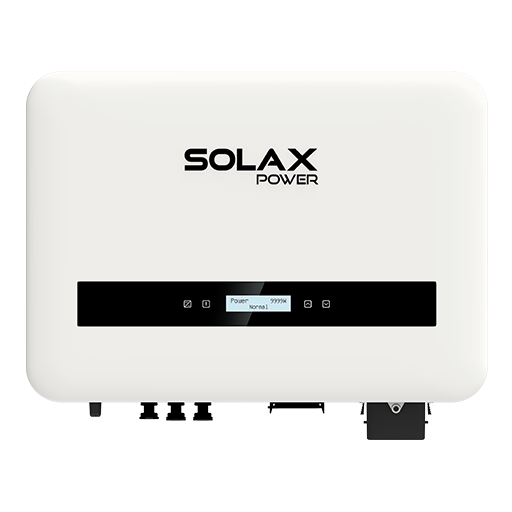

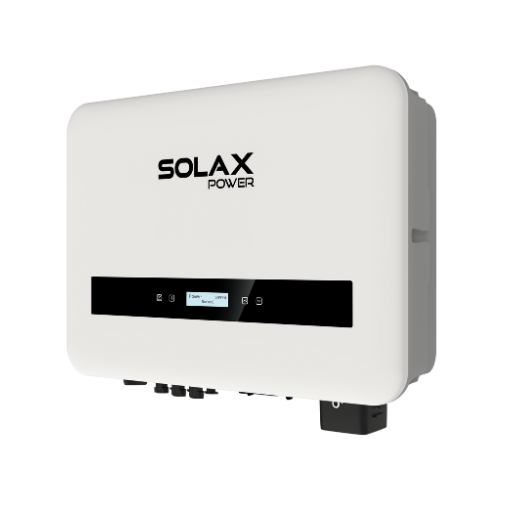

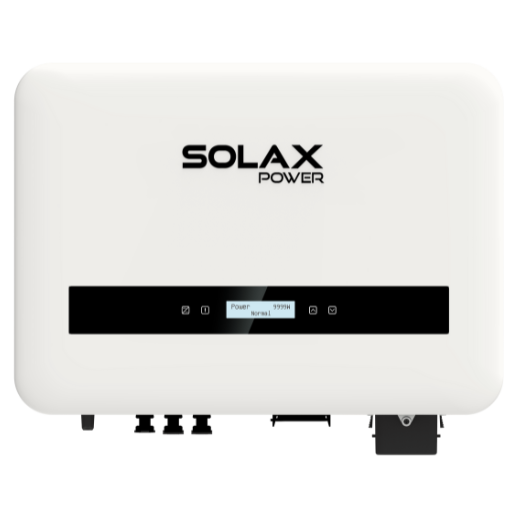

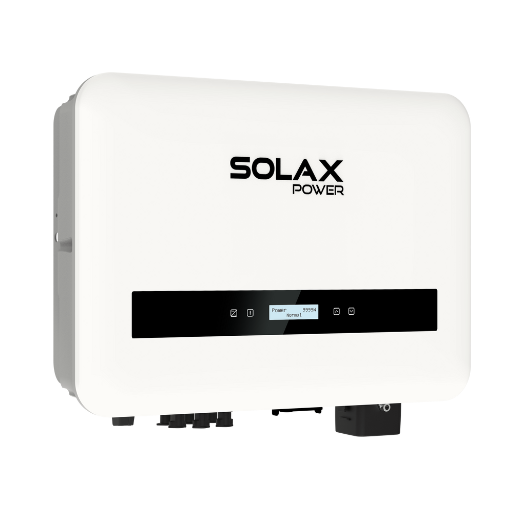

Single Phase Inverter

X1-SMART G2

5kW / 6kW / 7kW 8kW / 9kW /10kW

The X1-SMART G2 single-phase inverter features a thoughtfully optimized design tailored for modern energy systems. With a plug-and-play communication terminal, rapid 10-second data refresh intervals, and built-in I-V curve diagnosis, this inverter offers seamless setup and real-time performance visibility.

Watch Video
Data Download

Product Advantage

Equipped with 3 MPP trackers for flexible panel orientation and support for up to 200% PV oversizing and 110% AC overloading, this inverter delivers superior power yield. With a built-in global MPP scan and 20A PV input current capacity, it's designed to maximize energy production in all conditions.

Assured Safety

Type II SPD on AC&DC side
Ready for Rapid Shutdown function
AFCI support (optional)

Flexible Adaptability

Supports parallel operation for up to 5 inverters, no external EMS required
Smart loads management (e.g., heat pump, smart EV charger)

Intelligent Design

Plug-and-Play communication terminal
10s data refresh interval & 24h consumption monitoring
I-V Curve diagnosis

High Efficiency

3 MPP trackers for multi-orientation
Max. 20A PV input current
200% PV oversizing & 110% AC overloading
Built-in global MPP scan

Product Parameters

X1-SMT-10K-G2
X1-SMT-9K-G2
X1-SMT-8K-G2
X1-SMT-7K-G2
X1-SMT-6K-G2
X1-SMT-5K-G2

X1-SMT-10K-G2
- PV INPUT

  Max.recommended PV arraypower 20 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 3 / (1 / 1 / 1)
  Max. input current per MPPT 20 A / 20 A / 20 A
- AC OUTPUT

  Rated output power 9999 W
  Nominal AC voltage 1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  515 × 370 × 170 mm
  Net Weight 19.5 kg
  Cooling concept Nature cooling
X1-SMT-9K-G2
- PV INPUT

  Max.recommended PV arraypower 18 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 3 / (1 / 1 / 1)
  Max. input current per MPPT 20 A / 20 A / 20 A
- AC OUTPUT

  Rated output power 9000 W
  Nominal AC voltage 1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  515 × 370 × 170 mm
  Net Weight 19.5 kg
  Cooling concept Nature cooling
X1-SMT-8K-G2
- PV INPUT

  Max.recommended PV arraypower 16 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 3 / (1 / 1 / 1)
  Max. input current per MPPT 20 A / 20 A / 20 A
- AC OUTPUT

  Rated output power 8000 W
  Nominal AC voltage 1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  515 × 370 × 170 mm
  Net Weight 19.5 kg
  Cooling concept Nature cooling
X1-SMT-7K-G2
- PV INPUT

  Max.recommended PV arraypower 14 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 3 / (1 / 1 / 1)
  Max. input current per MPPT 20 A / 20 A / 20 A
- AC OUTPUT

  Rated output power 7000 W
  Nominal AC voltage 1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  515 × 370 × 170 mm
  Net Weight 19.5 kg
  Cooling concept Nature cooling
X1-SMT-6K-G2
- PV INPUT

  Max.recommended PV arraypower 12 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 3 / (1 / 1 / 1)
  Max. input current per MPPT 20 A / 20 A / 20 A
- AC OUTPUT

  Rated output power 6000 W
  Nominal AC voltage 1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  515 × 370 × 170 mm
  Net Weight 19.5 kg
  Cooling concept Nature cooling
X1-SMT-5K-G2
- PV INPUT

  Max.recommended PV arraypower 10 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 3 / (1 / 1 / 1)
  Max. input current per MPPT 20 A / 20 A / 20 A
- AC OUTPUT

  Rated output power 4999 W
  Nominal AC voltage 1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  515 × 370 × 170 mm
  Net Weight 19.5 kg
  Cooling concept Nature cooling
