Hybrid Inverter

X3-AELIO

49.9K | 50K | 60K | 61K

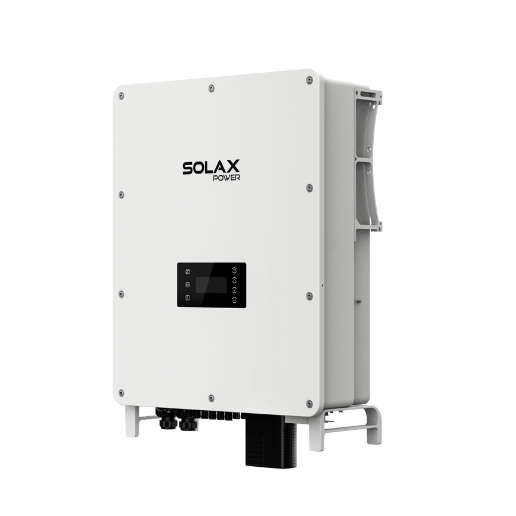

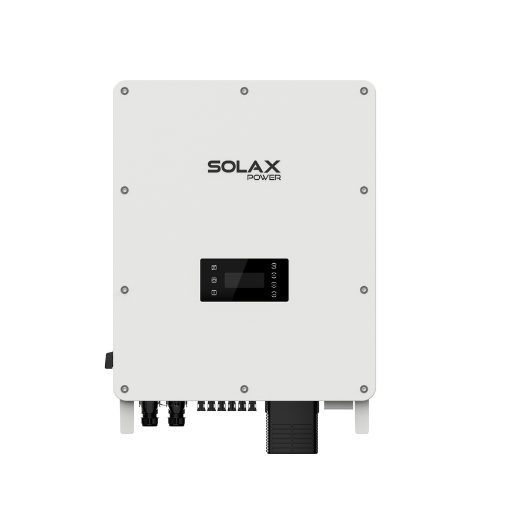

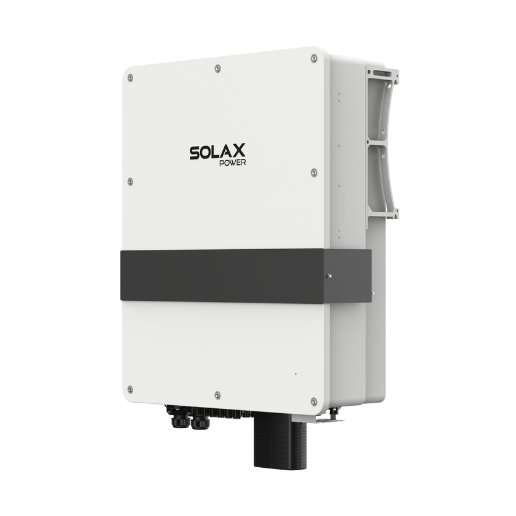

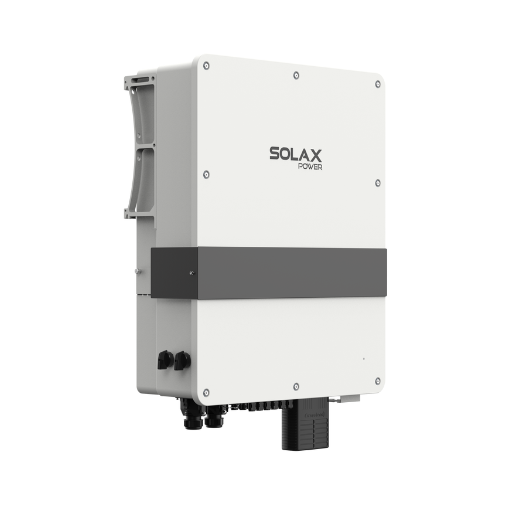

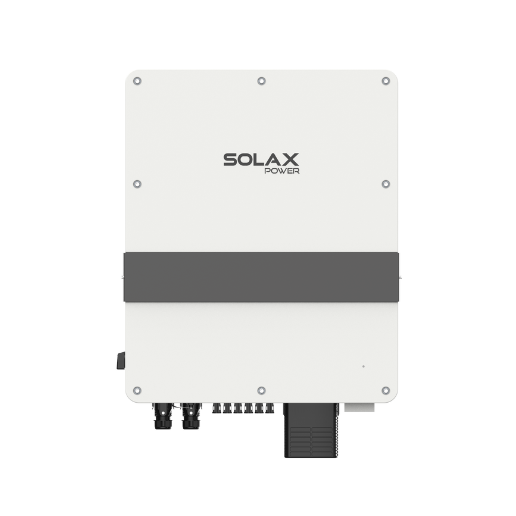

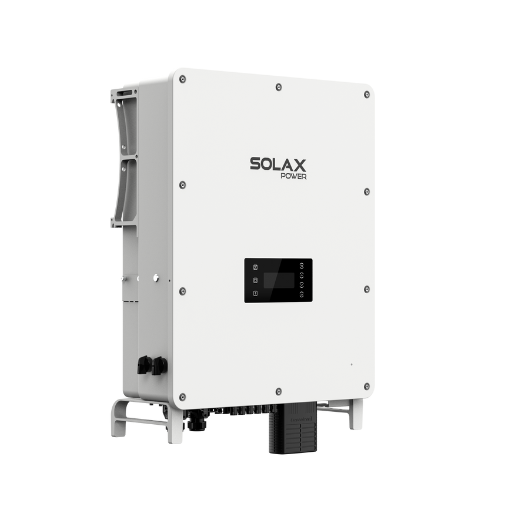

The SolaX X3-AELIO hybrid solar inverter combines intelligent energy management with high efficiency. With VPP readiness and a fast switch-over time of less than 10ms, it supports both on-grid and off-grid operation. Dual independent battery ports allow for easy capacity expansion.

Data Download

Product Advantage

The X3-AELIO ensures high energy efficiency with 200% PV input and 150% EPS output for 10 seconds. Its smart microgrid function balances power between systems, while features like wireless metering and 24/7 scheduling help optimize energy storage.

Robust

Robust back-up ability, switch over time ＜10ms, up to 150% EPS output for 10s
Support off-grid operation

Economic

Maximum 200% PV input
Maximum 40A input current per MPpT, support high power solar panel

Safe

IP66 protection level
AC&DC SPD type II, always guarding the inverter
AFCI optional
Smart IV Curve scan for early panel diagnosis

Intelligent

AI ready, forecasting solar generation and load consumption, smart energy management strategy*
VPP ready, SolaX cloud supports resource aggregator (2030.5, OpenADR )
Support smart scene function, intelligent loads management(e.g., Heat pump, EV charger)*
Micro-grid ready, supporting a variety of scenarios, both on-grid and off-grid, balancing power between PCS and Hybrid in real time
Support 7x24h scheduling mode
Support Wireless meter solution
Dual independent battery ports are ready to expand more capacity

Product Parameters

X3-AELIO-49.9K
X3-AELIO-49.9K-P
X3-AELIO-50K
X3-AELIO-60K
X3-AELIO-61K

X3-AELIO-49.9K
- PV INPUT

  Max. recommended PV array power 100 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 5/2
  Max. input current per MPPT 40 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 49.9 kW
- EPS (OFF-GRID) OUTPUT

  Rated EPS output power
  49.9 kVA
  Switchover time <10 ms
- GENERAL

  Dimensions (W /H / D) 820 × 670 × 257 mm
  Net Weight ＜100 kg
X3-AELIO-49.9K-P
- PV INPUT

  Max. recommended PV array power 120 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 6/2
  Max. input current per MPPT 40 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 49.9 kW
- EPS (OFF-GRID) OUTPUT

  Rated EPS output power
  49.9 kVA
  Switchover time <10 ms
- GENERAL

  Dimensions (W /H / D) 820 × 670 × 257 mm
  Net Weight ＜105 kg
X3-AELIO-50K
- PV INPUT

  Max. recommended PV array power 100 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 5/2
  Max. input current per MPPT 40 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 50 kW
- EPS (OFF-GRID) OUTPUT

  Rated EPS output power
  50.0 kVA
  Switchover time <10 ms
- GENERAL

  Dimensions (W /H / D) 820 × 670 × 257 mm
  Net Weight ＜100 kg
X3-AELIO-60K
- PV INPUT

  Max. recommended PV array power 120 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 6/2
  Max. input current per MPPT 40 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 60 kW
- EPS (OFF-GRID) OUTPUT

  Rated EPS output power
  60.0 kVA
  Switchover time <10 ms
- GENERAL

  Dimensions (W /H / D) 820 × 670 × 257 mm
  Net Weight ＜105 kg
X3-AELIO-61K
- PV INPUT

  Max. recommended PV array power 120 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 6/2
  Max. input current per MPPT 40 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 61 kW
- EPS (OFF-GRID) OUTPUT

  Rated EPS output power
  61.0 kVA
  Switchover time <10 ms
- GENERAL

  Dimensions (W /H / D) 820 × 670 × 257 mm
  Net Weight ＜105 kg
