Rapid Shutdown Device

XRSD

1 connection / 2 connections

Prioritizing safety and rapid shutdown capabilities, the XRSD series offers a sophisticated module-level solution that guarantees the smooth functioning of both new and existing PV systems. Once activated by the SolaX Transmitter—XRSD-Core Kit, the XRSD modules ensure your connected PV system remains operational.

Watch Video
Data Download

Product Advantage

In case of emergencies, you have multiple shutdown options: either remotely control each individual panel through the SolaX cloud, toggle the AC breaker on the Transmitter, or engage the E-STOP button. This versatility makes the XRSD system a reliable safety measure for quick deactivation of your PV system as needed. Note: To achieve rapid shutdown, please use with the TRANSMITTER KIT (Model: XRSD-CORE KIT).

Assured Safety

Module-level rapid shutdown
IP68 with unrivaled reliability

High Efficiency

Max. 20A PV input current
Lower power consumption & wider operating voltage

Intelligent Design

Faster installation with plug-and-play cables and connectors
Ultra-low signal noise, enhancing system stability

Flexible Adaptability

Compatible with all SolaX inverters and other major inverter brands
Compatible with mainstream PV panels

Product Parameters

XRSD-2C
XRSD-1C

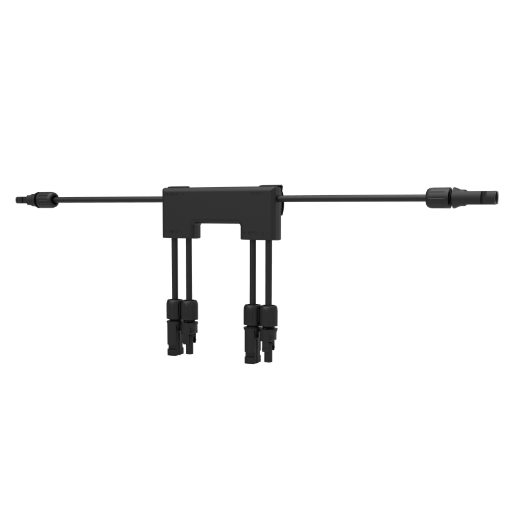

XRSD-2C
- MECHANICAL

  Dimensions(without cables and connectors 135 × 59 × 20 mm
  Weight 720 g
  Protection class IP68 / NEMA6P
- COMPLIANCE

  Safety EN 62109-1:2010
  EMC EN IEC 61000-6-1 / 2 / 3 / 4; EN IEC 61000-3-2 / 3 / 11 / 12; EN 55011

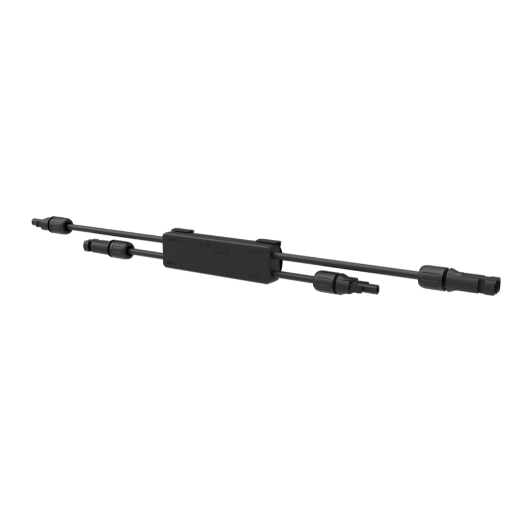

XRSD-1C
- MECHANICAL

  Dimensions(without cables and connectors 130 x 36 x21 mm
  Weight 400 g
  Protection class IP68 / NEMA6P
- COMPLIANCE

  Safety CE, RCM, Telec, PSTI
  EMC EN IEC 61000-6-1 / 2 / 3 / 4; EN IEC 61000-3-2 / 3 / 11 / 12; EN 55011
