ESS-AELIO

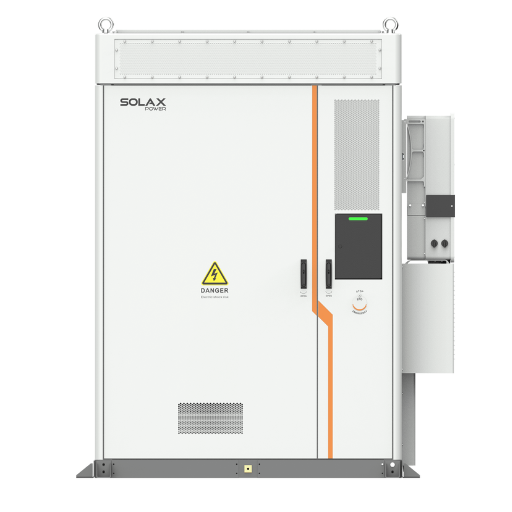

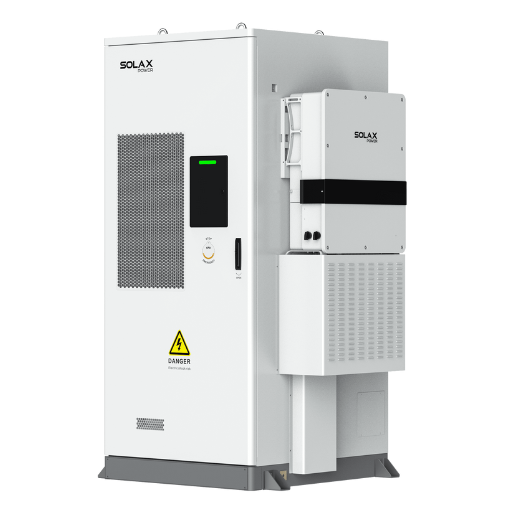

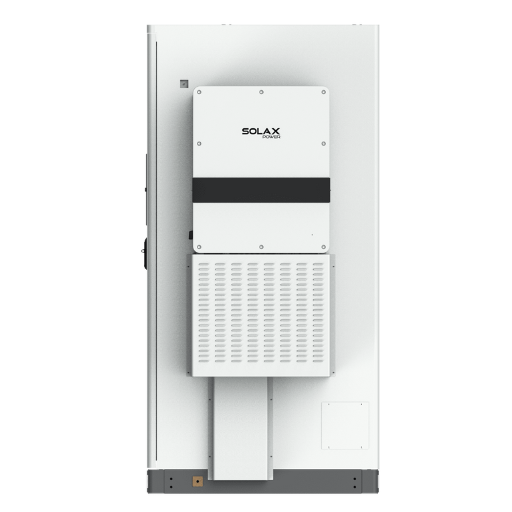

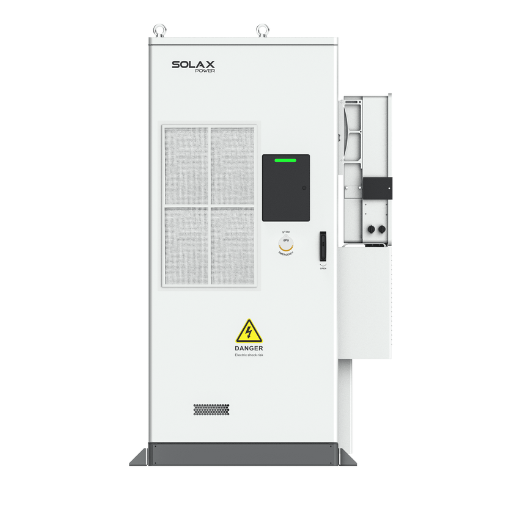

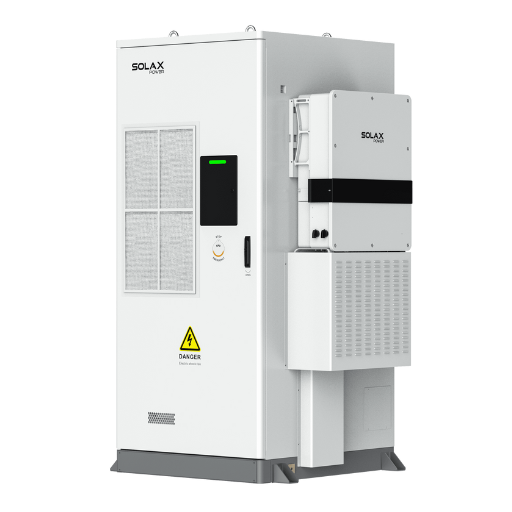

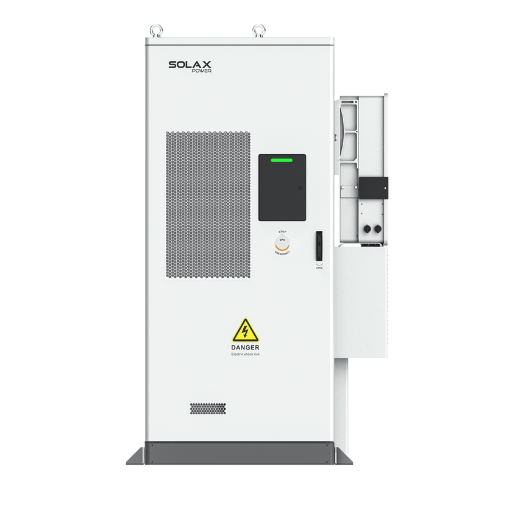

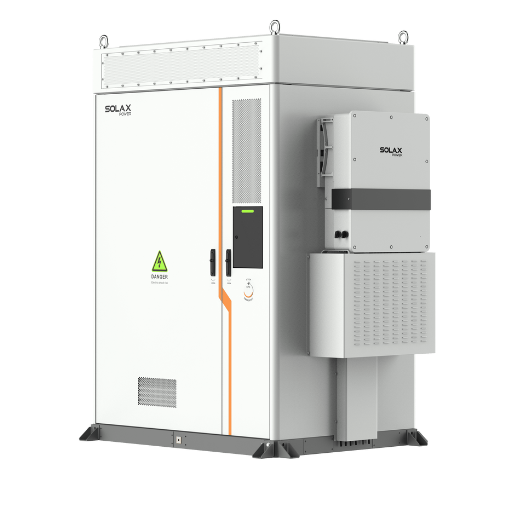

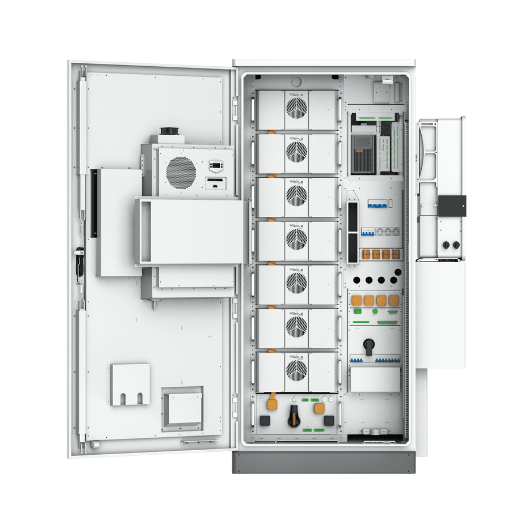

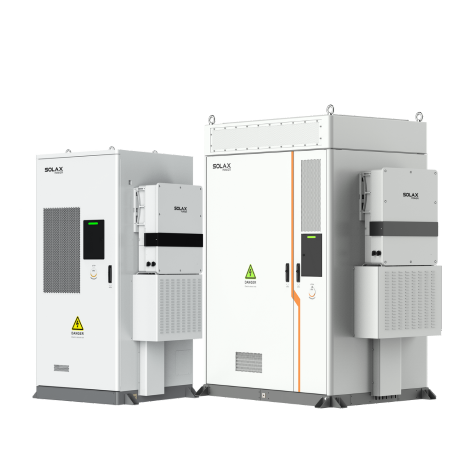

Hybrid C&I ESS Cabinet | 50kW / 60kW | 100~400kWh

Its modular architecture allows flexible deployment for a range of applications, from commercial to industrial. Designed to support grid-tied and off-grid scenarios, the Hybrid ESS cabinet offers seamless integration and maximized space utilization, making it an ideal choice for growing energy demands.

Watch Video
Data Download

Product Advantage

With support for 200% PV oversizing and a maximum 40A DC input current, the Hybrid ESS Cabinet ensures high throughput for large-scale solar integration. Global MPP scanning maximizes energy harvest, while smart IV curve diagnostics enhance panel performance visibility.

Assured Reliability

Four-level fire safety protection
IP66 for inverter, IP55 for cabinet
Type II SPD on AC&DC side
Smart IV Curve scan for early panel diagnosis
Optional AFCI protection*
Support three-phase unbalance output

High Performance

Max. 200% PV oversizing input
Global MPP scan for optimal energy harvest

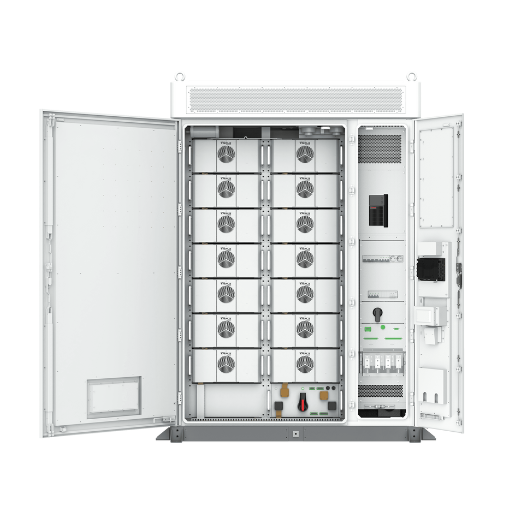

Single cabinet with up to 200kWh, expandable to MWh-scale capacity
Dual battery ports, extend anytime 2/4/6/8h

Smart Management

Al-driven intelligent algorithms for high SOC and accuracy
VPP ready with SolaX Cloud (2030.5, OpenADR)
Support micro-grids and diverse scenarios
Smart Schedule, Smart Scene and 7×24h TOU
Wireless meter compatibility

Flexible Adaptability

Grid-connected and off-grid support
Expandable design with modular capacity options
Max. 40A DC input current for high power solar panel

Product Parameters

AELIO-P60B100/B143/B200
AELIO-P50B100/B143/B200

AELIO-P60B100/B143/B200

DC SIDE

Max. recommended PV array power 120 kWp
MPPT voltage range 160 ~ 950 V
No. of MPP trackers / strings per MPP tracker 6 / 2
AC SIDE

Rated output power 60.0 kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
3 / N / PE, 240 / 415 V
BATTERY SIDE

Rated battery capacity 100 kWh/143kwh/200kwh

GENERAL

Dimensions (with inverter) (W × H × D)	1310 × 2300 × 1140 mm /2070 × 2420 × 1200 mm
Dimensions (without Inverter) (W × H × D)	1020 × 2300 × 1150 mm /1680 × 2420 × 1200 mm
Weight (with inverter)	1600 kg/2344 kg/2800 kg
Weight (without inverter)	1500 kg/2244 kg/2700 kg
Ingress protection	Cabinet: IP55; Inverter: IP66

AELIO-P50B100/B143/B200

DC SIDE

Max. recommended PV array power 100 kWp
MPPT voltage range 160 ~ 950 V
No. of MPP trackers / strings per MPP tracker 5 / 2
AC SIDE

Rated output power 50.0 kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
3 / N / PE, 240 / 415 V
BATTERY SIDE

Rated battery capacity 100 kWh/143kwh/200kwh

GENERAL

Dimensions (with inverter) (W × H × D)	1310 × 2300 × 1140 mm /2070 × 2420 × 1200 mm
Dimensions (without Inverter) (W × H × D)	1020 × 2300 × 1150 mm /1680 × 2420 × 1200 mm
Weight (with inverter)	1600 kg/2344 kg/2800 kg
Weight (without inverter)	1500 kg/2244 kg/2700 kg
Ingress protection	Cabinet: IP55; Inverter: IP66
