Home EV Charger

Smart EV Charger

X1-EVC-7.2kW X3-EVC-11kW X3-EVC-22kW

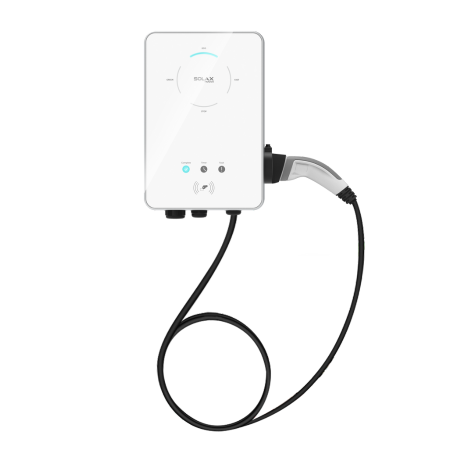

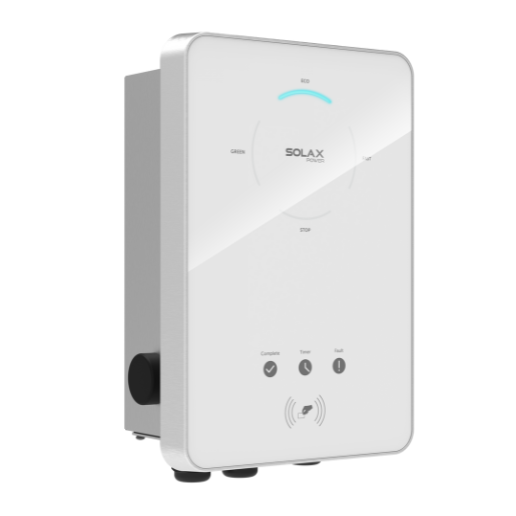

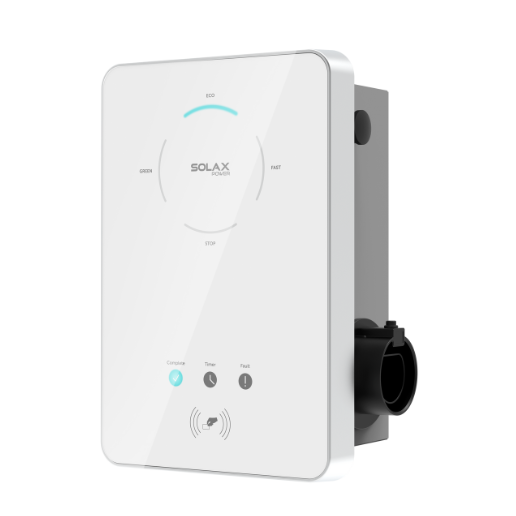

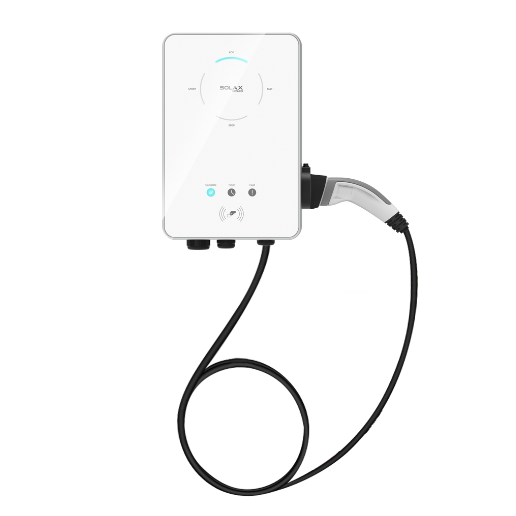

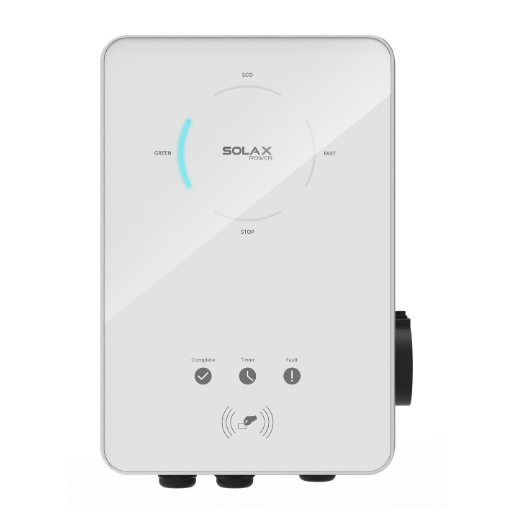

The Smart EV Charger supports both plug and socket outlet options to match user preferences. Designed to integrate with the X-ESS G4 solar+storage system, it ensures a unified energy ecosystem that maximizes performance and convenience.

Watch Video
Data Download

Product Advantage

Capable of utilizing 100% renewable energy, the Smart EV Charger maximizes surplus green energy use in zero-export systems. Featuring smart dynamic load balancing, it supports efficient power distribution for sustainable electric vehicle charging.

Flexible Adaptability

Selectable plug or socket outlet
Easy indoor and outdoor installation

High Efficiency

Capable of 100% green energy
Maximizes surplus green energy utilization in a zero-export system

Assured Safety

Current leakage protection (30mA AC & 6mA DC)
Smart dynamic load balance control

Intelligent Design

Smart RFID management function
Smart APP remote control

Product Parameters

X1-EVC-7.2K
X3-EVC-11K
X3-EVC-22K

X1-EVC-7.2K

AC NOMINAL INPUT

Phases/Lines Single phase
Voltage 1 / N / PE, 230 V
AC NOMINAL OUTPUT

Nominal output voltage 1 / N / PE, 230 V
Power 7.2 kW
INTERFACE

Wireless module Wi-Fi 2.4GHz

GENERAL

Charging outlet	Type P (Charging cable with plug) / Type S (Socket-outlet)
Degree of protection	IP65
Cooling method	Natural cooling
Application site	Indoor / Outdoor
Net weight	7 kg (for type S) / 10.5 kg (for type P)
Dimensions (W x H x D)	249 × 370 × 155 mm (for type S) / 265 × 370 × 155 mm (for type P)

X3-EVC-11K

AC NOMINAL INPUT

Phases/Lines Three phase
Voltage 3 / N / PE, 230 / 400 V
AC NOMINAL OUTPUT

Nominal output voltage 3 / N / PE, 230 / 400 V
Power 11 kW
INTERFACE

Wireless module Wi-Fi 2.4GHz

GENERAL

Charging outlet	Type P (Charging cable with plug) / Type S (Socket-outlet)
Degree of protection	IP65
Cooling method	Natural cooling
Application site	Indoor / Outdoor
Net weight	7 kg (for type S) / 10.5 kg (for type P)
Dimensions (W x H x D)	249 × 370 × 155 mm (for type S) / 265 × 370 × 155 mm (for type P)

X3-EVC-22K

AC NOMINAL INPUT

Phases/Lines Three phase
Voltage 3/N/PE, 230 / 400 V
AC NOMINAL OUTPUT

Nominal output voltage 3 / N / PE, 230 / 400 V
Power 22 kW
INTERFACE

Wireless module Wi-Fi 2.4GHz

GENERAL

Charging outlet	Type P (Charging cable with plug) / Type S (Socket-outlet)
Degree of protection	IP65
Cooling method	Natural cooling
Application site	Indoor / Outdoor
Net weight	7 kg (for type S) / 10.5 kg (for type P)
Dimensions (W x H x D)	249 × 370 × 155 mm (for type S) / 265 × 370 × 155 mm (for type P)
