Smart EV Charger

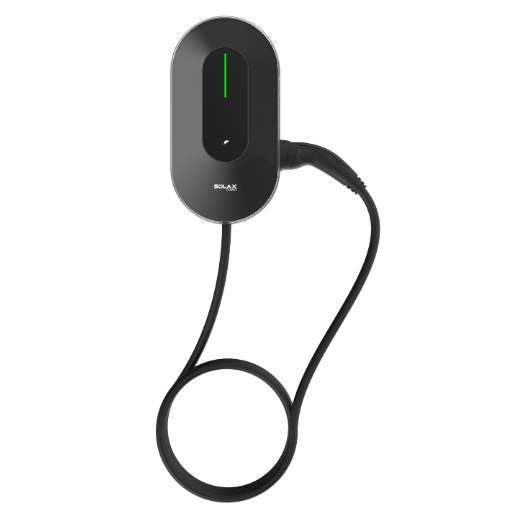

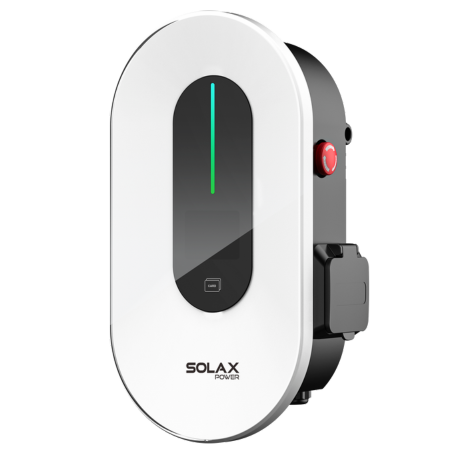

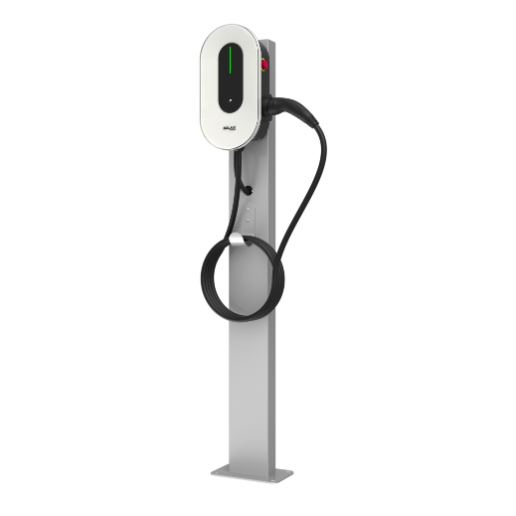

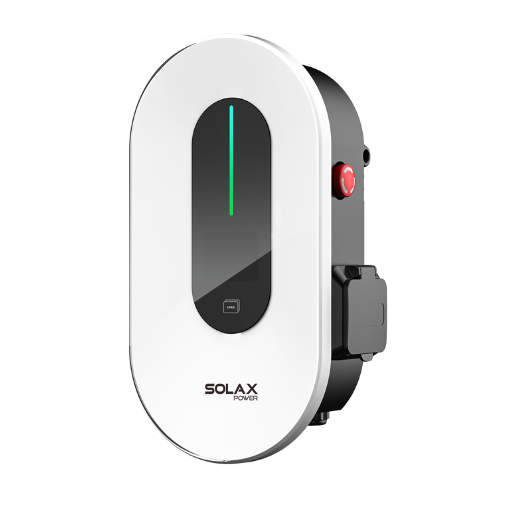

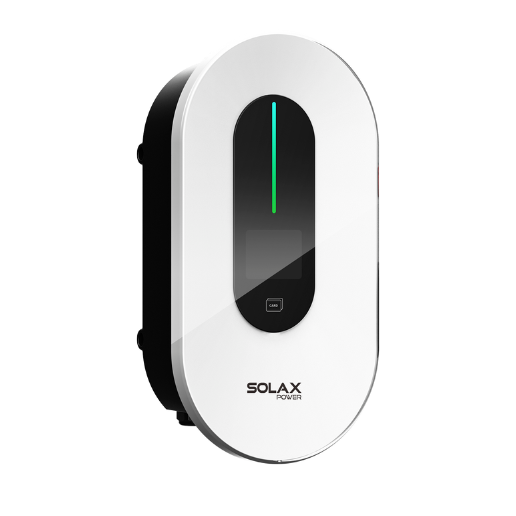

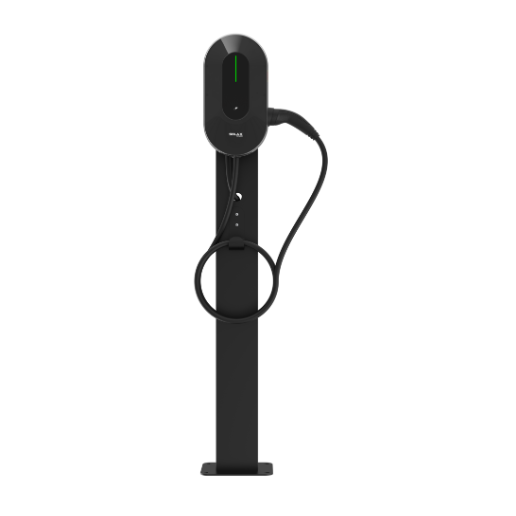

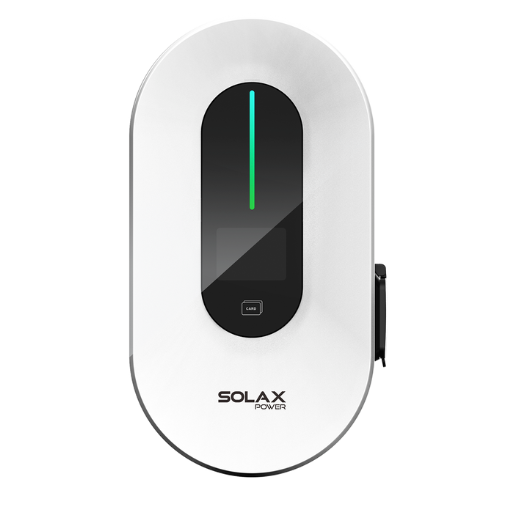

Smart EV Charger G2

4kW/7kW/11kW/22kW

The SolaX Smart EV Charger G2 is a next-generation 7.4kW/22kW charger offering 98% efficiency for fast, energy-saving charging. Featuring dual-mode connectivity (Wi-Fi/4G), it enables remote control via the SolaX Cloud App for scheduling and real-time monitoring. With dynamic load balancing and solar compatibility, it intelligently optimizes power usage while supporting plug-and-charge convenience for a seamless experience.

Watch Video
Data Download

Product Advantage

The G2 model supports 100% green energy charging and automatic switching between single and three-phase power. It maximizes surplus energy utilization within zero-export systems, making it a future-ready solution for sustainable EV infrastructure.

Flexible Adaptability

Selectable plug or socket outlet
Easy indoor and outdoor installation
Supports multiple communication protocols

High Efficiency

Capable of 100% green energy
Automatic switch between one and three phases
Maximizing surplus green energy utilization in a zero-export system

Assured Safety

Current leakage protection (30mA AC & 6mA DC)
Smart dynamic load balance control

Intelligent Design

Smart RFID management function
Smart APP remote control

Product Parameters

X1-HAC-4
X1-HAC-7
X1-HAC-11
X3-HAC-22

X1-HAC-4

AC NOMINAL INPUT

Voltage 230 V
Grouding type TN, TT, IT
AC NOMINAL OUTPUT

Power 1.4~ 4.6 kW
INTERFACE

Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2

GENERAL

Charging outlet	Type2 plug/Type2 socket (lEC 62196)
Degree of protection	IP65 (plug type) /lP54 (socket type) IK10 (housing)/lK08 (screen)
Cooling method	Nature cooling
Application site	Indoor / Outdoor
Net weight	5 kg for plug type
Dimensions (W x H x D)	206 x390x139 mm

X1-HAC-7

AC NOMINAL INPUT

Voltage 230 V
Grouding type TN, TT, IT
AC NOMINAL OUTPUT

Power 1.4~7.2 kW
INTERFACE

Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2

GENERAL

Charging outlet	Type2 plug/Type2 socket (lEC 62196)
Degree of protection	IP65 (plug type) /lP54 (socket type) IK10 (housing)/lK08 (screen)
Cooling method	Nature cooling
Application site	Indoor / Outdoor
Net weight	3 kg for socket type 5 kg for plug type
Dimensions (W x H x D)	206 x390x139 mm

X1-HAC-11

AC NOMINAL INPUT

Voltage 400 V
Grouding type TN, TT, IT
AC NOMINAL OUTPUT

Power 1.4~11 kW
INTERFACE

Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2

GENERAL

Charging outlet	Type2 plug/Type2 socket (lEC 62196)
Degree of protection	IP65 (plug type) /lP54 (socket type) IK10 (housing)/lK08 (screen)
Cooling method	Nature cooling
Application site	Indoor / Outdoor
Net weight	3 kg for socket type 6.5 kg for plug type
Dimensions (W x H x D)	206 x390x139 mm

X3-HAC-22

AC NOMINAL INPUT

Voltage 400 V
Grouding type TN, TT, IT
AC NOMINAL OUTPUT

Power 1.4~22 kW
INTERFACE

Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2

GENERAL

Charging outlet	Type2 plug/Type2 socket (lEC 62196)
Degree of protection	IP65 (plug type) /lP54 (socket type) IK10 (housing)/lK08 (screen)
Cooling method	Nature cooling
Application site	Indoor / Outdoor
Net weight	3 kg for socket type 6.5 kg for plug type
Dimensions (W x H x D)	206 x390x139 mm
