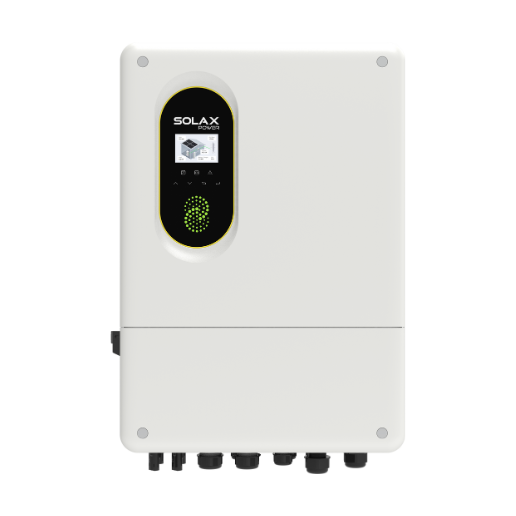

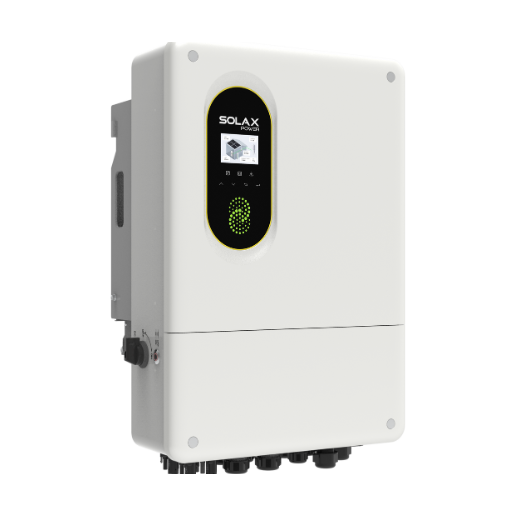

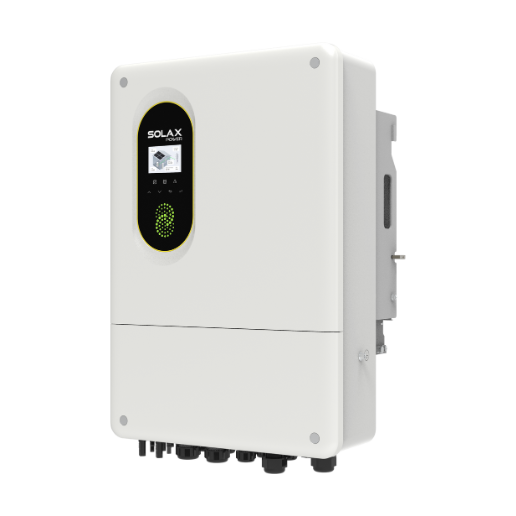

Hybrid Inverter
X3-NEO-LV
-
5.0kW / 8.0kW / 10.0kW / 12.0kW / 15.0kW
The X3-NEO-LV suppors parallel on-grid and off-grid operation—up to 3 units. Its microgrid and generator compatibility ensures seamless integration across various energy environments, while the 36A DC input per MPPT maximizes compatibility with high-power solar panels.
-
Watch Video
Product Advantage
It delivers up to 200% PV oversizing and 110% AC output, ensuring high efficiency and flexibility. The X3-NEO-LV offers IP65 protection, built-in SPD, and optional AFCI for safety. Economically, it supports high-power solar panels with low startup voltage for extended operation.
Max. 3pcs parallel for on-grid and off-grid*
Microgrid and generator function for versatile operations
Max. 36A DC input per MPPT, optimized for high-power solar panel
Single unit UPS-level switchover time<3 ms
Dedicated load interface for intelligent load management
Global MPP scan for optimal energy harvest
200% PV oversizing and up to 110% AC output
200% peak EPS power for 10 s
Max. 300A charging / discharging current
Low start-up voltage for longer operation
Battery terminal temperature detection
IP65 protection degree
Type II SPD on AC&DC side
Optional AFCI protection*
Product Parameters
-
X3-NEO-5K-LV-
PV INPUT
Max. recommended PV array power 10 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (1 / 1) Max. input current per MPPT 18 A / 18 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 5 kW Nominal AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <3 ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
-
-
X3-NEO-8K-LV
-
PV INPUT
Max. recommended PV array power 16 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (1 / 1) Max. input current per MPPT 18 A / 18 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 8 kW Nominal AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <3 ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
-
-
X3-NEO-10K-LV
-
PV INPUT
Max. recommended PV array power 20 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (2 / 1) Max. input current per MPPT 36 A / 18 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 10 kW Nominal AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <3 ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
-
-
X3-NEO-12K-LV
-
PV INPUT
Max. recommended PV array power 24 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (2 / 2) Max. input current per MPPT 36 A / 36 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 12 kW Nominal AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <3 ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
-
-
X3-NEO-15K-LV
-
PV INPUT
Max. recommended PV array power 30 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (2 / 2) Max. input current per MPPT 36 A / 36 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 15 kW Nominal AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <3 ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
-
