Hybrid Inverter for America

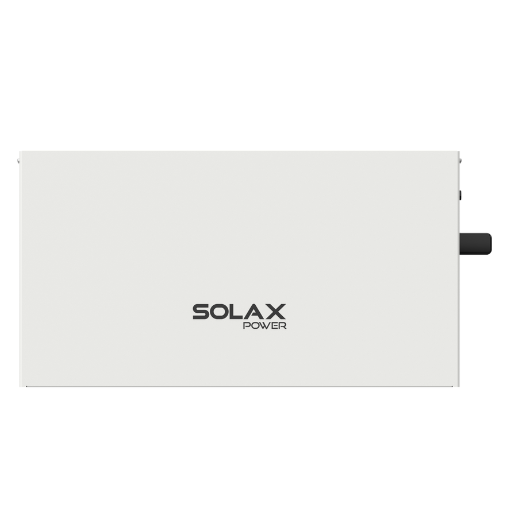

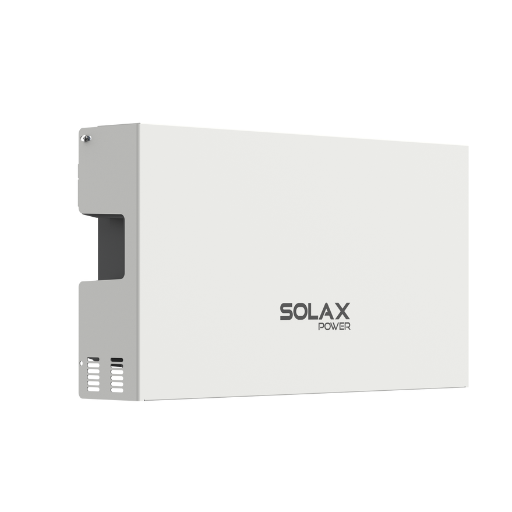

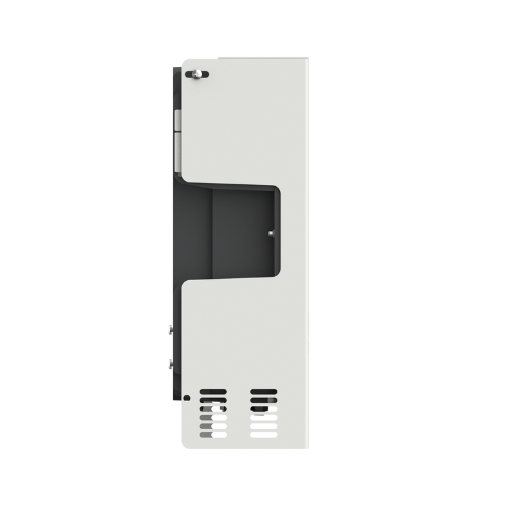

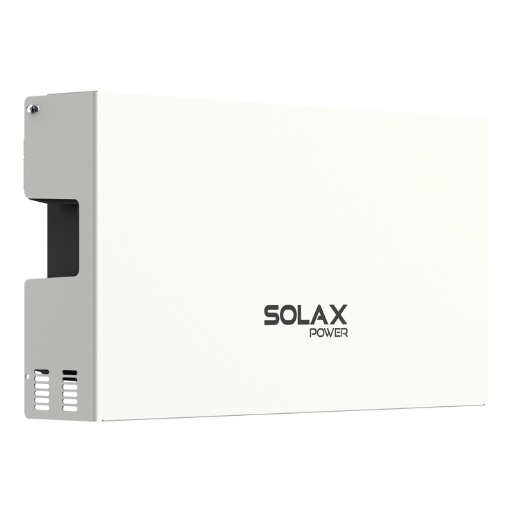

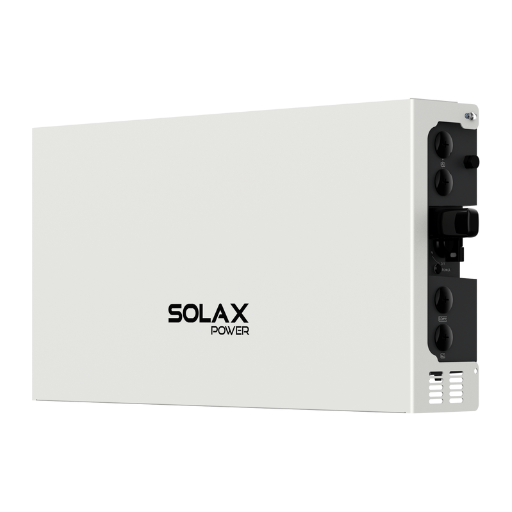

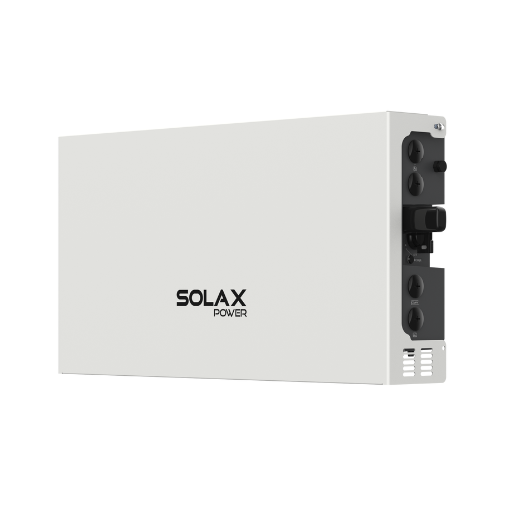

A1 HYBRID G2

3.8kW / 5kW / 6kW / 7.6kW

The SolaX A1 HYBRID G2, designed specifically for the U.S. market, combines seamlessly with T-BAT-SYS-HV-5.0 battery modules to form an integrated energy storage system. Up to 4 units can be connected in parallel, enabling flexible system scaling and delivering up to 80kWh of total storage capacity for extended energy use.

Watch Video
Data Download

Product Advantage

The residential ESS features multiclass load management, intelligently prioritizing critical home loads to optimize energy use. Its automatic black start capability allows the system to restore power independently without relying on the grid.

High Performance

200% PV oversize, 15.2kWdc
3 strings MPPT
150% Max. MPPT power
16A Max. input current
100% backup power with grid-tie
Built-in RGM meter
Up to 4 inverter parallel
Peak efficiency(PV-GRID): 98%

Product Parameters

A1-HYB/AC-3.8k-G2
A1-HYB/AC-5.0k-G2
A1-HYB/AC-6.0k-G2
A1-HYB/AC-7.6k-G2

A1-HYB/AC-3.8k-G2
- INPUT PV (HYB only)

  Maximum recommended PV power [W]
  7600
  MPPT voltage range[V]
  90 ~ 500
  No. of MPP trackers, Strings per MPP tracker 2, 1 / 1
  Maximum input current [A] A: 16 / B: 16
- GENERAL

  Dimensions (W x H x D) [in / mm]
  33.5 × 17.9 × 5.8 / 850 × 455 × 148
  Weight [lb / Kg]
  75 / 34
A1-HYB/AC-5.0k-G2
- INPUT PV (HYB only)

  Maximum recommended PV power [W]
  10000
  MPPT voltage range[V]
  90 ~ 500
  No. of MPP trackers, Strings per MPP tracker 2, 1 / 1
  Maximum input current [A] A: 16 / B: 16
- GENERAL

  Dimensions (W x H x D) [in / mm]
  33.5 × 17.9 × 5.8 / 850 × 455 × 148
  Weight [lb / Kg]
  75 / 34
A1-HYB/AC-6.0k-G2
- INPUT PV (HYB only)

  Maximum recommended PV power [W]
  10000
  MPPT voltage range[V]
  90 ~ 500
  No. of MPP trackers, Strings per MPP tracker 2, 1 / 1
  Maximum input current [A] A: 16 / B: 16
- GENERAL

  Dimensions (W x H x D) [in / mm]
  33.5 × 17.9 × 5.8 / 850 × 455 × 148
  Weight [lb / Kg]
  75 / 34
A1-HYB/AC-7.6k-G2
- INPUT PV (HYB only)

  Maximum recommended PV power [W]
  15200
  MPPT voltage range[V]
  90 ~ 500
  No. of MPP trackers, Strings per MPP tracker 3, 1 / 1 / 1
  Maximum input current [A] A: 16 / B: 16 / C: 16
- GENERAL

  Dimensions (W x H x D) [in / mm]
  33.5 × 17.9 × 5.8 / 850 × 455 × 148
  Weight [lb / Kg]
  75 / 34
