Monitoring Device

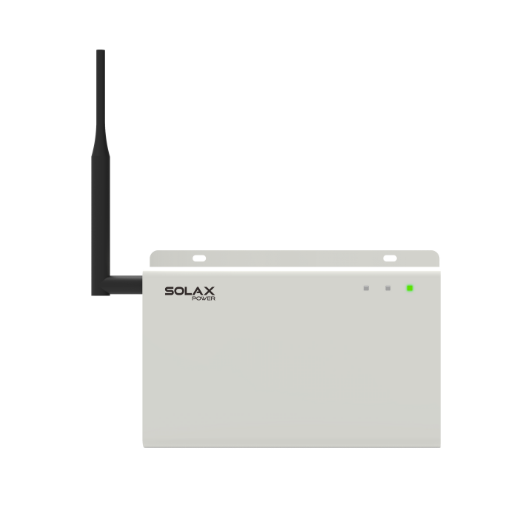

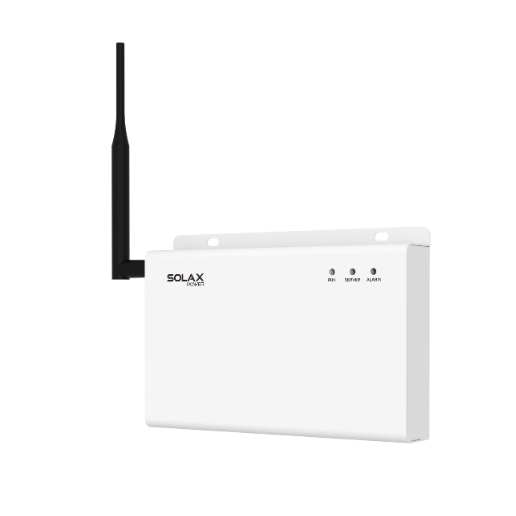

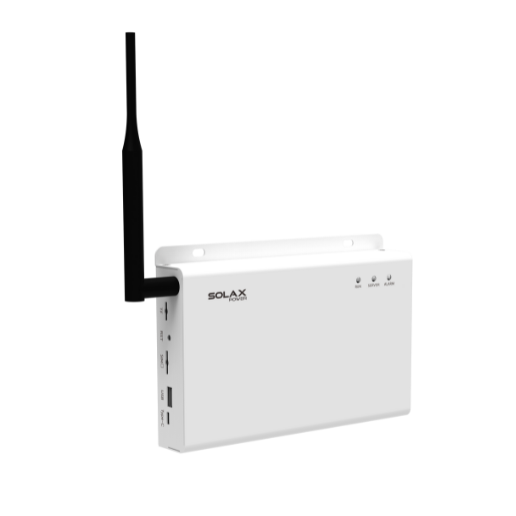

DataHub 1000
-
DataHub1000
The DataHub1000 is purpose-built for centralized monitoring and control of batch inverters. Its sleek, compact design integrates WiFi connectivity, multiple communication interfaces (RS485, CAN, Ethernet), and support for up to 60 devices.
-
Watch Video
Product Advantage
Its local and remote configuration capabilities, combined with 5-minute data transfer intervals and dry contactor input/output support, make it a reliable solution for smart grid integration and high-efficiency solar infrastructure.
Smart Schedule & Smart Scene AI-driven smart energy management
Local & Remote monitoring, setting, and upgrade of batch inverters
Intelligent export control, DRM control, and ripple control, etc., of batch inverters
Support large-capacity data storage
Product Parameters
-
DataHub 1000-
MECHANICAL DATA
Dimensions(W × H × D) 205 x 124 x 33 mm Weight 410 g Operating temperature range -20 ~ +60°C Degree of protection IP21 -
COMMUNICATION
Wireless module Wi-Fi 2.4GHz Ethernet 10/100M Interface RS485 x 4, CAN x 1, Ethernet x1 Dry contactor AI x 2, DI x 4, DO x 4 Data transfer interval 5 mins Manage device quantity 60
-
Data Download
-
Datasheet
-
User Manual
-
Quick Installation Guide
-
Declaration
-
Certification
-
File nameLanguageFormatSizeLast updateddownload
