Monitoring Device

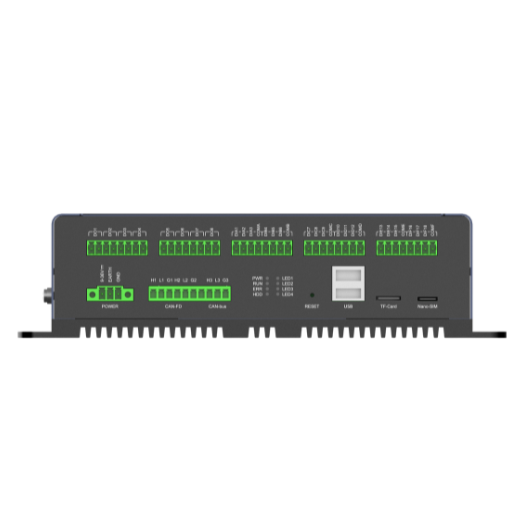

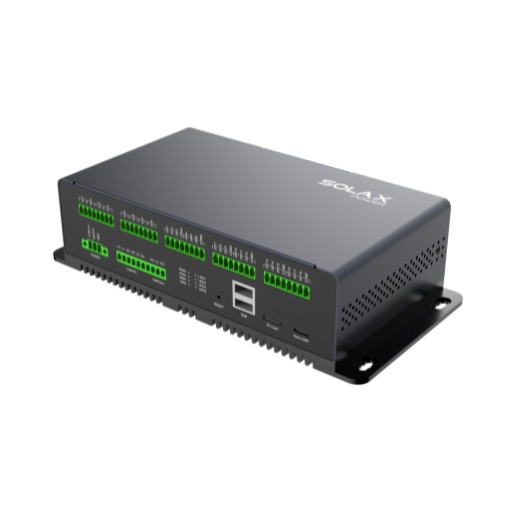

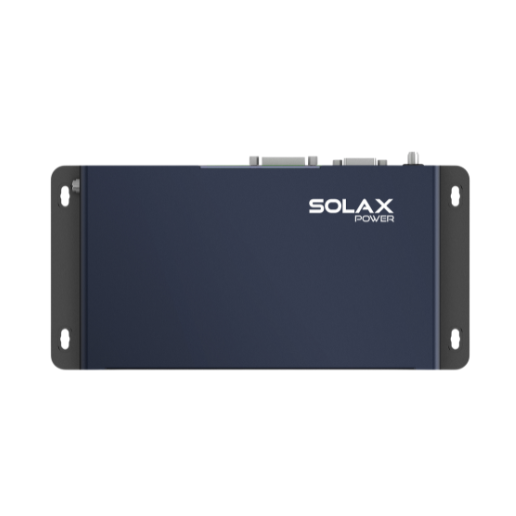

EMS1000
-
Use In C&I Energy Storage / Solar Power Stations
The SolaX EMS1000 is designed for use in industrial and commercial energy storage and solar power stations, supports fault recording and retrieval, parallel energy control, and intelligent output management.
Product Advantage
With secondary data storage and local storage capabilities, it ensures reliable data retention for up to one year. SolaX EMS1000 also offers an efficient O&M experience with a built-in web interface, local monitoring, remote access, and cell-level data collection and monitoring.
Built-in web interface
Supportlocalmonitoring and remote access
Cell-leveldata collection and monitoring
Supports fault recording and second-level fault data retrieval
Support multi-deviceparallel energy control and intelligent output control
Support second-leveldata storage and local storage up to 1 year
Product Parameters
-
EMS1000-
MECHANICAL DATA
Dimensions (W × H × D) [mm] 232*113.2*59 Weight [g] 1400 Installation Method DIN-rail Mounting, Wall Mounting -
SOLAXCLOUD COMMUNICATION
WAN NET4, 10M/100M/1000M 4G CAT4 SIM Card Size Nano - 4FF, 12.3mm*8.8mm; Class C,1.8V Sample Rate Per 10 seconds，2G Data Package -
COMPLIANCE
Compliance CE, RCM. SRRC
-
