Residential Batteries
T-BAT H 3.0 V2
-
3.1 kWh-12.3 kWh
The T-BAT-SYS-HV-3.0 integrates with the X1-Hybrid G4 and the Matebox to create X-ESS G4, an All-In-One energy storage system. With a flexible capacity from 3.1 kWh to 12.3 kWh and an IP65-rated enclosure, it’s well-suited for both indoor and outdoor installations, including floor mounting.
Product Advantage
The T-BAT-SYS-HV-3.0 uses safe LFP battery cells and high-performance processors to ensure stable, long-term operation. It meets international safety standards with certifications including CE and UN38.3, backed by smart features like remote diagnostics and low-temperature battery heating.
Compatible with BMS-Parallel Box-II G2, up to 2 towers of batteries

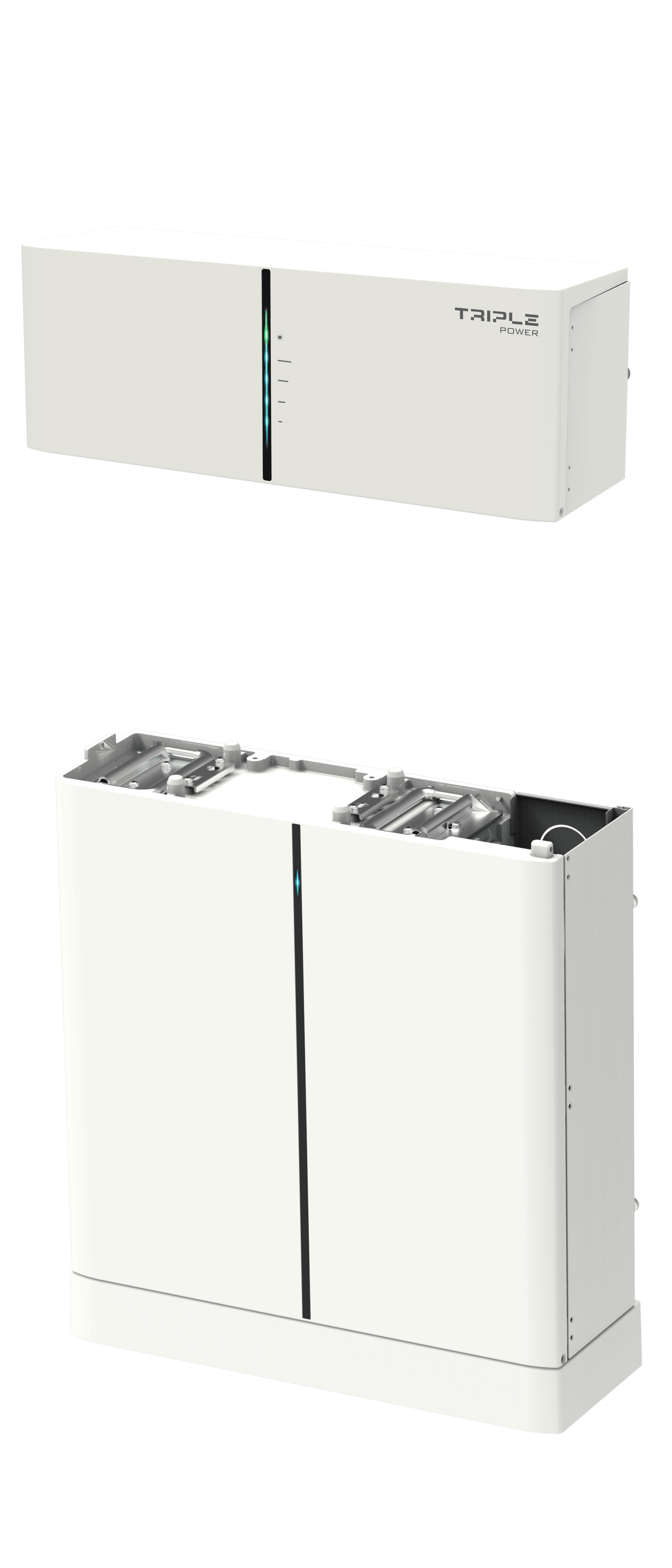

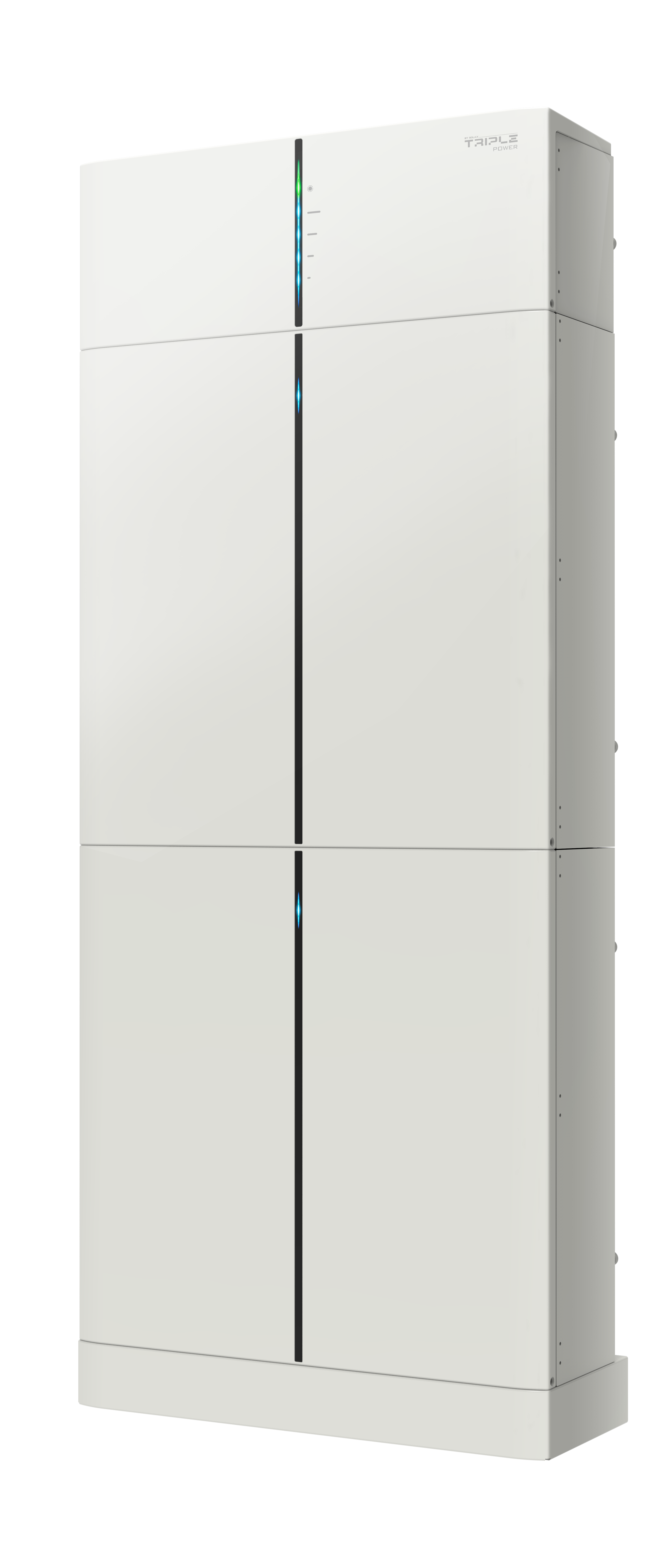

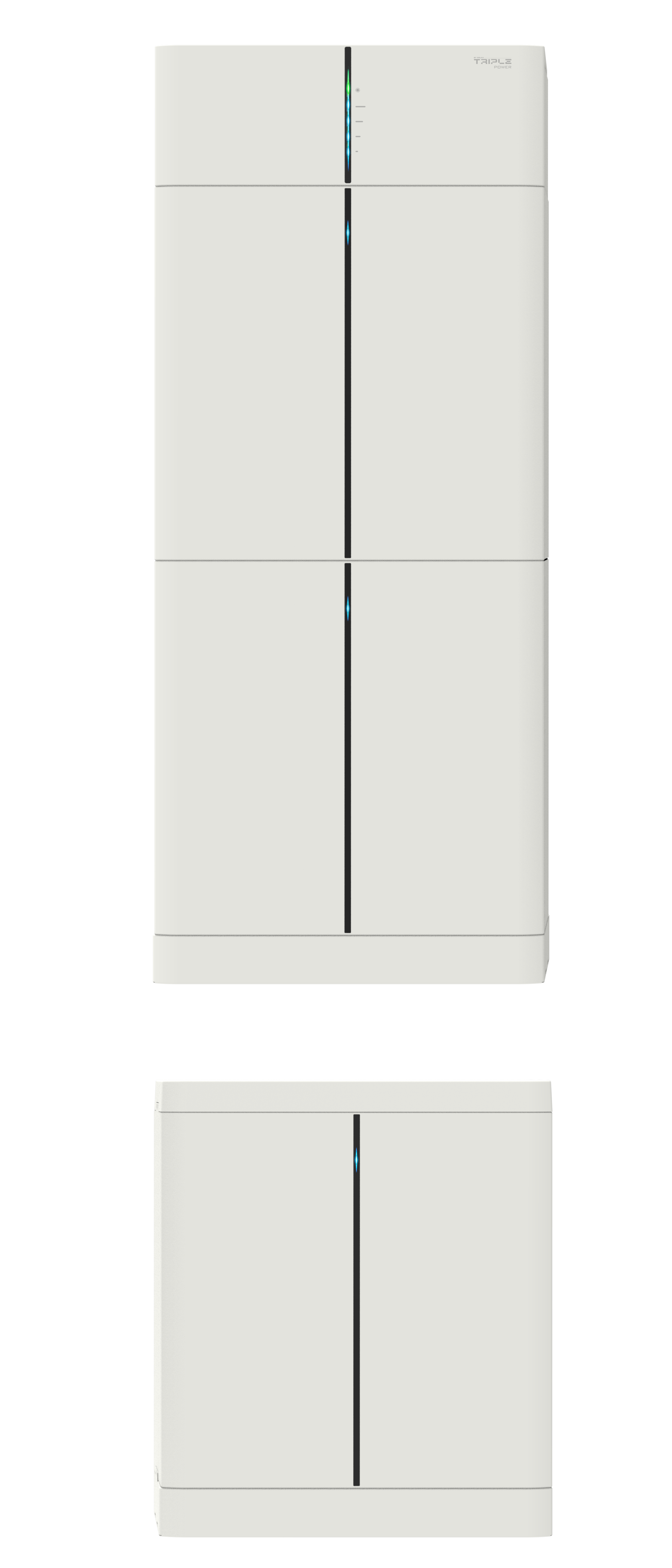

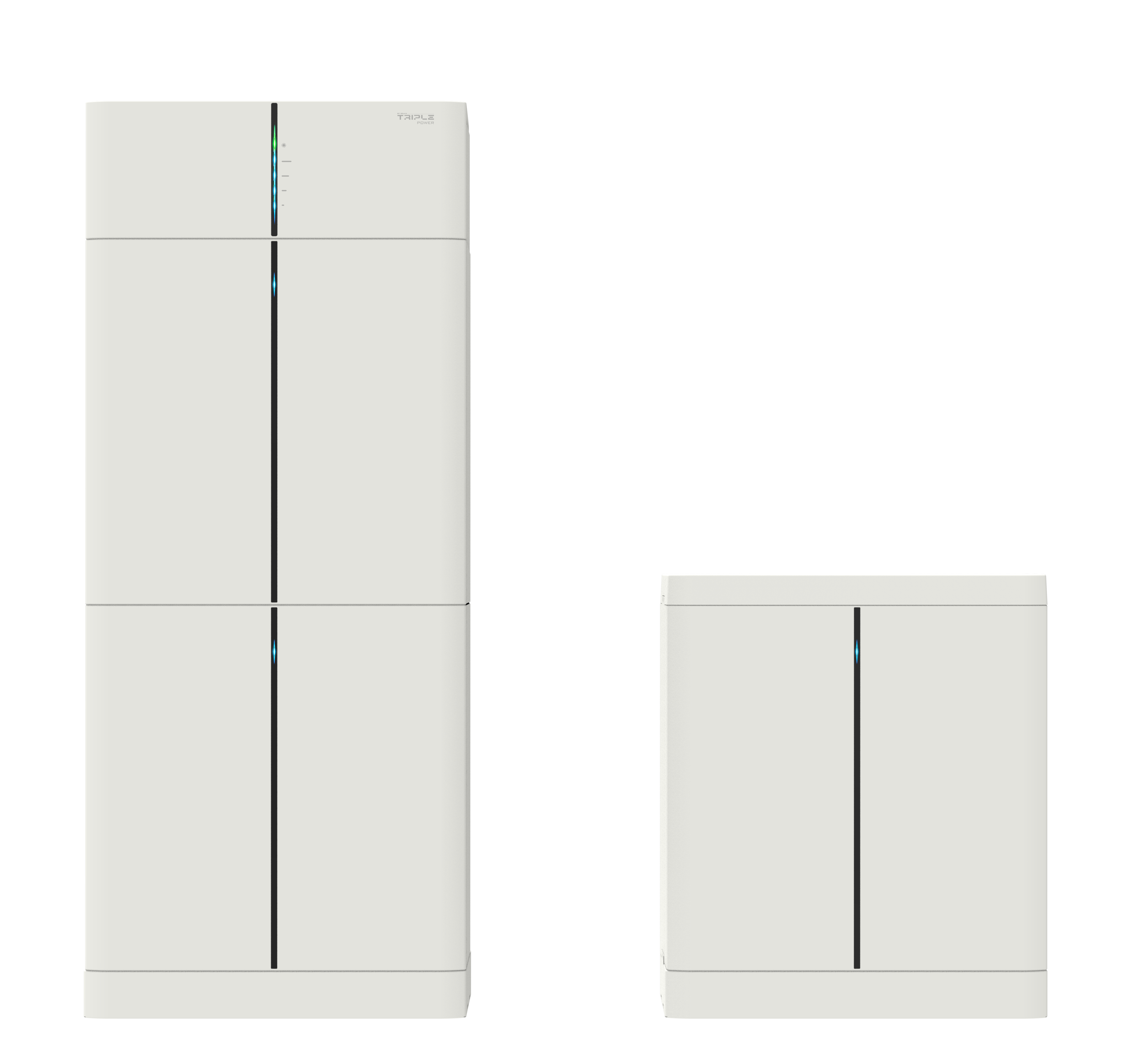

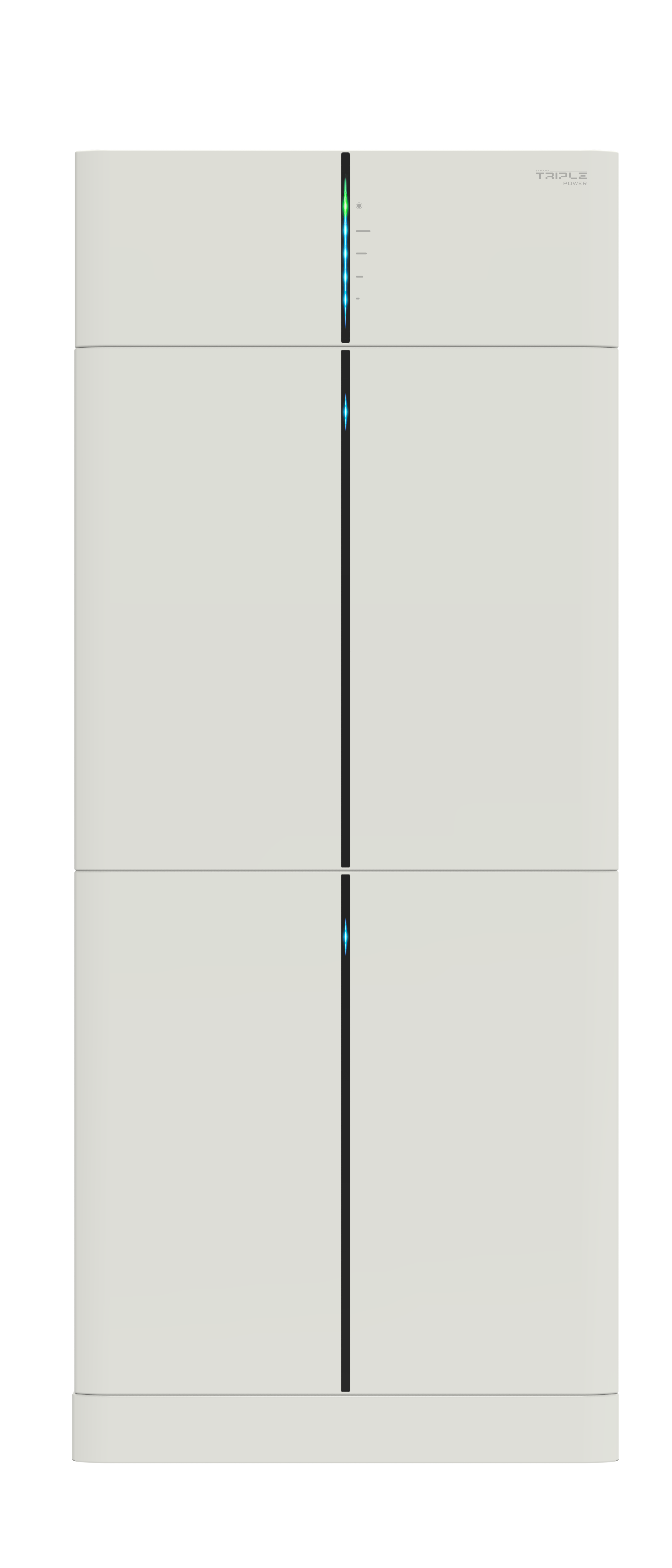

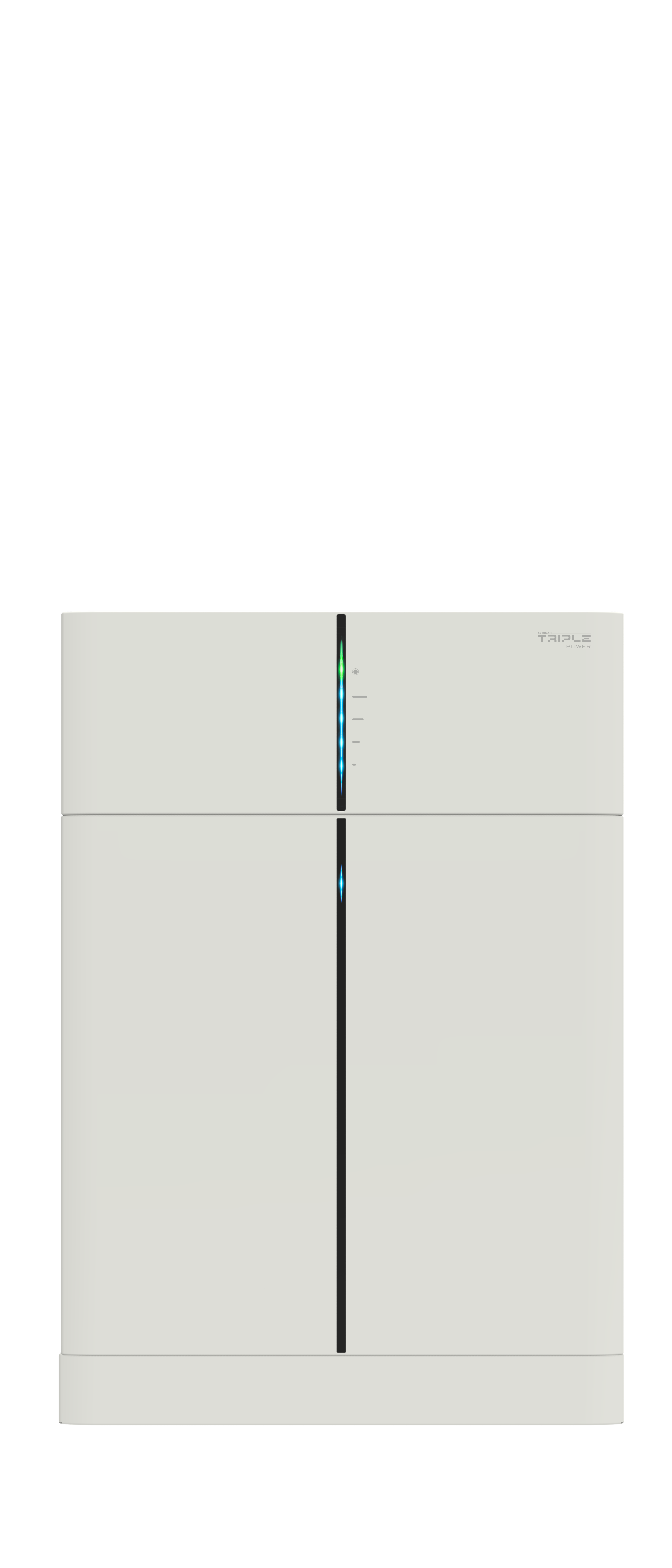

Stackable modules, supporting floor mounting
Remote fault diagnosis, upgrade and maintenance
Unique battery heating tech for low-temperature operation
LFP battery cell & high-performance processors
Safety Certifications: CE, UN38.3, etc
IP65 Ingress protection
Cycle life > 6000 Cycles
High capacity utilization
Efficient energy transfer
Product Parameters
-
T-BAT H 3.0, T-BAT H 3.0 V2-
GENERAL
Rated voltage 102.4 V Rated capacity 30 Ah Rated power 2.5 kW Dimensions (W x H x D) MC0600: 482.5 ×173.5 × 153 mm
HV10230: 482.5 × 471.5 × 153 mm
Net Weight MC0600: 7.5 kg
+ HV10230: 34.5 kg
-
BATTERY MODULE
Max Charge / Discharge current 30 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 6.0, T-BAT H 6.0 V2
-
GENERAL
Rated voltage 204.8 V Rated capacity 30 Ah Rated power 5.1 kW Dimensions (W x H x D) MC0600: 482.5 ×173.5 × 153 mm
HV10230: 482.5 × 471.5 × 153 mm
Net Weight MC0600: 7.5 kg
+ 2 × HV10230: 69 kg
-
BATTERY MODULE
Max Charge / Discharge current 30 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 9.0, T-BAT H 9.0 V2
-
GENERAL
Rated voltage 307.2 V Rated capacity 30 Ah Rated power 7.6 kW Dimensions (W x H x D) MC0600: 482.5 ×173.5 × 153 mm
HV10230: 482.5 × 471.5 × 153 mm
Net Weight MC0600: 7.5 kg
+ 3 × HV10230: 103.5 kg
-
BATTERY MODULE
Max Charge / Discharge current 30 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 12.0, T-BAT H 12.0 V2
-
GENERAL
Rated voltage 409.6 V Rated capacity 30 Ah Rated power 10.2 kW Dimensions (W x H x D) MC0600: 482.5 ×173.5 × 153 mm
HV10230: 482.5 × 471.5 × 153 mm
Net Weight MC0600: 7.5 kg
+ 4 × HV10230: 138 kg
-
BATTERY MODULE
Max Charge / Discharge current 30 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
