Residential Batteries

T-BAT-SYS-HV-5.0

T-BAT H 10.0 T-BAT H 15.0 T-BAT H 20.0

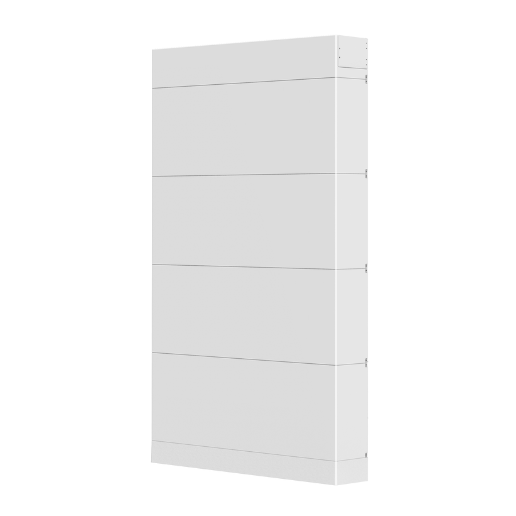

The T-BAT-SYS-HV-5.0 boasts a compact and modular design that fits perfectly into any space. With the ability to be mounted either on the floor or wall, it ensures effortless installation and flexibility in various environments

Data Download

Product Advantage

The T-BAT-SYS-HV-5.0 features cutting-edge technology with a 95% battery roundtrip efficiency. Its robust safety features, including the NEMA 4X protection class and LFP battery type, ensure optimal operation and durability.

Safety

NEMA 4X protection class for reliable operation
Safe LiFePO4 battery type

User Friendly

Compact design for small spaces

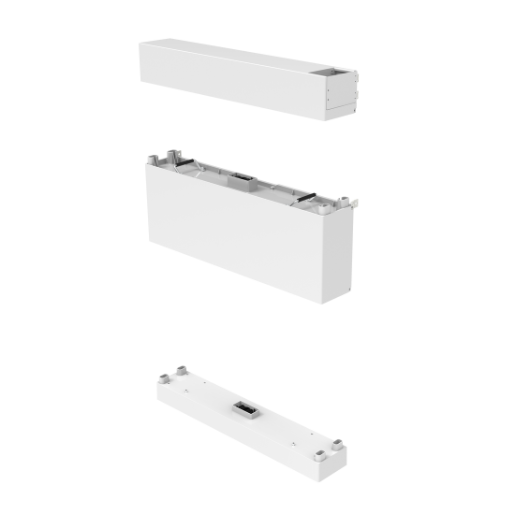

Easy installation with modular stacking

Reliability

Long life cycle
95% battery roundtrip efficiency

Monitoring

Real-time tracking and monitoring
Remote diagnosis and control

Product Parameters

T-BAT H 10.0
T-BAT H 15.0
T-BAT H 20.0

T-BAT H 10.0

GENERAL

Nominal voltage [V]	102.4
Operating voltage range [V]	90 - 116
Total energy [kWh]	10
Dimensions (W x H x D) [in / mm] - TBMS-MC60060 (BMS)	33.5 x 5.2 x 5.8 / 850 x 133 x 148
Dimensions (W x H x D) [in / mm] - TP-HS50 (BAT)	33.5 x 23.6 x 5.8 / 850 x 600 x 148
Dimensions (W x H x D) [in / mm] - Base	33.5 x 3.0 x 5.8 / 850 x 75 x 148
Weight [lb / kg]	TBMS-MCS60060: 22 / 10 + 2*TP-HS50: 238 / 108

BATTERY MODULE

Battery type 100Ah Lithium (LFP)
Maximum charge / discharge current [A] 54
ENVIRONMENTAL REQUIREMENTS

Protection class NEMA 4X
Hazardous materials classification Class 9

T-BAT H 15.0

GENERAL

Nominal voltage [V]	153.6
Operating voltage range [V]	135 - 174
Total energy [kWh]	15
Dimensions (W x H x D) [in / mm] - TBMS-MC60060 (BMS)	33.5 x 5.2 x 5.8 / 850 x 133 x 148
Dimensions (W x H x D) [in / mm] - TP-HS50 (BAT)	33.5 x 35.4 x 5.8 / 850 x 900 x 148
Dimensions (W x H x D) [in / mm] - Base	33.5 x 3.0 x 5.8 / 850 x 75 x 148
Weight [lb / kg]	TBMS-MCS60060: 22 / 10 + 3*TP-HS50: 357 / 162

BATTERY MODULE

Battery type 100Ah Lithium (LFP)
Maximum charge / discharge current [A] 54
ENVIRONMENTAL REQUIREMENTS

Protection class NEMA 4X
Hazardous materials classification Class 9

T-BAT H 20.0

GENERAL

Nominal voltage [V]	204.8
Operating voltage range [V]	180 - 232
Total energy [kWh]	20
Dimensions (W x H x D) [in / mm] - TBMS-MC60060 (BMS)	33.5 x 5.2 x 5.8 / 850 x 133 x 148
Dimensions (W x H x D) [in / mm] - TP-HS50 (BAT)	33.5 x 47.2 x 5.8 / 850 x 1200 x 148
Dimensions (W x H x D) [in / mm] - Base	33.5 x 3.0 x 5.8 / 850 x 75 x 148
Weight [lb / kg]	TBMS-MCS60060: 22 / 10 + 4* TP-HS50: 476 / 216

BATTERY MODULE

Battery type 100Ah Lithium (LFP)
Maximum charge / discharge current [A] 54
ENVIRONMENTAL REQUIREMENTS

Protection class NEMA 4X
Hazardous materials classification Class 9
