Residential Batteries
T-BAT-SYS-HV-5.8
-

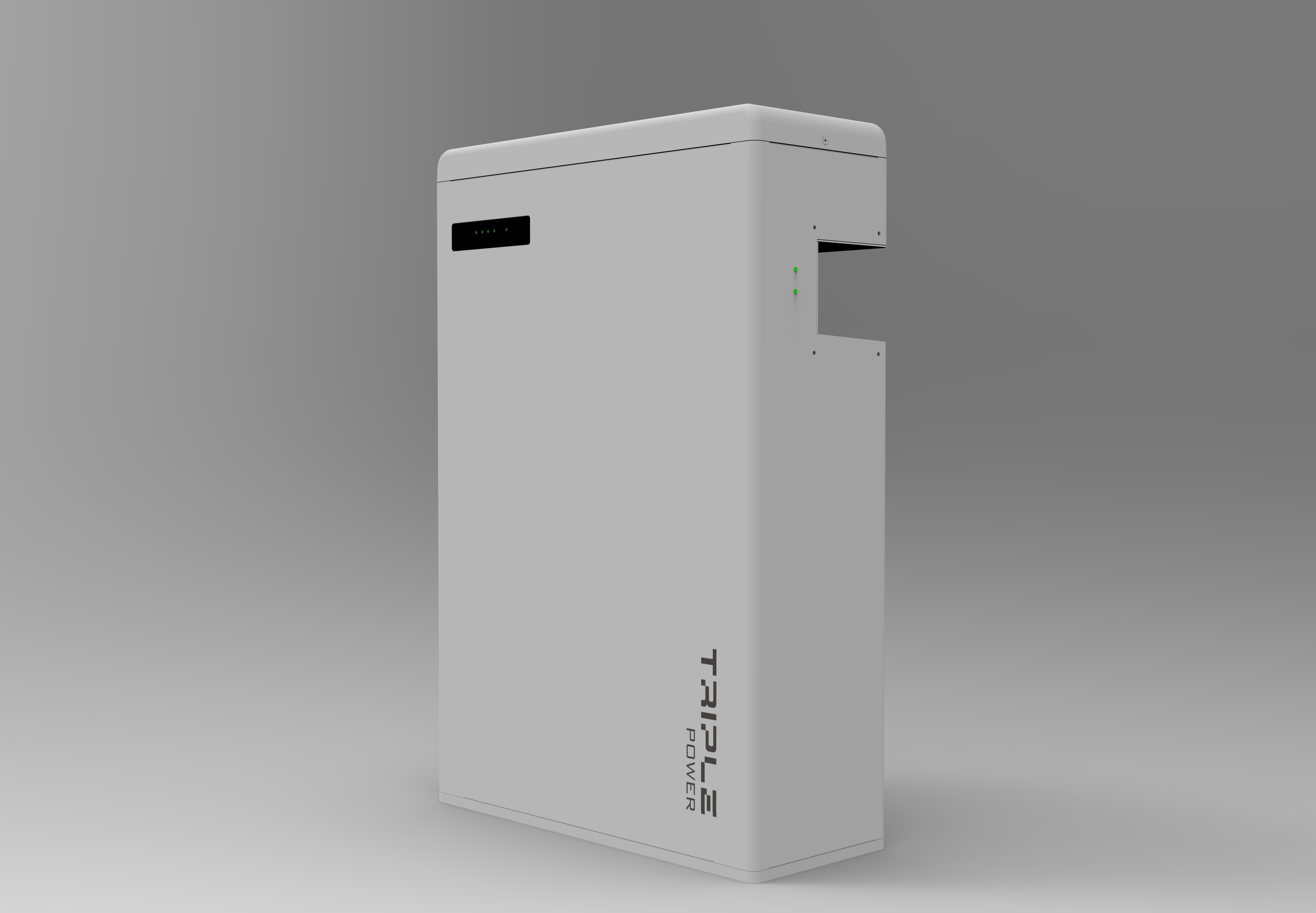

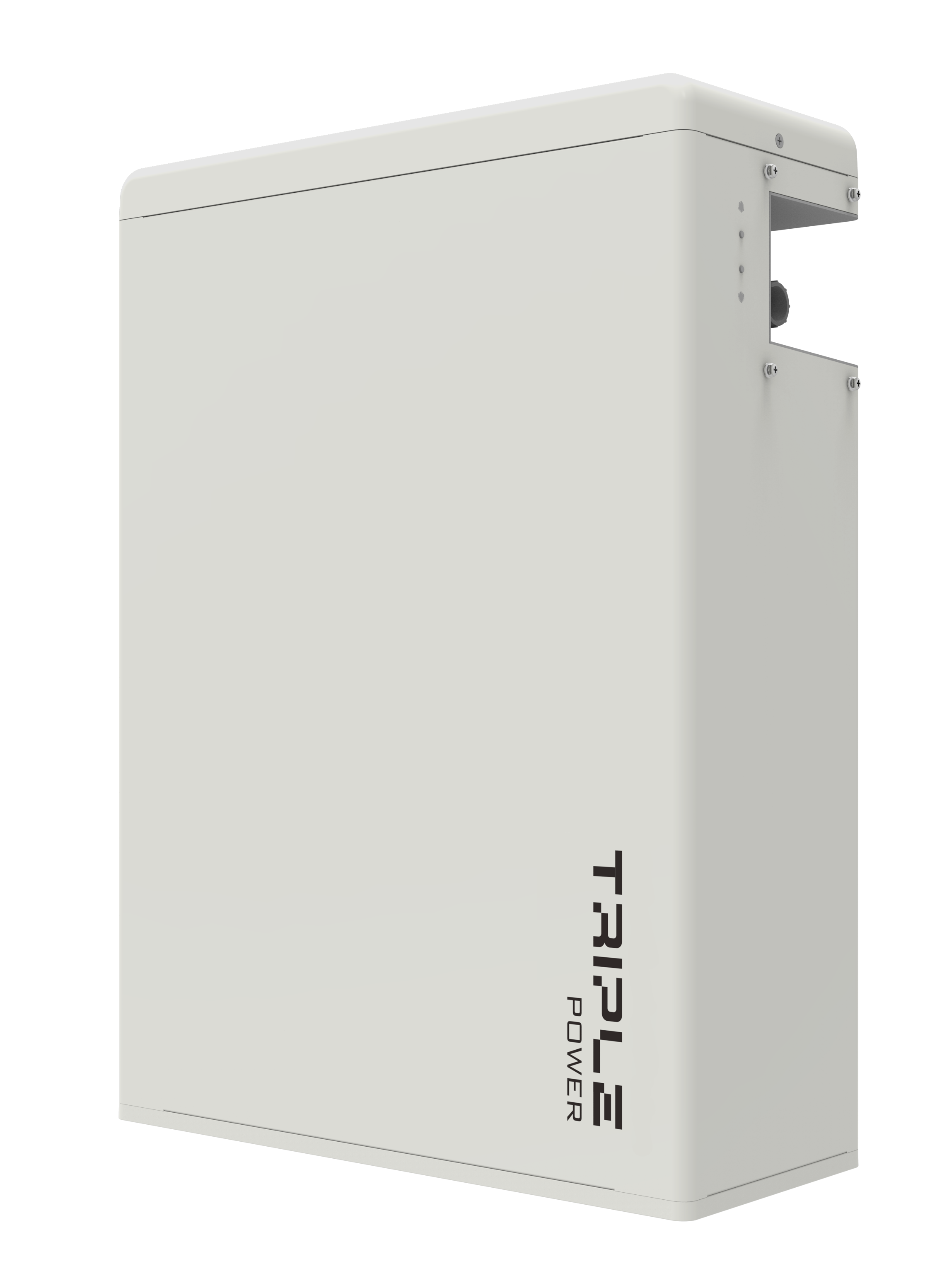

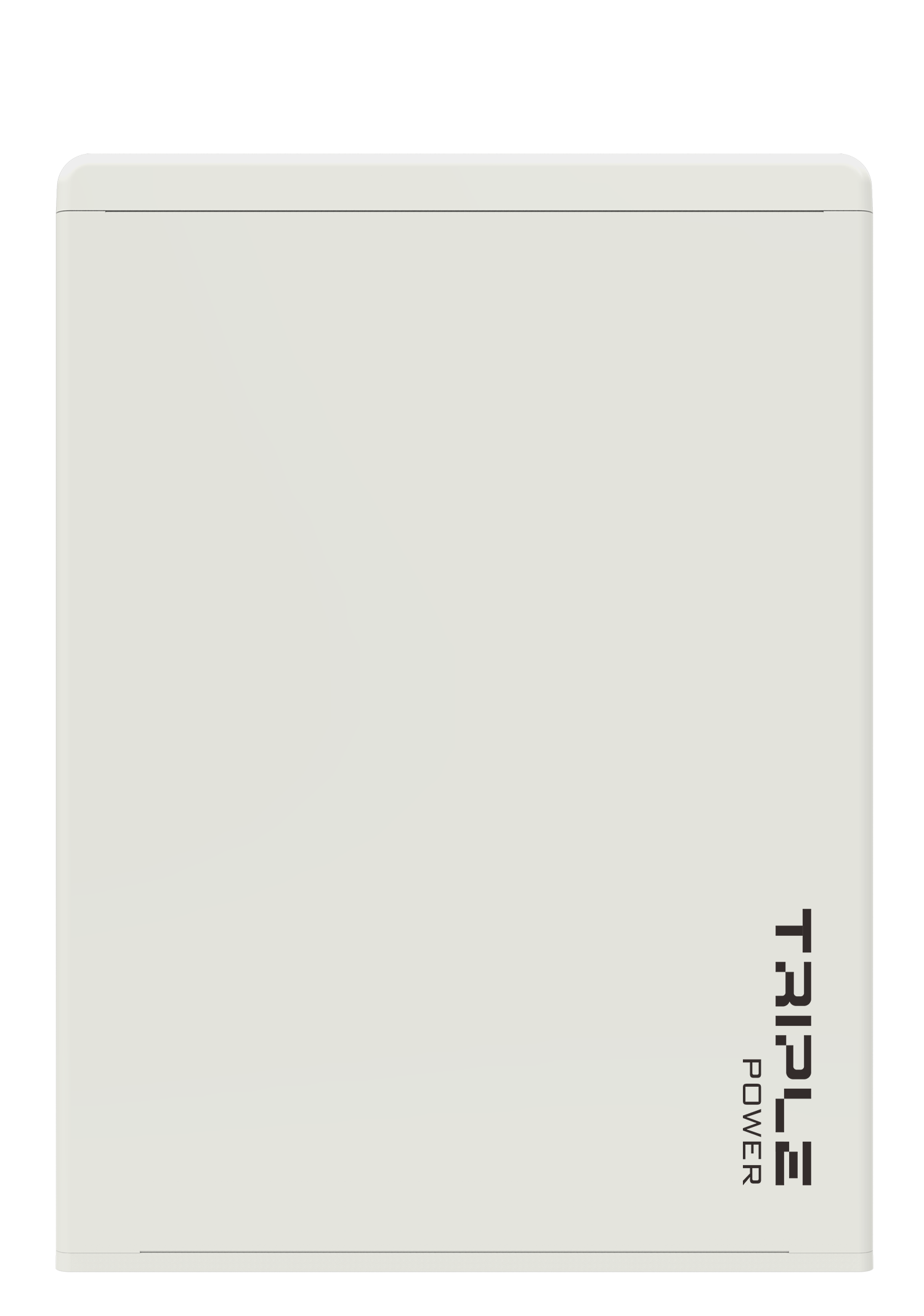

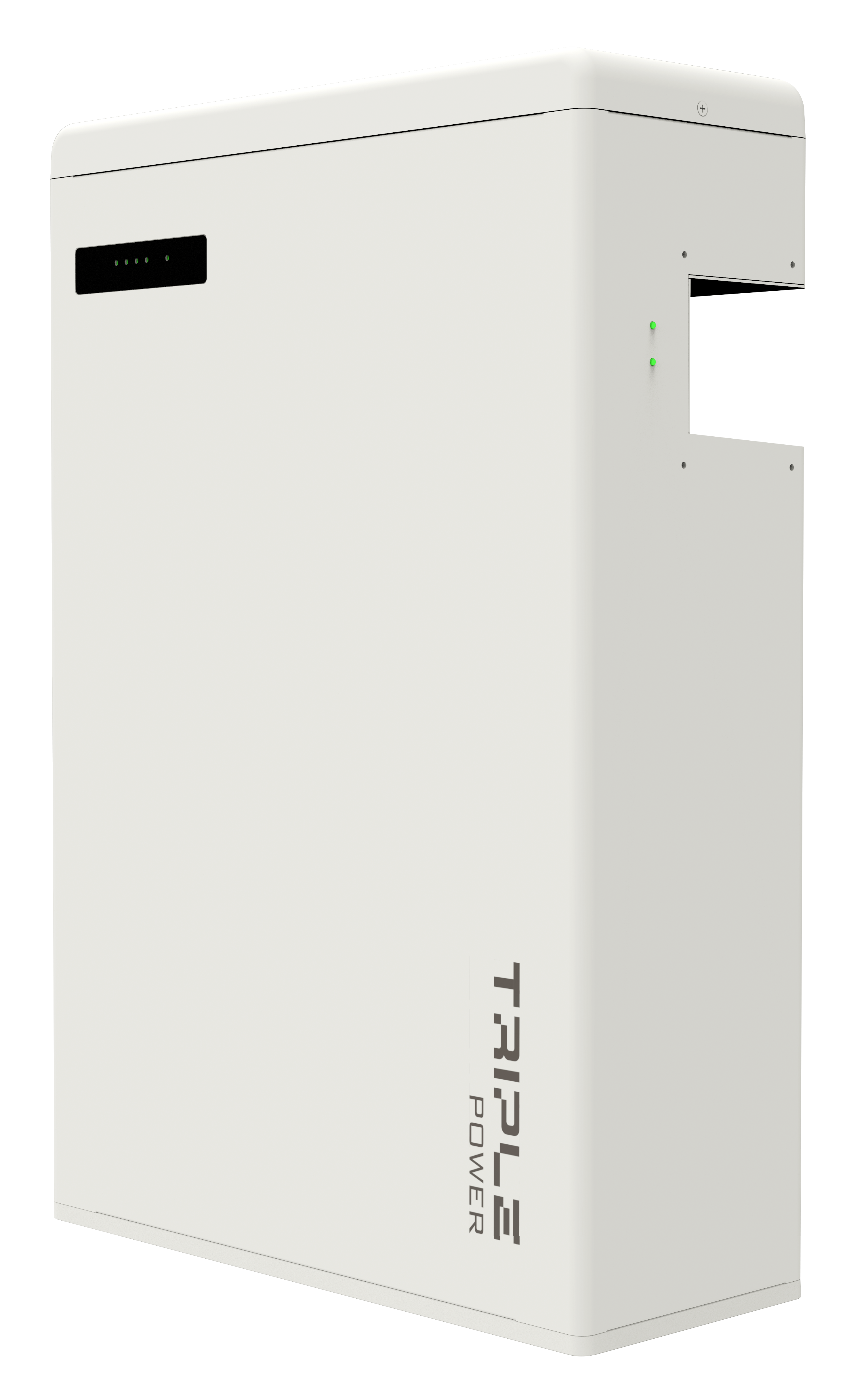

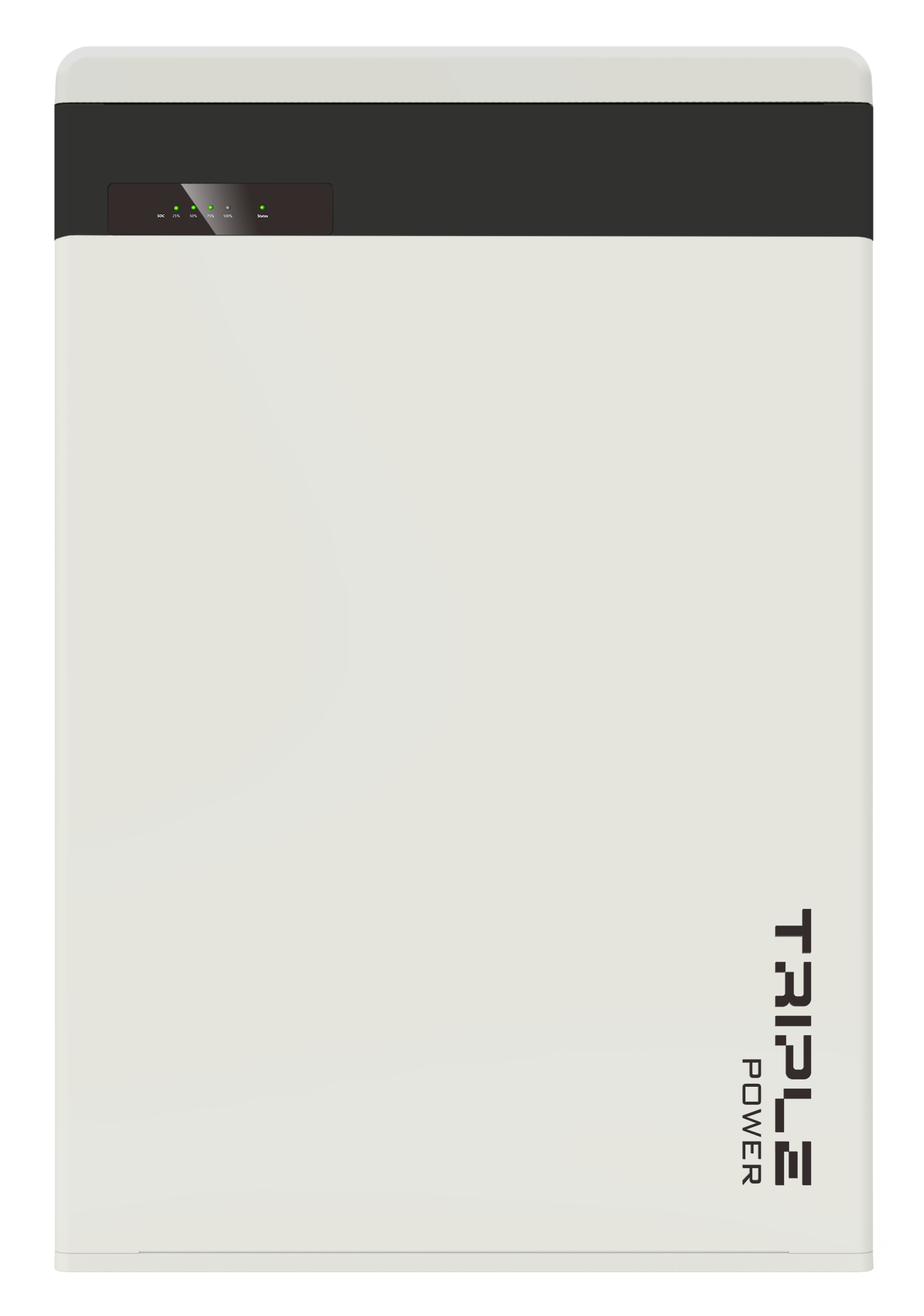

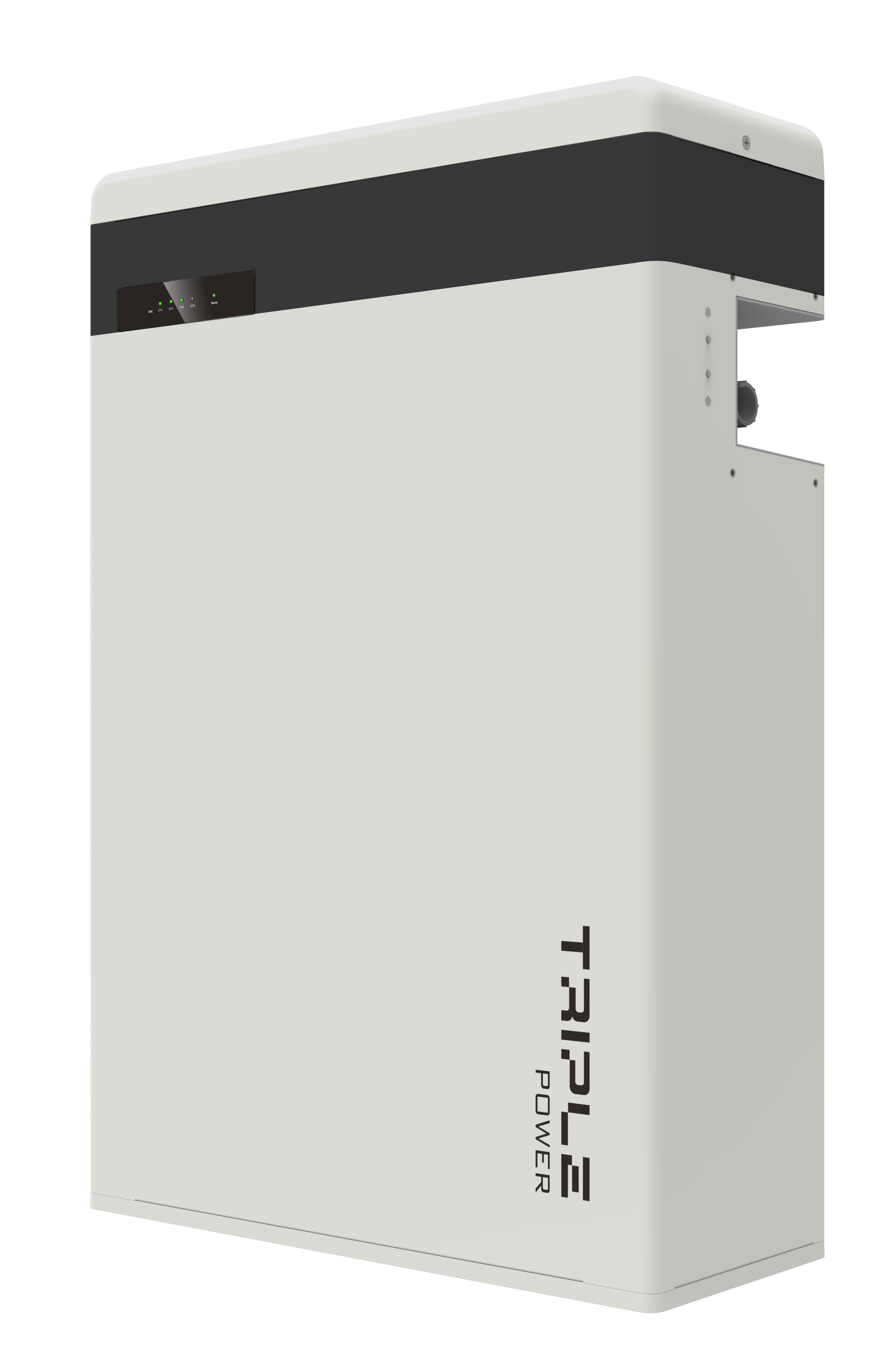

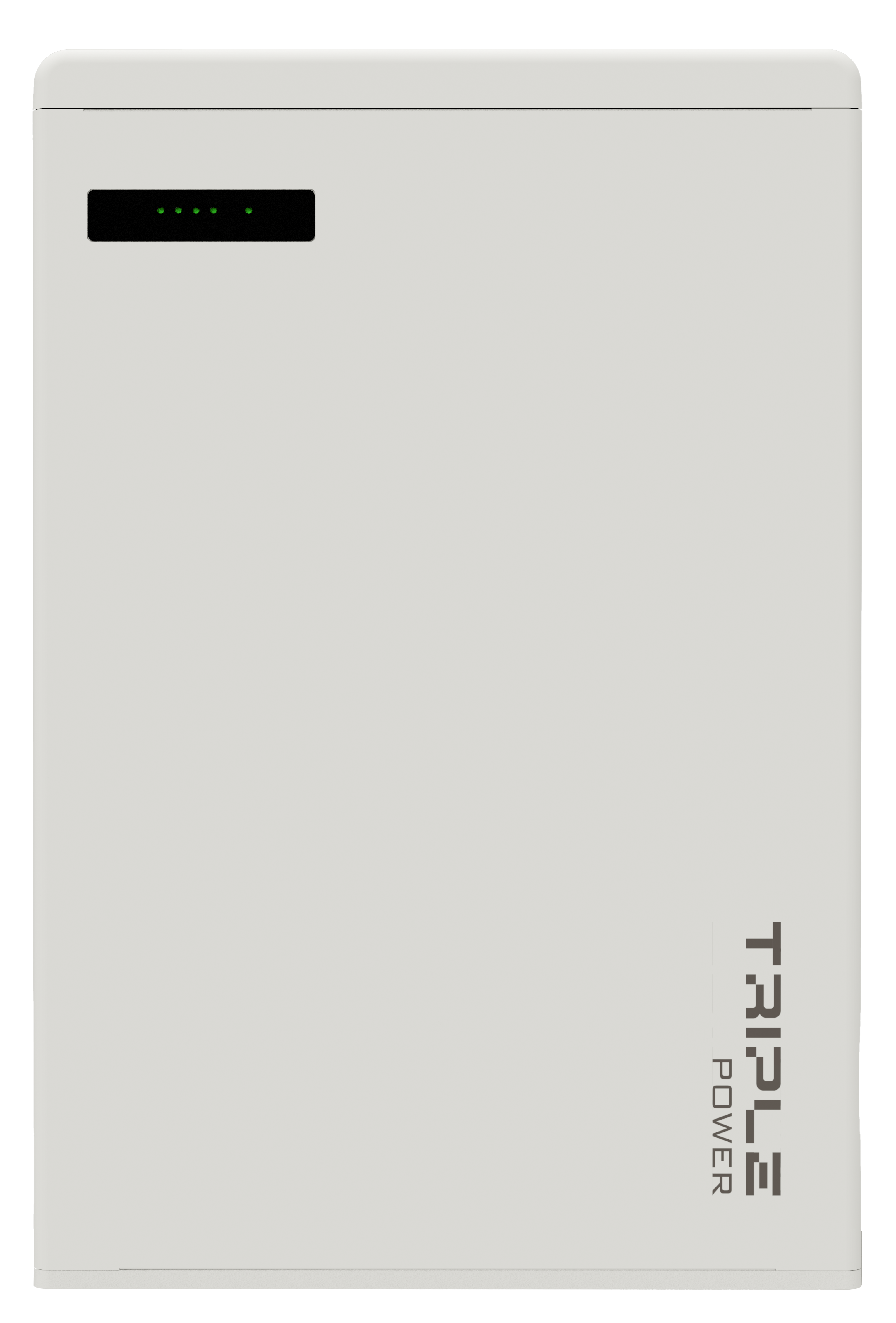

T-BAT H 5.8 (Master) T-BAT H 5.8 V2 (Master) HV11550 / HV11550 V2 (Slave)
The T-BAT-SYS-HV-5.8 offers a flexible installation process with the option to mount the system on the floor or wall, providing convenience for different spaces. Its compact design ensures quick installation and reduced self-consumption, making it an ideal energy storage solution.
-
Watch Video
Product Advantage
The T-BAT-SYS-HV-5.8 delivers impressive depth of discharge (DOD) of up to 90% and a cycle life exceeding 6000 cycles. With an IP65 protection rating, it guarantees reliable operation in harsh conditions, while remaining eco-friendly with no toxic heavy metals or caustic materials.
90% Depth of Discharge (DOD)
Cycle life > 6000 times
LiFePO4 battery cell & high-performance processors
IP65 protection degree
No toxic heavy metals or caustic materials
Remote fault diagnosis, upgrade and maintenance
Floor or wall mounting optional
Product Parameters
-
T-BAT H 5.8, T-BAT H 5.8 V2-
GENERAL
Nominal voltage 115.2 V Total capacity 5.8 kWh Standard power 2.8 kW Dimensions (W x H x D) 474 × 193 × 708 mm
Weigh 72.2 kg
-
BATTERY MODULE
Battery type Li-ion (LFP) Max Charge / Discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 11.5, T-BAT H 11.5 V2
-
GENERAL
Nominal voltage 230.4 V Total capacity 11.5 kWh Standard power 5.7 kW Dimensions (W x H x D) 474 × 193 × 708 mm +
474 × 193 × 647 mm
Weigh 72.2 kg + 68.5 kg
-
BATTERY MODULE
Battery type Li-ion (LFP) Max Charge / Discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 17.3, T-BAT H 17.3 V2
-
GENERAL
Nominal voltage 345.6 V Total capacity 17.3 kWh Standard power 8.6 kW Dimensions (W x H x D) 474 × 193 × 708 mm +
(474 × 193 × 647 mm) × 2
Weigh 72.2 kg + 68.5 kg × 2
-
BATTERY MODULE
Battery type Li-ion (LFP) Max Charge / Discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 23, T-BAT H 23 V2
-
GENERAL
Nominal voltage 460.8 V Total capacity 23.0 kWh Standard power 11.5 kW Dimensions (W x H x D) 474 × 193 × 708 mm +
(474 × 193 × 647 mm) × 3
Weigh 72.2 kg + 68.5 kg × 3
-
BATTERY MODULE
Battery type Li-ion (LFP) Max Charge / Discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
