Residential Batteries

T-BAT-SYS-HV-R2.5

5.1 kWh-33.2 kWh

Built with a Safe LFP battery, it offers an impressive cycle life of over 6000 times and can be expanded from 5 kWh to 33 kWh per string. With a maximum charging and discharging current of 50A, this battery ensures long-lasting power storage for use.

Data Download

Product Advantage

This T-BAT-SYS-HV-R2.5 is crafted with safety in mind, using non-toxic materials and rigorous testing for peace of mind. Its rack design allows for easy and fast installation by a single person, while offering a flexible and convenient energy solution for various applications.

Assured Reliability

LiFePO4 battery cell (50Ah)
No toxic heavy metals or caustic materials

High Performance

Max. 50A charging / discharging current
Cycle life > 6000 times

Reliability

Cycle life > 6000 times
Extendable from 5kWh to 33kWh per stack

Smart Management

Remote fault diagnosis, upgrade and maintenance

Product Parameters

T-BAT-SYS-HV-R2.5

T-BAT-SYS-HV-R2.5
- SYSTEM PARAMETERS

  System capacity 2 ~ 13 Batteries
  Voltage range 89.6 ~ 759.2 V
  Max charge / discharge current
  50 A
  Protection class IP20

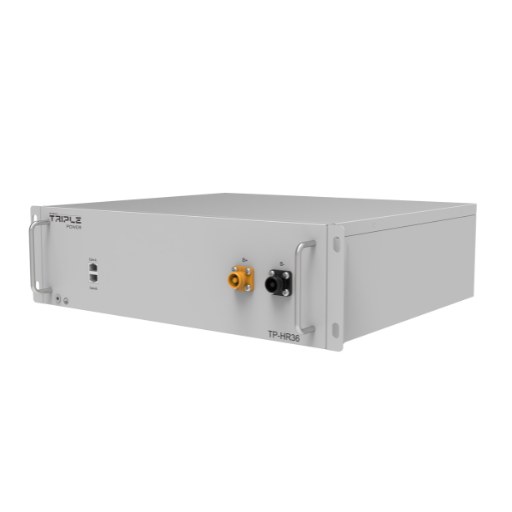

- BATTERY MODULE

  Battery type Li-ion (LFP)
  Nominal voltage 51.2 V
  Operating voltage 44.8 ~ 58.4 V
  Nominal power 1.2 kW
  Weight 28 kg
  Dimensions (L × W × H)
  442 × 391 × 130 mm

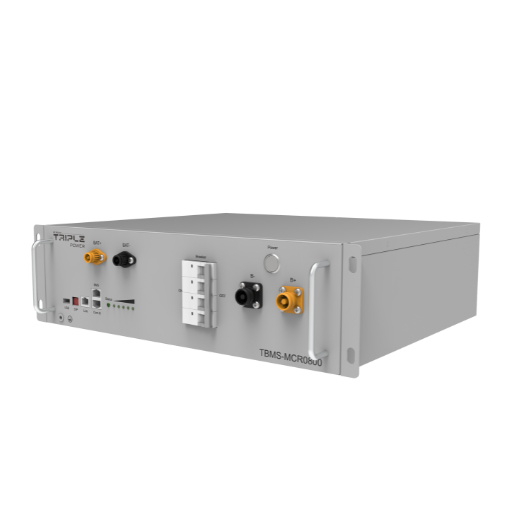

- BMS

  Model TBMS-MCR0800
  Dimensions (L × W × H) 442 × 391 × 130 mm
  Weight 8 kg
