Residential Batteries

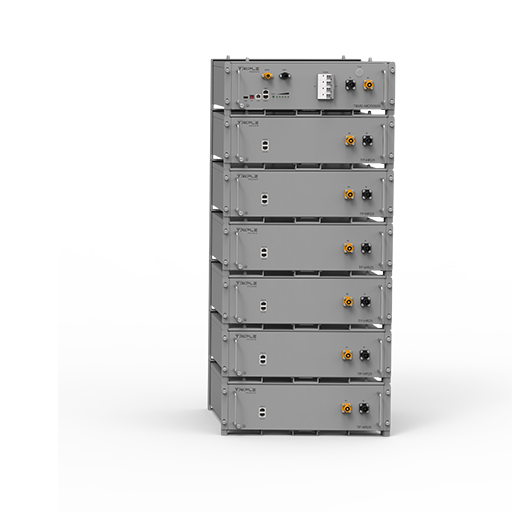

T-BAT-SYS-HV-R3.6

7.3 kWh-47.8 kWh

The T-BAT-SYS-HV-R3.6 is designed for ease of installation and space efficiency, making it perfect for tight areas. With expandability from 7.3kWh to 47.8kWh per stack, this battery offers scalable energy storage to meet growing energy needs

Data Download

Product Advantage

The T-BAT-SYS-HV-R3.6 offers exceptional longevity, with a cycle life exceeding 6000 cycles. It supports up to 50A charging/discharging current, ensuring robust power handling for a variety of applications.

Assured Reliability

LiFePO4 battery cell (72Ah)
No toxic heavy metals or caustic materials

High Performance

Max. 50A charging / discharging current
Cycle life > 6000 times

Smart Management

Remote fault diagnosis, upgrade and maintenance

Flexible Adaptability

Space-efficient design enables straightforward installation in tight areas
Extendable from 7.3kWh to 47.8kWh per string

Product Parameters

T-BAT-SYS-HV-R3.6

T-BAT-SYS-HV-R3.6
- SYSTEM PARAMETERS

  System capacity 2 ~ 13 Batteries
  Voltage range 89.6 ~ 759.2 V
  Max charge / discharge current
  50 A
  Protection class IP20

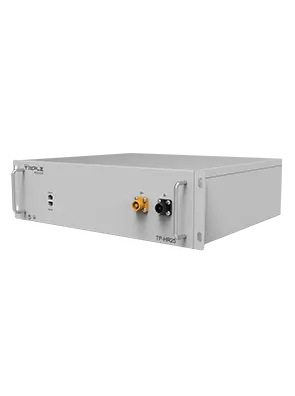

- BATTERY MODULE

  Battery type Li-ion (LFP)
  Nominal voltage 51.2 V
  Operating voltage 44.8 ~ 58.4 V
  Nominal power 1.7 kW
  Weight 31 kg
  Dimensions (L × W × H)
  442 × 391 × 130 mm

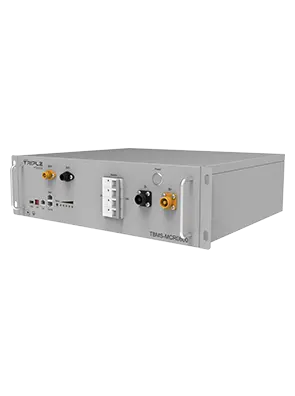

- BMS

  Model TBMS-MCR0800
  Dimensions (L × W × H) 442 × 391 × 130 mm
  Weight 8 kg
