Residential Batteries

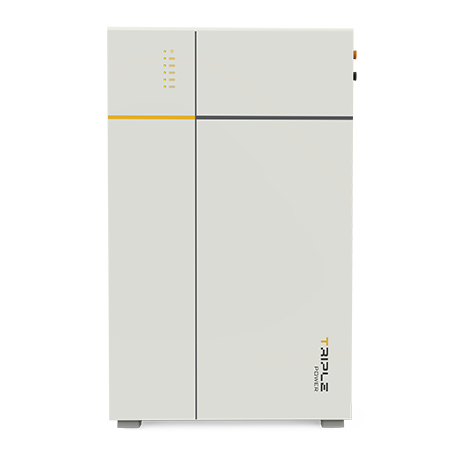

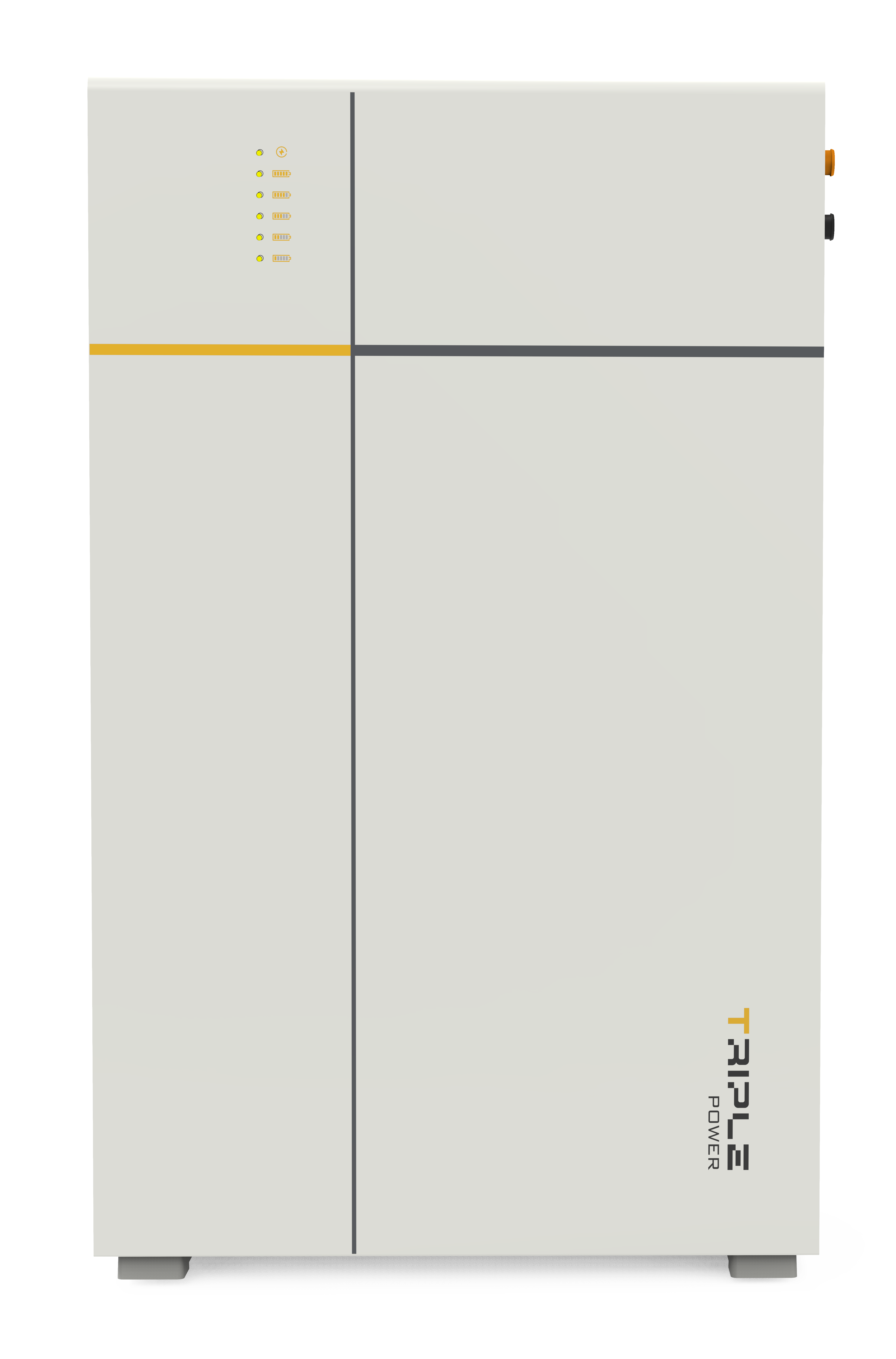

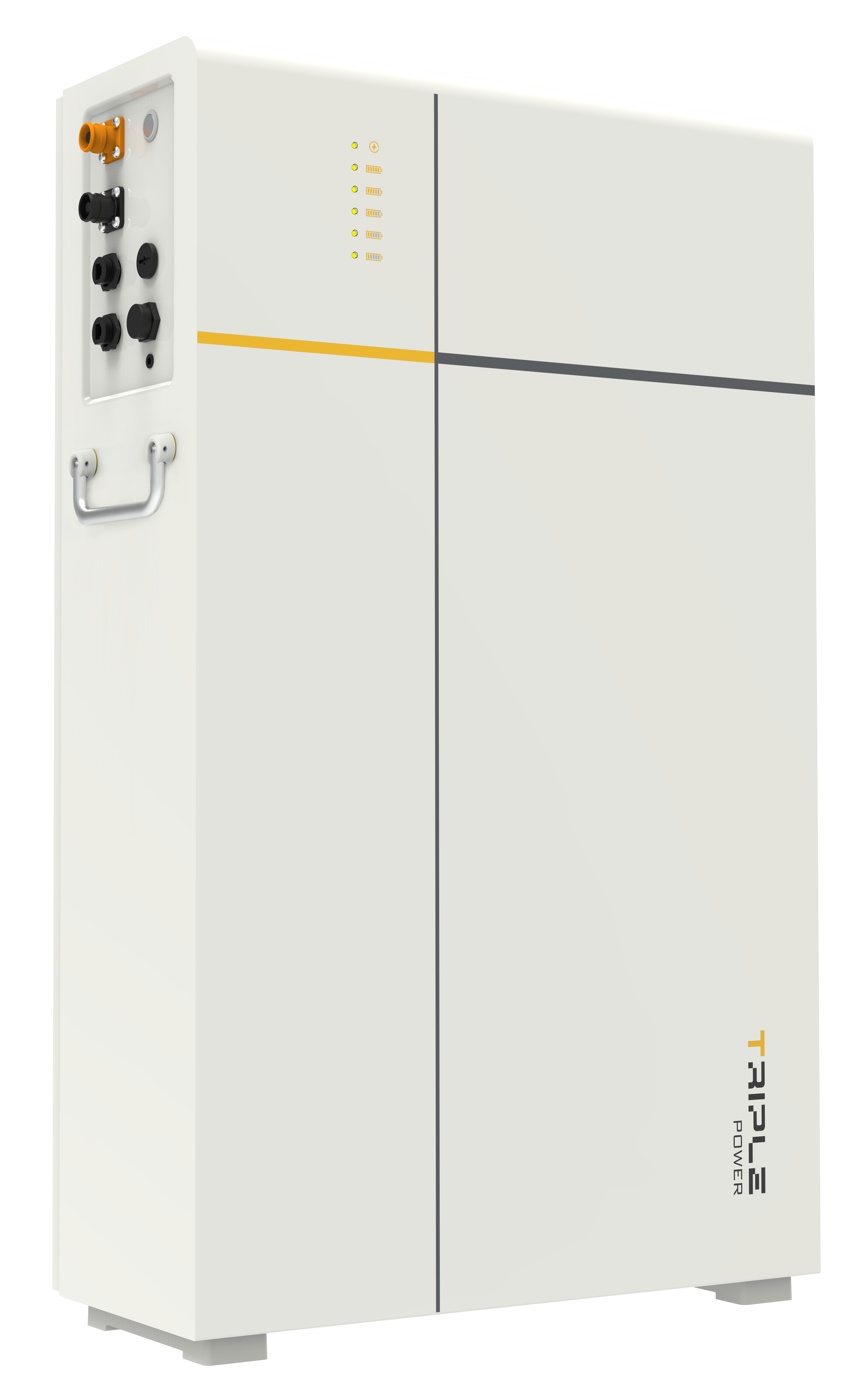

T-BAT-SYS-LV D150
-
15 kWh
The T-BAT-SYS-LV D150 offers a peak discharge current of 310A for 10 seconds, a cycle life of over 6000 times for durability. Its modular design allows easy installation and supports up to 16 parallel units, providing flexibility for various applications.
-
Watch Video
Product Advantage
Its high-performance LFP battery delivers exceptional discharge capability and long lifespan. With an IP65 protection degree, the D150 battery ensures reliable operation in demanding environments, making it the ideal choice for scalable and efficient energy storage.
Quick and easy installation
Modular design, expandable to 16 units in parallel
Remote fault diagnosis, upgrade and maintenance
Al-driven intelligent algorithms for high SOC and accuracy
Peak discharge current: 310A for 10s
Cycle life > 6000 times
LiFePO4 battery cell & high-performance processors
IP65 protection degree
Product Parameters
-
T-BAT-SYS-LV D150-
BATTERY MODULE
Battery type LFP Rated capacity 314 Ah Operating voltage range 42 ~ 54 V Nominal voltage 48 V Max. charge / discharge current 155 A -
GENERAL
Weight 125 kg Dimensions (W × H × D) 900 x 540 x 220 mm Degree of protection IP65
-
Data Download
-
Datasheet
-
Quick Installation Guide
-
File nameLanguageFormatSizeLast updateddownload
