Residential Batteries

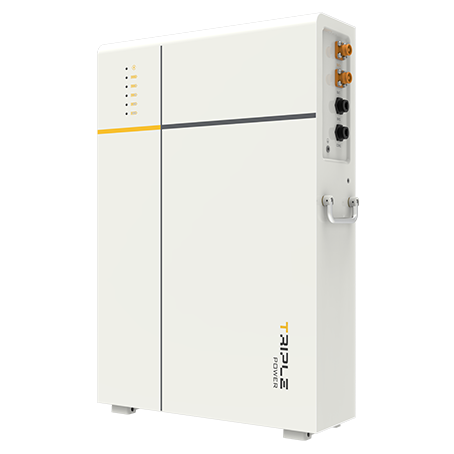

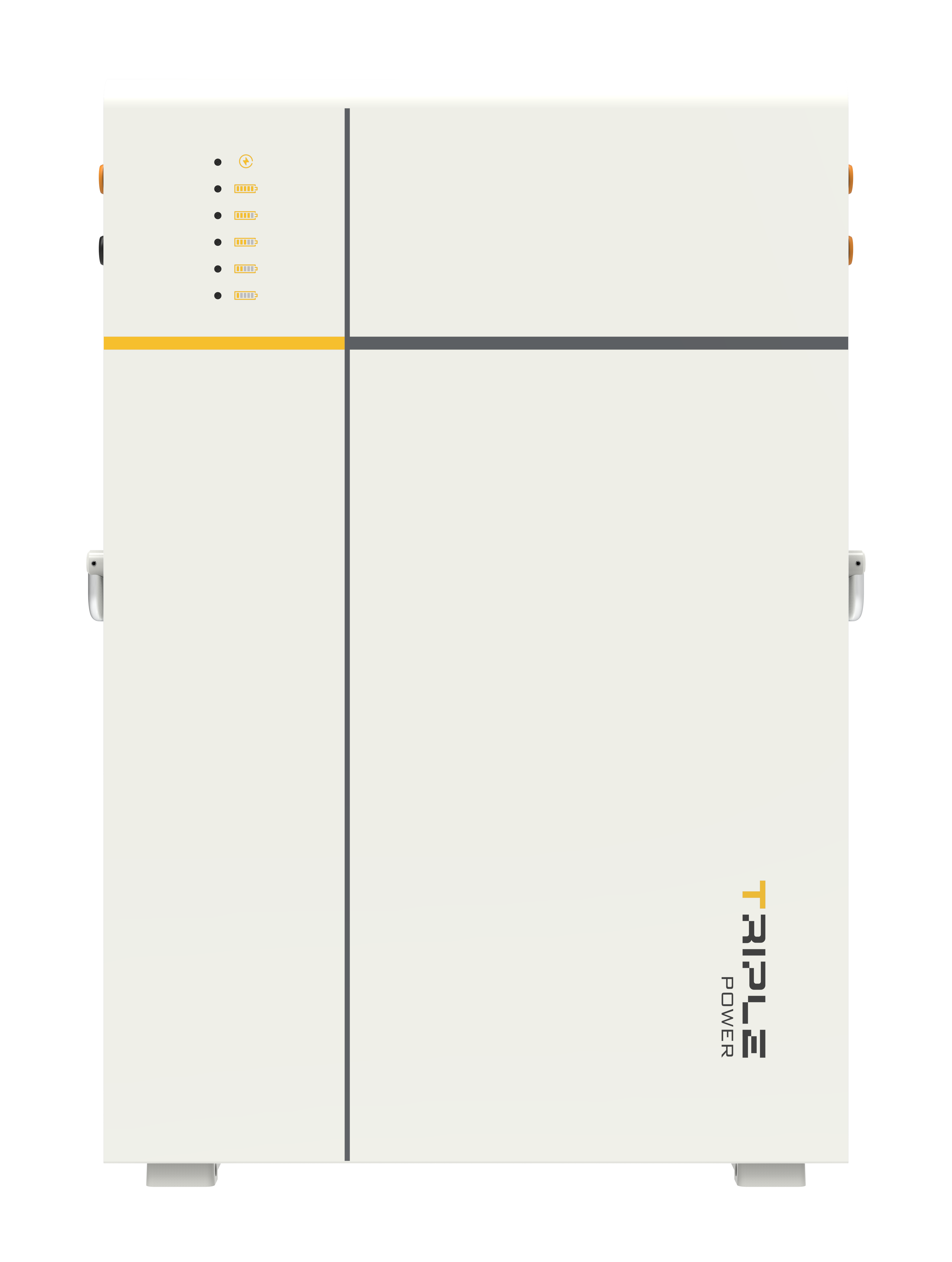

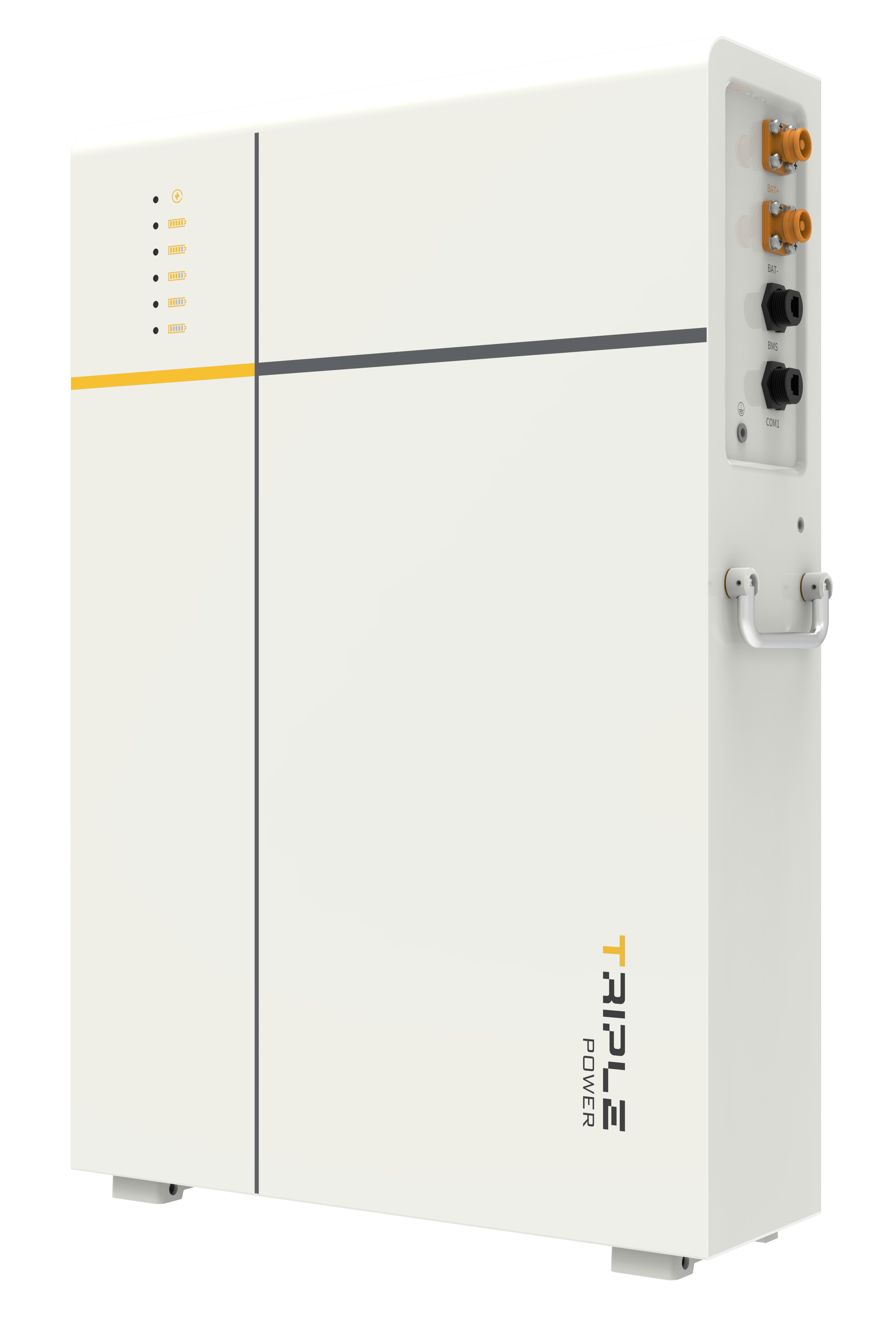

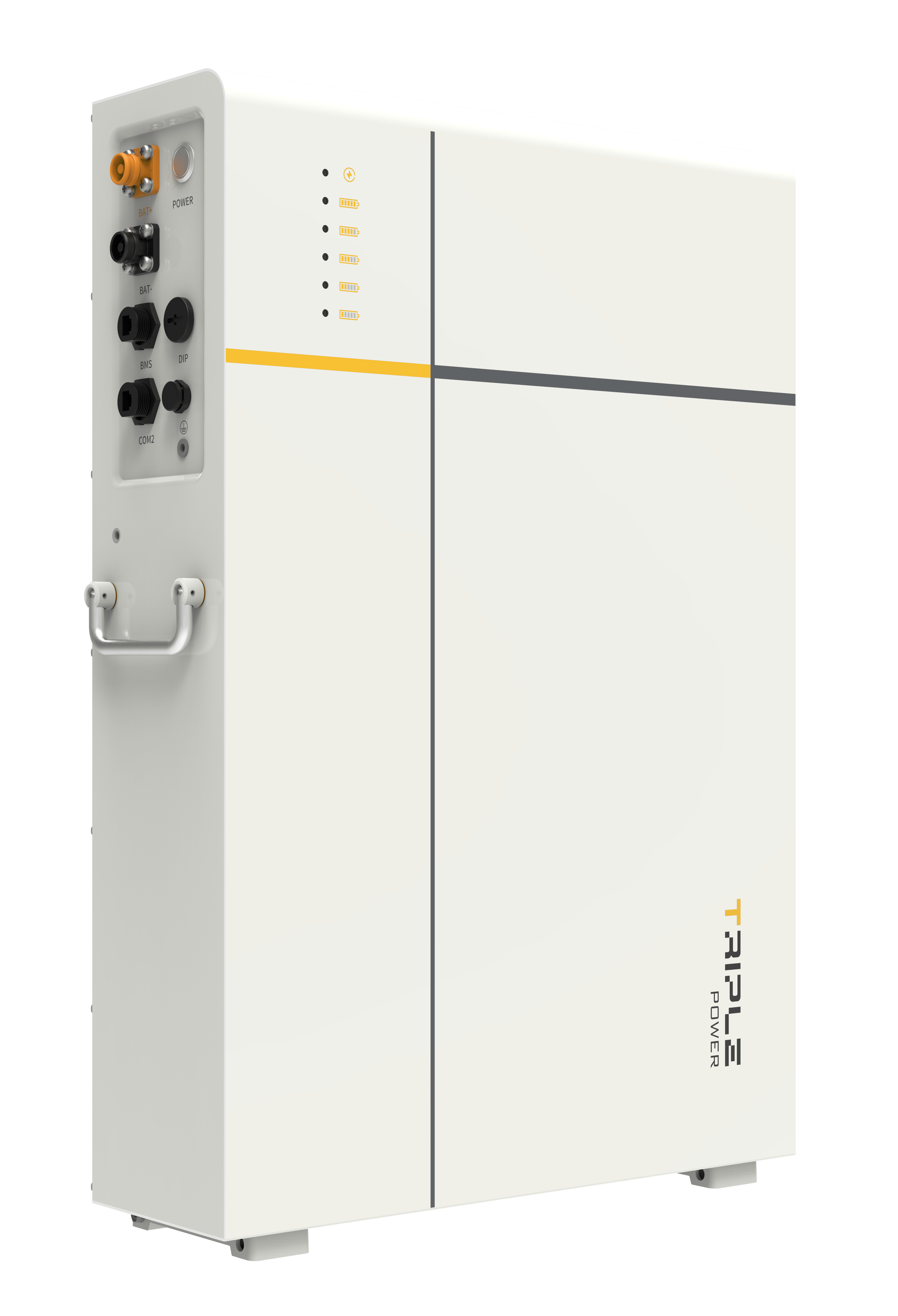

T-BAT-SYS-LV D53
-
5.3 kWh-85.1 kWh
The SolaX T-BAT-SYS-LV D53 is a next-generation residential energy storage system featuring advanced LFP battery technology. With a wide capacity range from 5.3 to 85.1 kWh and support for up to 16 units in parallel, it offers flexible, scalable energy storage tailored to modern household needs.
-
Watch Video
- Data Download

Product Advantage
The T-BAT-SYS-LV D53 stands out with its powerful performance, supporting peak discharge currents of 200A and offering a long cycle life of over 6000 times. Its IP65-rated enclosure and high-performance processors ensure reliable operation in various environments. Enhanced by AI-powered management algorithms and remote monitoring capabilities, it delivers intelligent energy control with minimal maintenance.



Assured Reliability
LiFePO4 battery cell & high-performance processors
IP65 protection degree

Flexible Adaptability
Floor or wall mounting optional
Modular design, expandable to 16 units in parallel

High Performance
Peak discharge current: 200A for 10s
Cycle life > 6000 times

Smart Management
Remote fault diagnosis, upgrade and maintenance
Al-driven intelligent algorithms for high SOC and accuracy
Product Parameters
-
T-BAT LD583
-
T-BAT LD636
-
T-BAT LD689
-
T-BAT LD742
-
T-BAT LD795
-
T-BAT LD848
-
T-BAT LD53
-
T-BAT LD106
-
T-BAT LD159
-
T-BAT LD212
-
T-BAT LD265
-
T-BAT LD318
-
T-BAT LD371
-
T-BAT LD424
-
T-BAT LD477
-
T-BAT LD530
-
T-BAT LD583
-
T-BAT LD636
-
T-BAT LD689
-
T-BAT LD742
-
T-BAT LD795
-
T-BAT LD848
-
T-BAT LD53
-
T-BAT LD106
-
T-BAT LD159
-
T-BAT LD212
-
T-BAT LD265
-
T-BAT LD318
-
T-BAT LD53
-
SYSTEM DATA
Number of modules 1 Nominal capacity 5.3 kWh Max.output current 100 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD106
-
SYSTEM DATA
Number of modules 2 Nominal capacity 10.6 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD159
-
SYSTEM DATA
Number of modules 3 Nominal capacity 15.9 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD212
-
SYSTEM DATA
Number of modules 4 Nominal capacity 21.2 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD265
-
SYSTEM DATA
Number of modules 5 Nominal capacity 26.6 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD318
-
SYSTEM DATA
Number of modules 6 Nominal capacity 31.9 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD371
-
SYSTEM DATA
Number of modules 7 Nominal capacity 37.2 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD424
-
SYSTEM DATA
Number of modules 8 Nominal capacity 42.5 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD477
-
SYSTEM DATA
Number of modules 9 Nominal capacity 47.9 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD530
-
SYSTEM DATA
Number of modules 10 Nominal capacity 53.2 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD583
-
SYSTEM DATA
Number of modules 11 Nominal capacity 58.5 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD636
-
SYSTEM DATA
Number of modules 12 Nominal capacity 63.8 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD689
-
SYSTEM DATA
Number of modules 13 Nominal capacity 69.2 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD742
-
SYSTEM DATA
Number of modules 14 Nominal capacity 74.5 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD795
-
SYSTEM DATA
Number of modules 15 Nominal capacity 79.8 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD848
-
SYSTEM DATA
Number of modules 16 Nominal capacity 85.1 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
