Residential Batteries

T-BAT-SYS-LV-R36

3.6 kWh-58.8 kWh

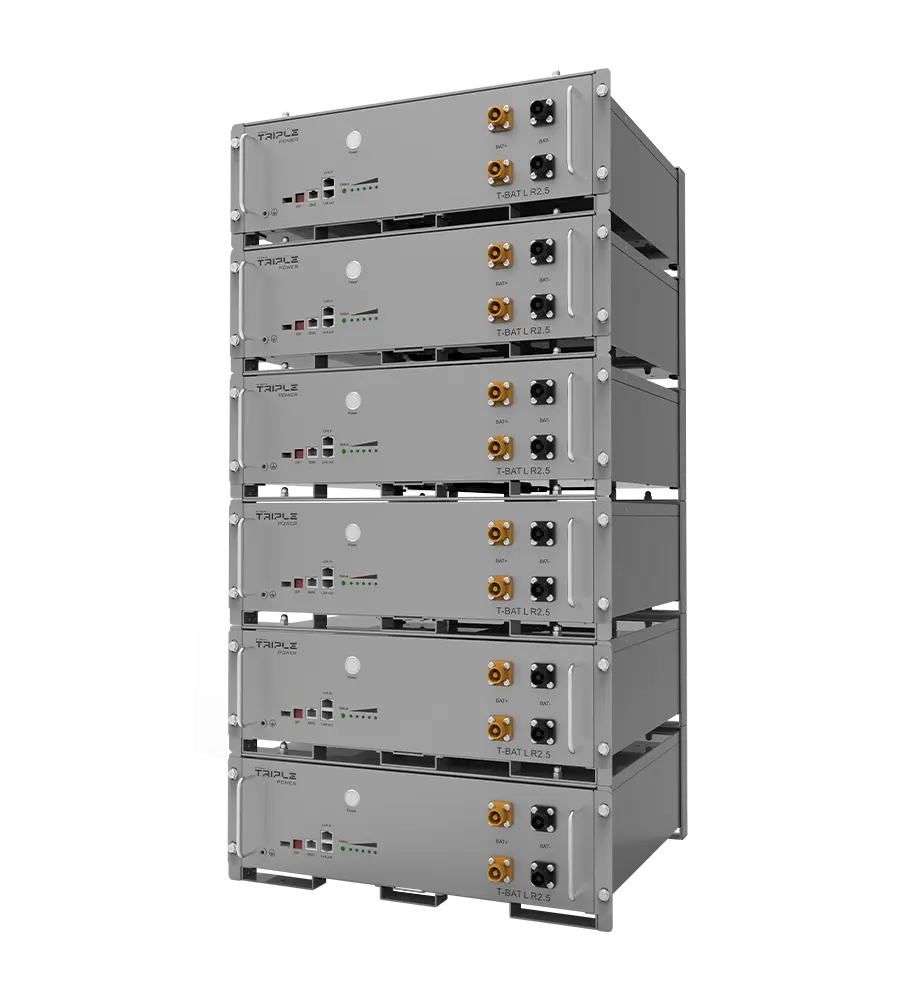

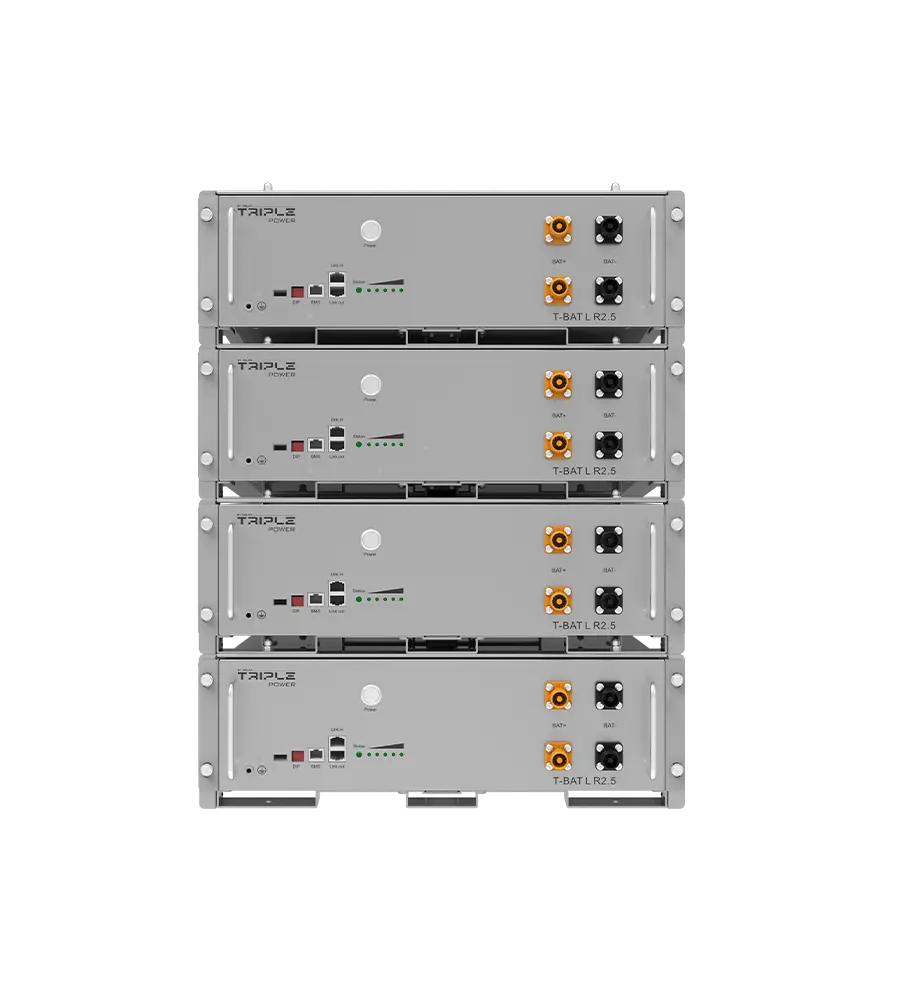

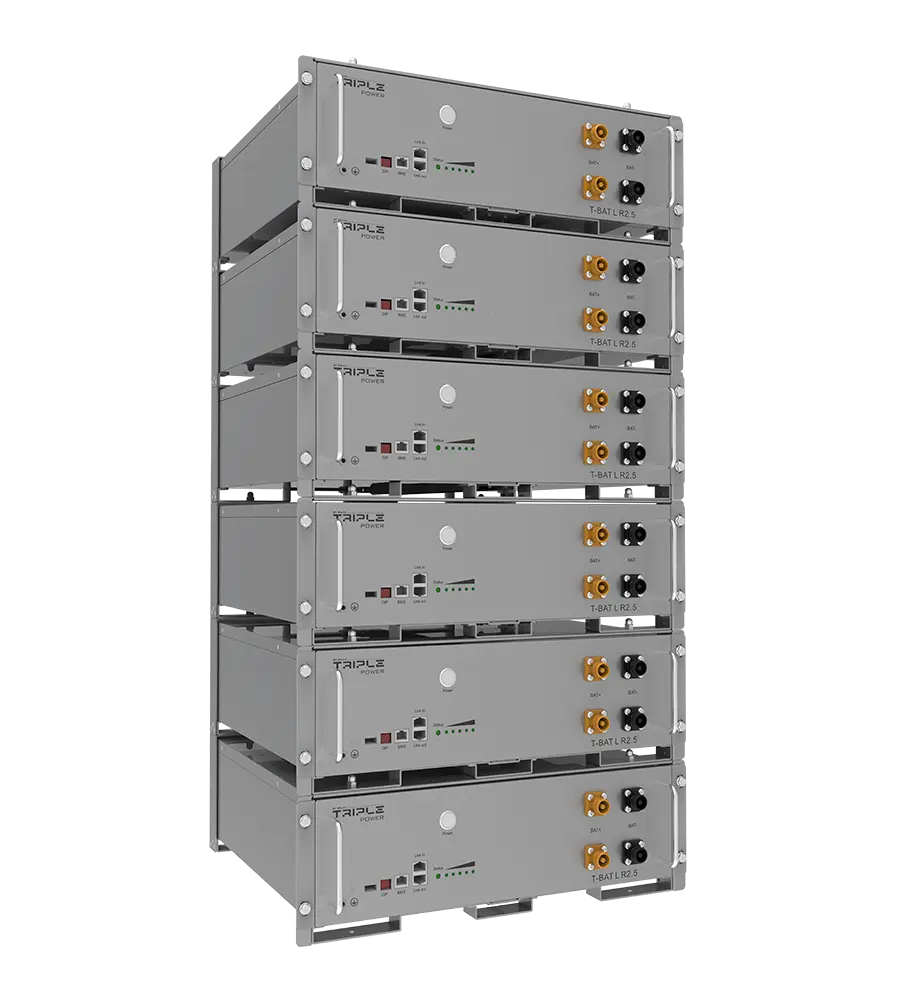

The T-BAT-SYS-LV R36 from SolaX features LFP battery technology and offers a flexible capacity range between 3.6 kWh and 58.8 kWh. This battery is perfectly paired with the X1 HYBRID LV inverter, making it a flexible solution for residential energy needs, while being easy to install and maintain.

Watch Video
Data Download

Product Advantage

Assured Reliability

LiFePO4 battery cell & high-performance processors
No toxic heavy metals or caustic materials
Soft start to protect BAT and INV from a sudden surge

High Performance

Long cycle life > 6000 times
High capacity utilization
Efficient energy transfer

Smart Management

Remote fault diagnosis, upgrade and maintenance

Flexible Adaptability

Wall quick bracket, or cabinet mounting optional
Easy to scale up

Product Parameters

T-BAT LR3.6
T-BAT LR7.2
T-BAT LR10.8
T-BAT LR14.4
T-BAT LR18.0
T-BAT LR21.6
T-BAT LR25.2
T-BAT LR28.8
T-BAT LR32.4
T-BAT LR36.0
T-BAT LR39.6
T-BAT LR43.2
T-BAT LR46.8
T-BAT LR50.4
T-BAT LR54.0
T-BAT LR57.6

T-BAT LR3.6
- SYSTEM DATA

  Number of modules 1 Module
  Nominal capacity 3.6 kWh
  Max.output current 50 A
  Peak discharge current
  60 A (60 s)
  100 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR7.2
- SYSTEM DATA

  Number of modules 2 Module
  Nominal capacity 7.3 kWh
  Max.output current 85 A
  Peak discharge current
  120 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR10.8
- SYSTEM DATA

  Number of modules 3 Modules
  Nominal capacity 11.0 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR14.4
- SYSTEM DATA

  Number of modules 4 Modules
  Nominal capacity 14.7 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR18.0
- SYSTEM DATA

  Number of modules 5 Modules
  Nominal capacity 18.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR21.6
- SYSTEM DATA

  Number of modules 6 Modules
  Nominal capacity 22.0 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR25.2
- SYSTEM DATA

  Number of modules 7 Modules
  Nominal capacity 25.7 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR28.8
- SYSTEM DATA

  Number of modules 8 Module
  Nominal capacity 29.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR32.4
- SYSTEM DATA

  Number of modules 9 Modules
  Nominal capacity 33.1 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR36.0
- SYSTEM DATA

  Number of modules 10 Modules
  Nominal capacity 36.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR39.6
- SYSTEM DATA

  Number of modules 11Modules
  Nominal capacity 40.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR43.2
- SYSTEM DATA

  Number of modules 12 Modules
  Nominal capacity 44.1 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR46.8
- SYSTEM DATA

  Number of modules 13 Modules
  Nominal capacity 47.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR50.4
- SYSTEM DATA

  Number of modules 14 Modules
  Nominal capacity 51.5 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR54.0
- SYSTEM DATA

  Number of modules 15 Modules
  Nominal capacity 55.2 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR57.6
- SYSTEM DATA

  Number of modules 16 Modules
  Nominal capacity 58.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
