Residential Batteries

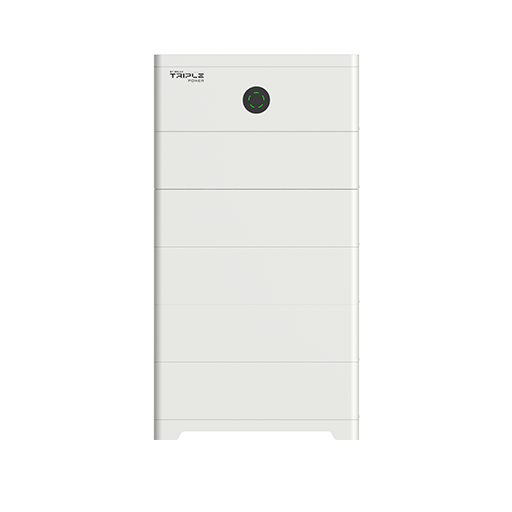

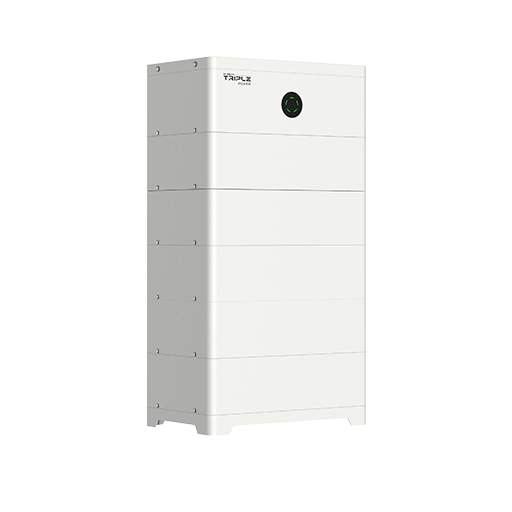

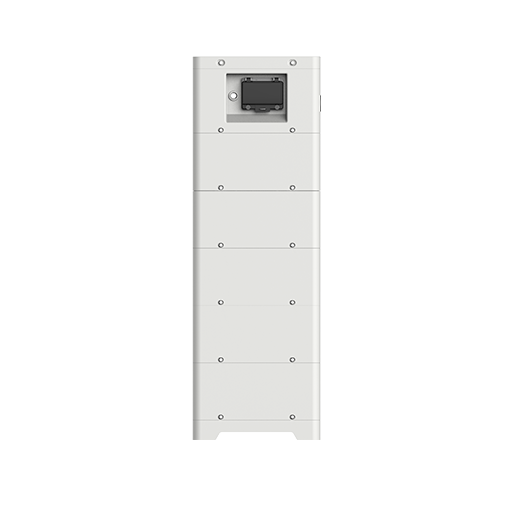

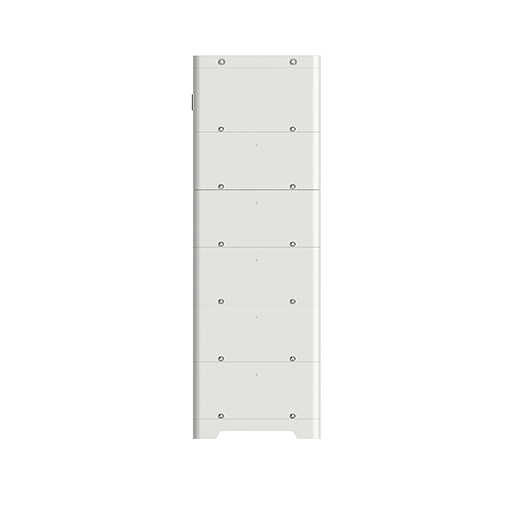

TSYS-HS51

  • 10.2 kWh-66.3 kWh

The TSYS-HS51 offers a wide capacity range from 10.2 kWh to 66.3 kWh, making it suitable for various energy needs. Its compatibility with TCBox-70 allows for expanding up to 3 battery towers for increased capacity.

Product Advantage

The TSYS-HS5 supports up to 70A charging/discharging current, providing rapid energy transfer. With IP66 protection, it guarantees reliable operation in diverse environments. The system also features an optional two-in-one cable for parallel connections, which helps extend its lifespan and optimize performance.

Contact Us
Assured Reliability

IP66 protection degree

LiFePO4 battery cell & high-performance processors


Smart Management

Remote fault diagnosis, upgrade and maintenance

Unique battery heating tech and wide temperature  tolerance

Optional parallel connection using a two-in-one cable  for easy capacity expansion and extend battery lifespan


High Performance



  • 10.2-66.3 kWh wide capacity range

  • Max. 70A charging / discharging current

  • Cycle life > 6000 times


Flexible Adaptability

  • Compatible with TCBox-70, up to 3 towers of batteries

  • Compact and stackable for easy installation


Product Parameters

  • T-HS10.2
  • T-HS15.3
  • T-HS20.4
  • T-HS25.6
  • T-HS30.7
  • T-HS35.8
  • T-HS40.9
  • T-HS46.0
  • T-HS51.2
  • T-HS56.3
  • T-HS61.4
  • T-HS66.5
  • T-HS10.2
    • SYSTEM SPECIFICATION
      Number of modules2
      Rated energy10.2 kWh
      Rated voltage102.4 V
      Rated power

      6.1 kW

      Dimension (W x H x D)600 × 621 × 376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS15.3
    • SYSTEM SPECIFICATION
      Number of modules3
      Rated energy15.3 kWh
      Rated voltage153.6 V
      Rated power

      9.2 kW

      Dimension (W x H x D)600x789 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS20.4
    • SYSTEM SPECIFICATION
      Number of modules4
      Rated energy20.4 kWh
      Rated voltage204.8 V
      Rated power

      12.3 kW

      Dimension (W x H x D)600x957x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS25.6
    • SYSTEM SPECIFICATION
      Number of modules5
      Rated energy25.6 kWh
      Rated voltage256.0 V
      Rated power

      15.4 kW

      Dimension (W x H x D)600 x 1125 x 376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS30.7
    • SYSTEM SPECIFICATION
      Number of modules6
      Rated energy30.7 kWh
      Rated voltage307.2 V
      Rated power

      18.4 kW

      Dimension (W x H x D)600x1293 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS35.8
    • SYSTEM SPECIFICATION
      Number of modules7
      Rated energy35.8 kWh
      Rated voltage358.4 V
      Rated power

      21.5 kW

      Dimension (W x H x D)600 x1461 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS40.9
    • SYSTEM SPECIFICATION
      Number of modules8
      Rated energy40.9 kWh
      Rated voltage409.6 V
      Rated power

      24.6 kW

      Dimension (W x H x D)600x1629x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS46.0
    • SYSTEM SPECIFICATION
      Number of modules9
      Rated energy46.0 kWh
      Rated voltage460.8 V
      Rated power

      27.6 kW

      Dimension (W x H x D)

      600x957x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS51.2
    • SYSTEM SPECIFICATION
      Number of modules10
      Rated energy51.2 kWh
      Rated voltage512.0 V
      Rated power

      30.7 kW

      Dimension (W x H x D)

      600x1125x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS56.3
    • SYSTEM SPECIFICATION
      Number of modules11
      Rated energy56.3 kWh
      Rated voltage563.2 V
      Rated power

      33.8 kW

      Dimension (W x H x D)

      600x1293x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS61.4
    • SYSTEM SPECIFICATION
      Number of modules12
      Rated energy61.4 kWh
      Rated voltage614.4 V
      Rated power

      36.9 kW

      Dimension (W x H x D)

      600x1293x376mm

      +600x1293x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS66.5
    • SYSTEM SPECIFICATION
      Number of modules13
      Rated energy66.5 kWh
      Rated voltage665.6 V
      Rated power

      39.9 kW

      Dimension (W x H x D)

      600x1461x376mm

      +600x1293x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66
