Residential Batteries

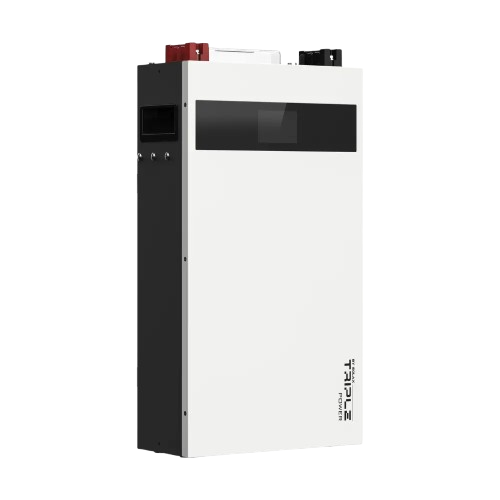

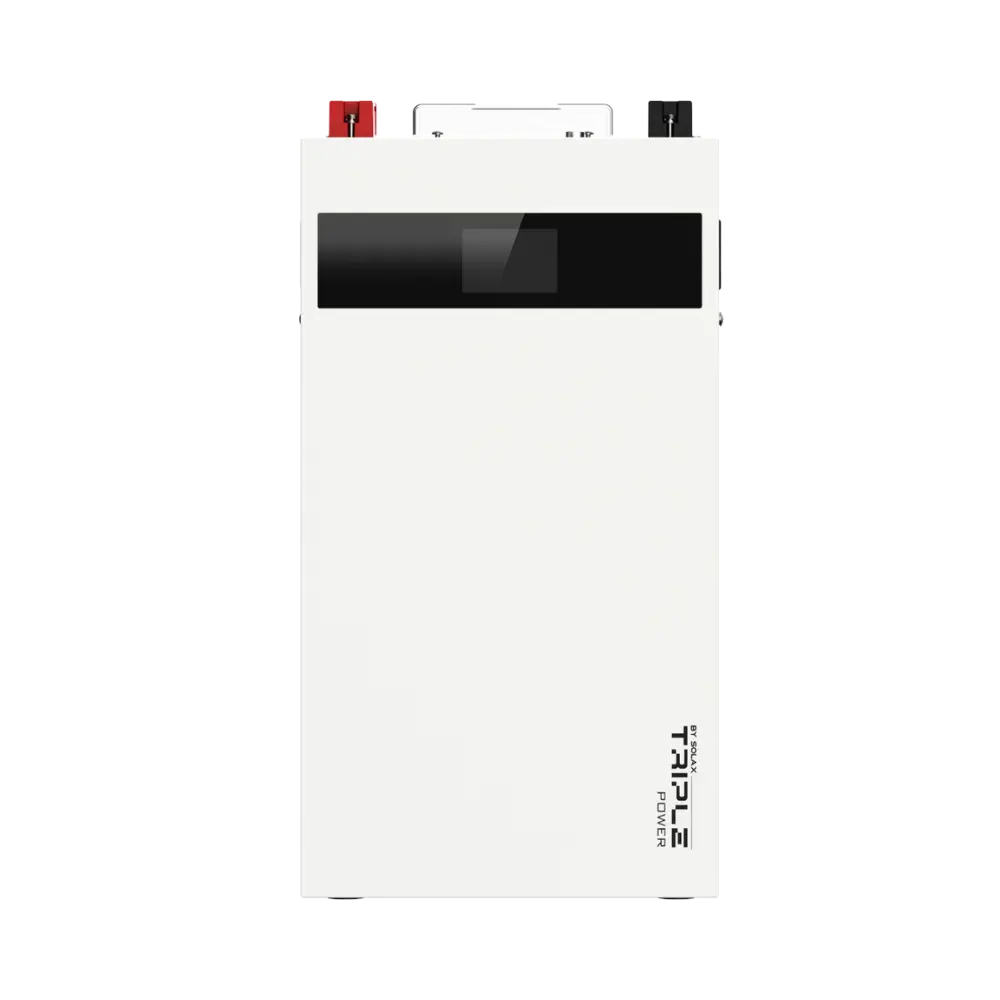

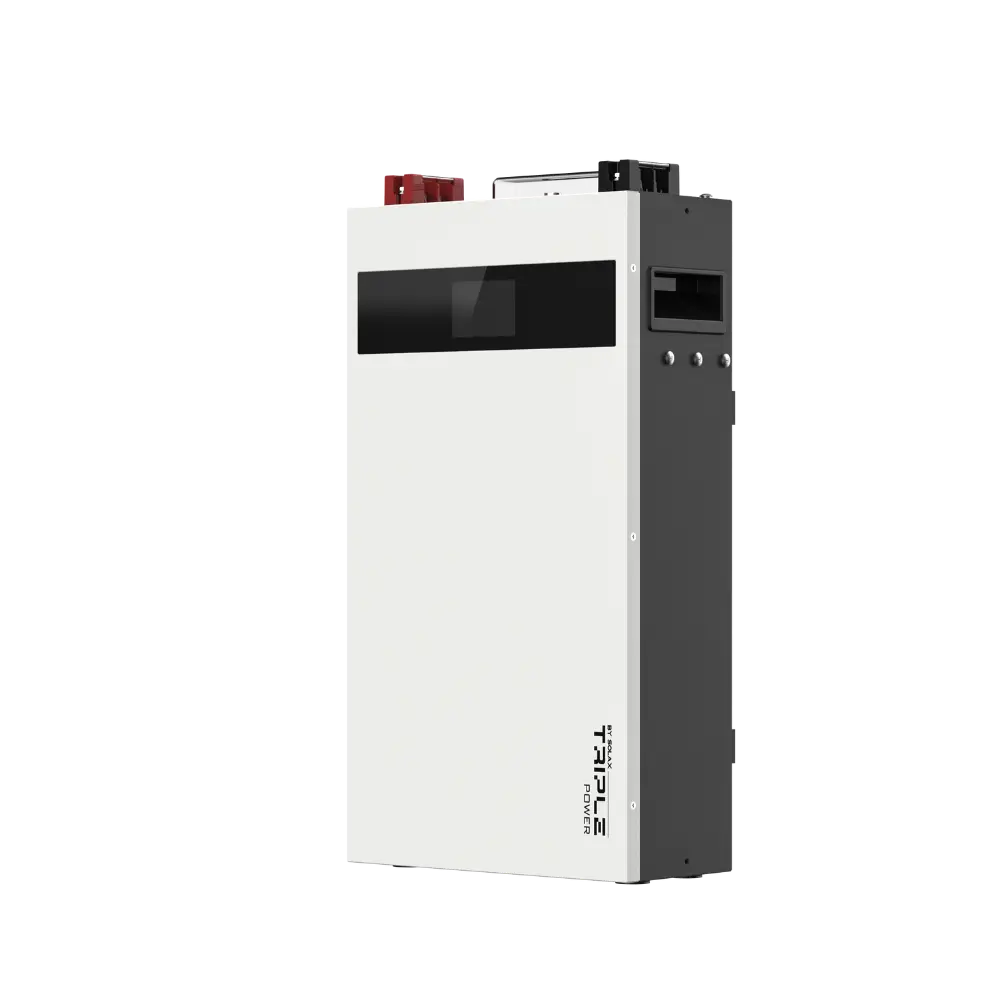

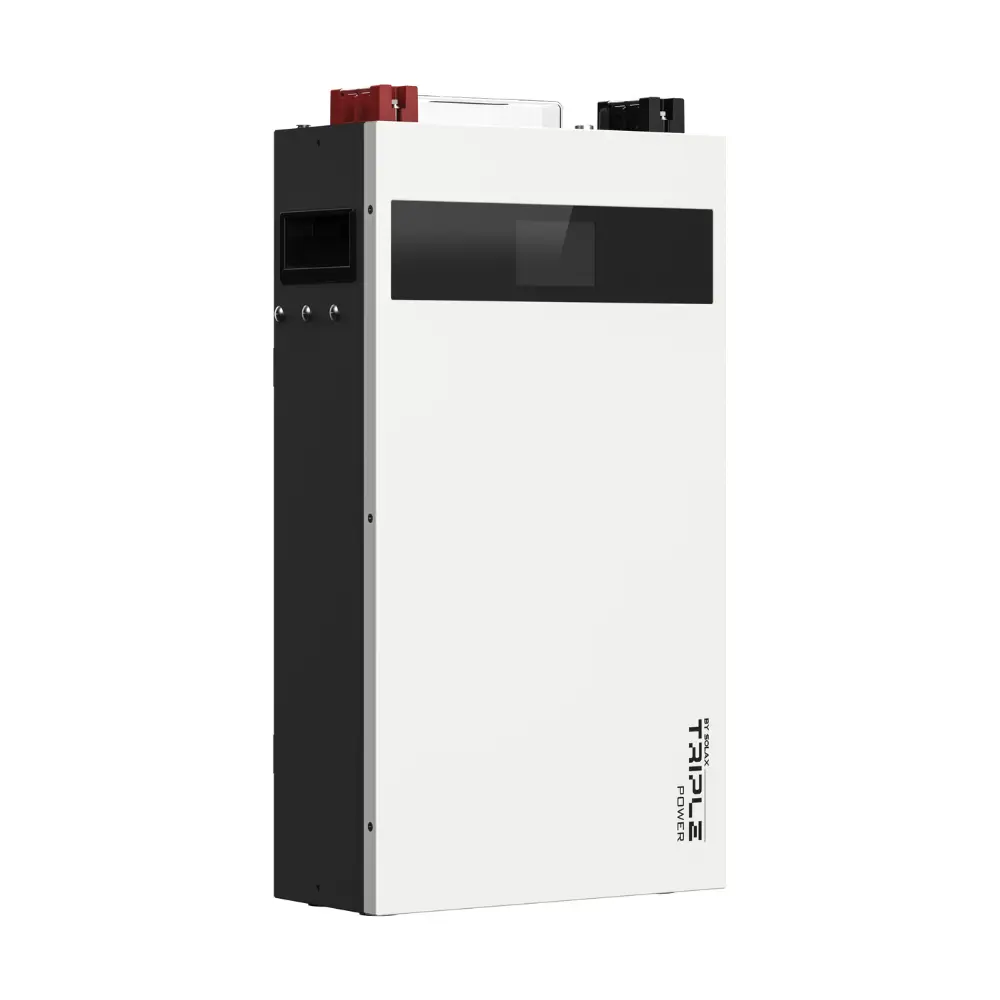

TSYS-LD51

5.1 kWh

The TSYS-LD51 stands out with its innovative smart management system, featuring an easy-to-use LCD touchscreen for intuitive control. Additionally, the system supports remote diagnostics and updates, making maintenance effortless. With an IP40-rated protection, it ensures safe and dependable operation across different environments.

Data Download

Product Advantage

The TSYS-LD51 offers various mounting options, including floor, wall, and stack installations, and supports scalability of up to 16 units in parallel. Its CTP (Cell-to-Pack) design optimizes space and energy density, delivering exceptional efficiency for reliable energy management.

Flexible Adaptability

Supports floor, wall, or stack mounting
Expandable to 16 units in parallel
CTP(Cell-to-Pack) design maximizes space and energy density for superior performance

High Performance

135A maximum charging current ensures superior power and peak performance
Cycle life > 6000 times for long-lasting use

Assured Reliability

Premium LiFeP04 cells and high-efficiency processors
IP40-rated for reliable and safe operation

Smart Management

User-friendly LCD touchscreen for intuitive and easy interaction
Remote fault diagnostics and updates

Product Parameters

TB-LD51

TB-LD51
- BATTERY MODULE

  Battery type LFP
  Rated capacity 100 Ah
  Operating voltage range 42.4~57.6 V
  Nominal voltage 51.2 V
  Max current Charge: 100 A, Discharge: 135 A
- GENERAL

  Weight 41.5 ± 1 kg
  Dimensions (W × H × D) 326 x626 x164 mm
  Enclosure protection IP40
