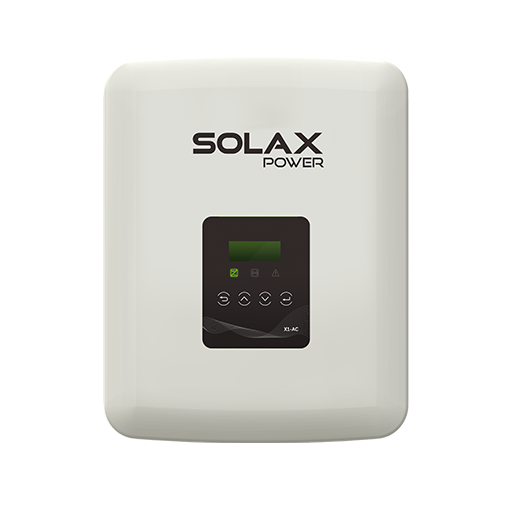

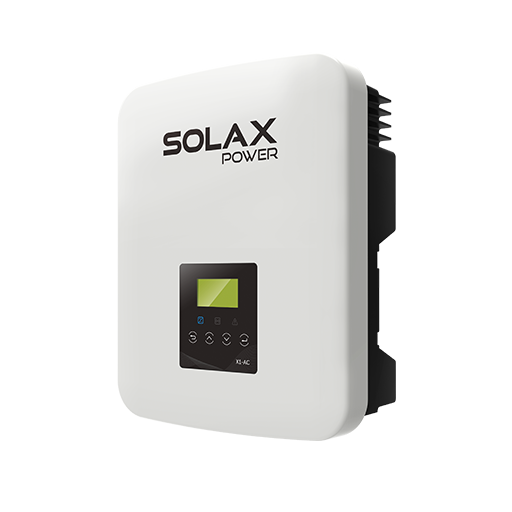

RetroFit Inverter

X1-AC

3kW / 3.6kW / 4.6kW / 5kW

Engineered for simplicity and performance, the X1-AC inverter offers a budget-friendly solution with premium quality. Featuring natural cooling for ultra-quiet operation and low maintenance, it easily integrates with high-voltage batteries.

Data Download

Product Advantage

Delivering up to 97% efficiency, the X1-AC inverter optimizes energy conversion for maximum savings. Designed to meet the evolving demands of smart energy use, X1-AC stands ready for future upgrades with its VPP-ready capability.

Efficient and Reliable Operation

Natural cooling for quiet operation and low maintenance
Max. efficiency up to 97%
Multiple protection features

Compatibility and Safety

Compatible with high-voltage batteries
Transformerless design with software and hardware protection mechanisms

Product Parameters

X1-AC-3.0
X1-AC-3.6
X1-AC-4.6 (Being developed)
X1-AC-5.0 (Being developed)

X1-AC-3.0
- OUTPUT (AC)

  Nominal AC power [VA] 3000
  Max. AC current [A] 13.6
- INPUT AC

  Max. apparent AC power[VA] 3000
  Max. AC current[A] 13.6
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D)[mm] 430*341.5*143
  Weight [kg] 15.5
X1-AC-3.6
- OUTPUT (AC)

  Nominal AC power [VA] 3680
  Max. AC current [A] 16
- INPUT AC

  Max. apparent AC power[VA] 3680
  Max. AC current[A] 16.8 (16 for G83)
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D)[mm] 430*341.5*143
  Weight [kg] 15.5
X1-AC-4.6 (Being developed)
- OUTPUT (AC)

  Nominal AC power [VA] 4600
  Max. AC current [A] 20
- INPUT AC

  Max. apparent AC power[VA] 4600
  Max. AC current[A] 21
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D)[mm] 430*341.5*143
  Weight [kg] 16.3
X1-AC-5.0 (Being developed)
- OUTPUT (AC)

  Nominal AC power [VA] 4999
  Max. AC current [A] 21.7
- INPUT AC

  Max. apparent AC power[VA] 4999
  Max. AC current[A] 21.7
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D)[mm] 430*341.5*143
  Weight [kg] 16.3
