Single Phase Inverter

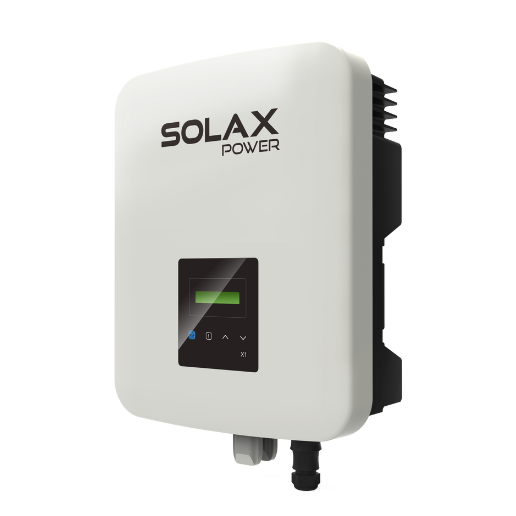

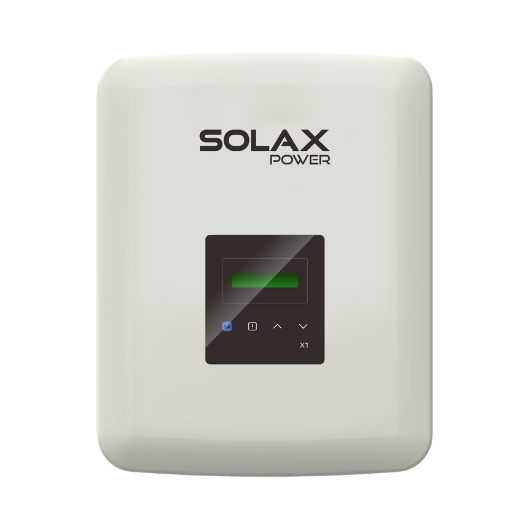

X1-BOOST G3

3kW / 3.3kW / 3.6kW / 4.2kW / 4.6kW / 5kW / 5.5kW / 6kW

The SolaX X1-BOOST G3 is built for home solar systems. The inverter is easy to install and includes an integrated export control function, ensuring compliance with local grid regulations while simplifying setup.

Data Download

Product Advantage

The X1-BOOST G3 supports 150% PV oversizing, 14A input per string, and a maximum PV input voltage of 600V. Designed for harsh environments, it operates across -25°C to +60°C and includes safety features like over-temperature protection.

Superior Performance

150% oversizing and 110% overloading
DC input 14A per string

User Friendly

24H monitoring and maintenance (Optional)
Easy to install and set up

Safety Reliability

AC/DC built-in Type III SPD (Optional)
Over-temperature protection
Export control function integrated

Product Parameters

X1-3.0-T-D(L) / X1-3.0-T-N(L)
X1-3.3-T-D(L) / X1-3.3-T-N(L)
X1-3.6-T-D(L) / X1-3.6-T-N(L)
X1-4.2-T-D(L) / X1-4.2-T-N(L)
X1-4.6-T-D(L) / X1-4.6-T-N(L)
X1-5.0-T-D(L) / X1-5.0-T-N(L)
X1-5.5K-T-D(L) / X1-5.5K-T-N(L)
X1-6.0K-T-D(L) / X1-6.0K-T-N(L)

X1-3.0-T-D(L) / X1-3.0-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 4500
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 3000
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 13.5
X1-3.3-T-D(L) / X1-3.3-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 4950
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 3300
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 13.5
X1-3.6-T-D(L) / X1-3.6-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 5400
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 3680
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 13.5
X1-4.2-T-D(L) / X1-4.2-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 6300
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 4200
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 15
X1-4.6-T-D(L) / X1-4.6-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 6900
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 4600
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 15
X1-5.0-T-D(L) / X1-5.0-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 7500
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 5000
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 15
X1-5.5K-T-D(L) / X1-5.5K-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 8250
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 5500
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 15
X1-6.0K-T-D(L) / X1-6.0K-T-N(L)
- DC INPUT

  Max. PV array input power [Wp] 9000
  MPP tracker voltage range [V] 70 ~ 580
  No. of MPP trackers / Strings per MPP tracker 2/1
- AC OUTPUT

  Rated AC output power [W] 6000
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180~280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  341.5 × 430 × 143
  Net Weight[kg] 15
