Hybrid Inverter

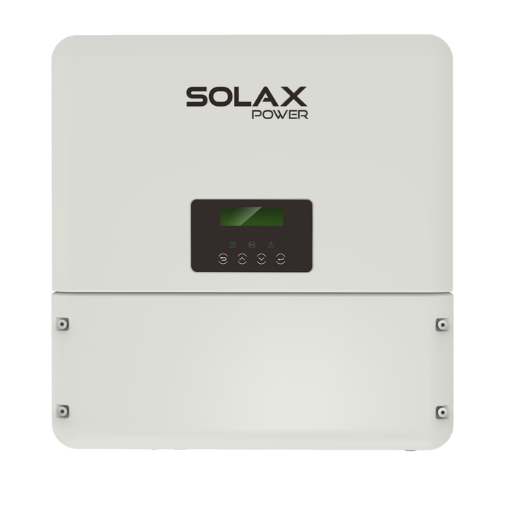

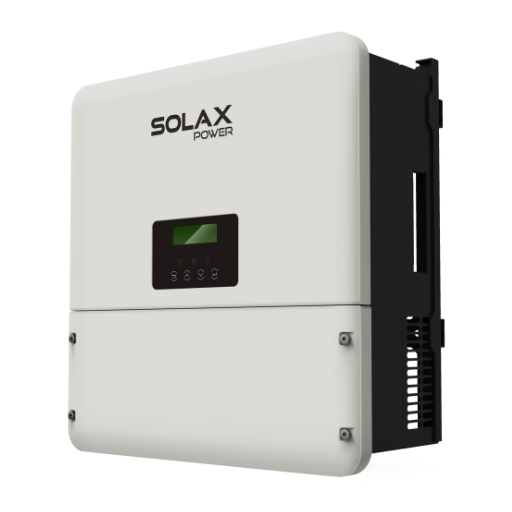

X1-Hybrid G4

  • 3.0kW / 3.7kW / 5.0kW / 6.0kW / 7.5kW

The X1-Hybrid G4, when combined with the T30 battery and the Matebox, forms the X-ESS G4, a comprehensive energy storage solution. The SolaX hybrid inverter integrates with heat pump and smart EV charger, offering a reliable energy solution for homes.

Product Advantage

The X1-Hybrid G4 delivers up to 200% PV oversizing for optimal energy generation and achieves up to 97% efficiency in charging and discharging. Additionally, the SolaX hybrid inverter is VPP-ready and capable of providing ancillary services in the power market, offering flexibility for both on-grid and off-grid solar energy storage system.

Contact Us
Assured Reliability

  • Up to 150% EPS output for 10s

  • UPS-level switchover time<10ms

  • IP65 protection degree

  • Type II SPD on AC&DC side


High Performance

  • 200% PV oversizing and up to 110% AC output

  • Up to 200% PV input

  • Up to 97% efficiency in charging and discharging

  • Low start-up voltage for longer operation



Flexible Adaptability

  • Lithium-ion & Lead-acid battery compatible

  • Max. 16A DC input current for high power solar panel

  • On-grid and off-grid parallel function, up to 15kW



Smart Management

  • VPP ready, ancillary service in power market

  • Global MPP scan for optimal energy harvest

  • Smart loads management (e.g., heat pump, smart EV charger)

  • Intelligent ToU-driven energy management

  • CT compatibility with fast load response in just 0.3 seconds


Product Parameters

  • X1-HYBRID-3.0-D
  • X1-HYBRID-3.7-D
  • X1-HYBRID-5.0-D
  • X1-HYBRID-6.0-D
  • X1-HYBRID-7.5-D
  • X1-HYBRID-3.0-D
    • PV INPUT
      Max. recommended PV array power6.0 kWp
      MPPT voltage range70~550 V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT16 A/16 A


    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power3000 W
      Rated AC voltage1/N/PE, 220/230/240 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Rated EPS output power3000 VA
      Peak EPS output power6000 VA, 10 s
      Switchover time<10ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)482 x 417 x181 mm
      Net Weight24 kg


  • X1-HYBRID-3.7-D
    • PV INPUT
      Max. recommended PV array power7.4 kWp
      MPPT voltage range70~550 V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT16 A/16 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power3680 W
      Rated AC voltage1/N/PE, 220/230/240 V



    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Rated EPS output power3680 VA
      Peak EPS output power6000 VA, 10 s
      Switchover time<10



    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)482 x 417 x181 mm
      Net Weight25 kg



  • X1-HYBRID-5.0-D
    • PV INPUT
      Max. recommended PV array power10.0 kWp
      MPPT voltage range70~550 V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT16 A/16 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power

      5000 W

      (Gemmany 4600 W, AU 4999 W)

      Rated AC voltage1/N/PE, 220/230/240 V



    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Rated EPS output power5000 VA
      Peak EPS output power7500 VA, 10 s
      Switchover time<10>



    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)482 x 417 x181 mm
      Net Weight24 kg



  • X1-HYBRID-6.0-D
    • PV INPUT
      Max. recommended PV array power12.0 kWp
      MPPT voltage range70~550 V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT16 A/16 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power6000 W
      Rated AC voltage1/N/PE, 220/230/240 V



    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Rated EPS output power6000 VA
      Peak EPS output power9000 VA, 10 s
      Switchover time<10>



    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)482 x 417 x181 mm
      Net Weight24 kg



  • X1-HYBRID-7.5-D
    • PV INPUT
      Max. recommended PV array power15.0 kWp
      MPPT voltage range70~550 V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT16 A/16 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power7500 W
      Rated AC voltage1/N/PE, 220/230/240 V



    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Rated EPS output power7500 VA
      Peak EPS output power11250 VA, 10 s
      Switchover time<10>



    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)482 x 417 x181 mm
      Net Weight25 kg
