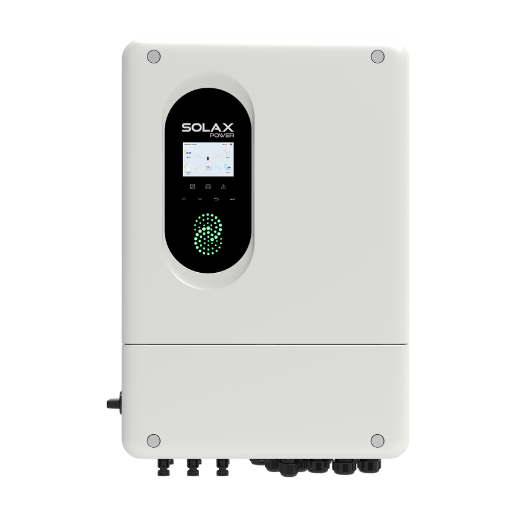

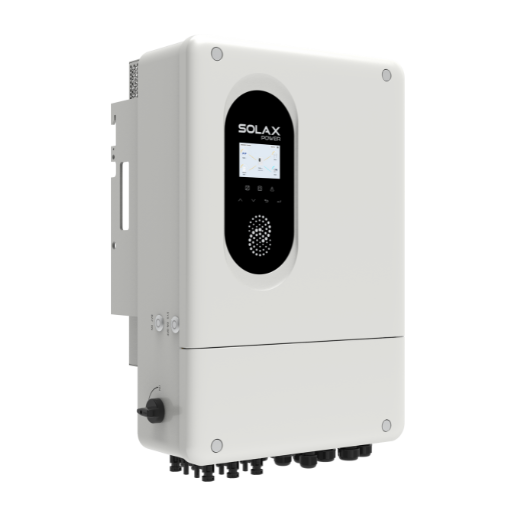

Hybrid Inverter
X1-Lite-LV
-
8kW / 10kW / 12kW
The X1-Lite LV inverter features 200% PV oversizing capability, and seamless integration with multiple battery types. Supporting both on-grid and off-grid applications with up to 3 units in parallel, it is ideal for residential and microgrid setups seeking reliable solar energy solutions.
-
Watch Video
Product Advantage
Engineered for high-demand environments, the X1-Lite LV delivers up to 110% AC output and supports a powerful 200% peak EPS power for 10 seconds. Featuring a maximum current of 32A input per MPPT for high-power solar panels, it ensures faster energy storage.
Smart loads management
Single unit UPS-level switchover time < 8ms
Global MPP scan for optimal energy harvest*
Max. 3pcs parallel for on-grid and off-grid*
Microgrid and generator function for versatile operations
Max. 32A input per MPPT, optimized for high-power solar panels.
200% PV oversizing and up to 110% AC output
200% peak EPS power for 10s*
Max. 250A charging / discharging current
Low start-up voltage for longer operation
Battery terminal temperature detection
IP65 protection degree
Type II SPD on AC&DC side
Optional AFCI protection*
Product Parameters
-
X1-Lite-8.0-LV-
PV INPUT
Max. recommended PV array power 16kWp MPPT voltage range 50 ~ 550 V No. of MPP. trackers / strings per MPPT 2/(2/2) Max. input current per MPPT 32 A/32 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 8000 W -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <8 ms -
GENERAL
Dimensions (W /H / D) 462 × 651 × 280 mm Net Weight 38.5 kg
-
-
X1-Lite-10.0-LV
-
PV INPUT
Max. recommended PV array power 20kWp MPPT voltage range 50 ~ 550 V No. of MPP. trackers / strings per MPPT 2/(2/2) Max. input current per MPPT 32 A/32 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 10000 W -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <8 ms -
GENERAL
Dimensions (W /H / D) 462 × 651 × 280 mm Net Weight 38.5 kg
-
-
X1-Lite-12.0-LV
-
PV INPUT
Max. recommended PV array power 24kWp MPPT voltage range 50 ~ 550 V No. of MPP. trackers / strings per MPPT 3/(2/2/2) Max. input current per MPPT 32 A/32 A/32A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 12000 W -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <8 ms -
GENERAL
Dimensions (W /H / D) 462 × 651 × 280 mm Net Weight 38.5 kg
-
