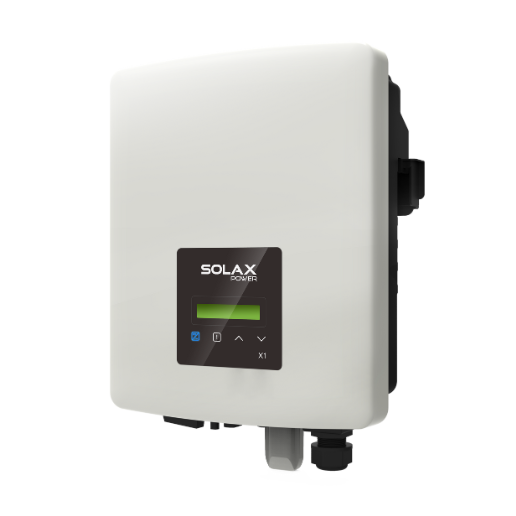

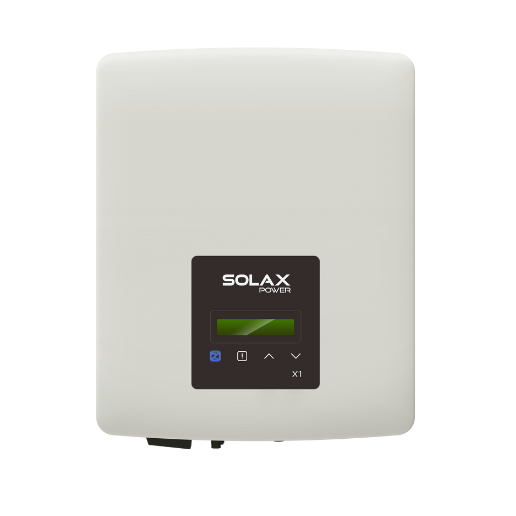

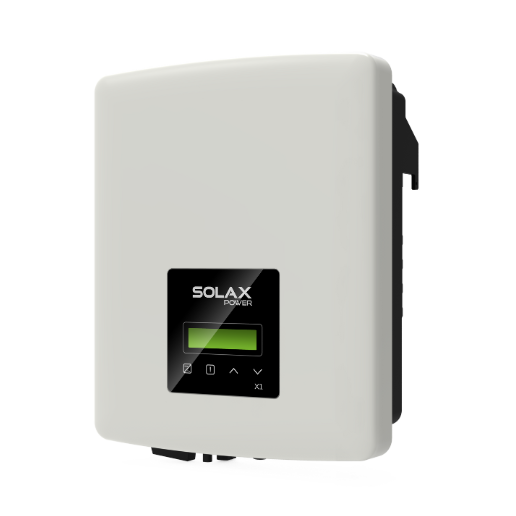

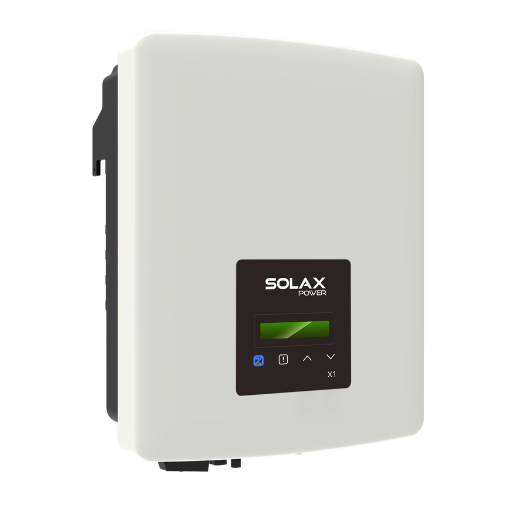

Single Phase Inverter

X1-MINI G3

0.6kW / 0.7kW / 1.1kW / 1.5kW / 2kW / 2.5kW / 3kW / 3.3kW / 3.6kW

Engineered for simplicity and ease of use, the SolaX X1-MINI G3 inverter boasts a compact, space-saving design perfect for small-scale PV systems. Featuring seamless remote upgrade and maintenance capabilities, it ensures effortless operation and minimal downtime, making it the ideal solution for residential solar energy setups.

Data Download

Product Advantage

Built for performance, the X1-MINI G3 supports 150% oversizing and 110% overloading, maximizing your energy yield. With low start-up voltage and wide MPPT range, it delivers up to 98% efficiency and stable output under various conditions.

User Friendly

Small and compact size
Remote upgrade and maintenance

High Efficiency

150% oversizing and 110% overloading
Max. DC input 14A per string

Assured Reliability

Low start-up voltage and wide MPPT range
SPD on both AC and DC side integrated

Product Parameters

X1-0.6-S-D(L) / X1-0.6-S-N(L)
X1-0.7-S-D(L) / X1-0.7-S-N(L)
X1-1.1-S-D(L) / X1-1.1-S-N(L)
X1-1.5-S-D(L) / X1-1.5-S-N(L)
X1-2.0-S-D(L) / X1-2.0-S-N(L)
X1-2.5K-S-D(L) / X1-2.5K-S-N(L)
X1-3K-S-D(L) / X1-3K-S-N(L)
X1-3.3K-S-D(L) / X1-3.3K-S-N(L)
X1-3.6K-S-D(L) / X1-3.6K-S-N(L)

X1-0.6-S-D(L) / X1-0.6-S-N(L)
- DC INPUT

  Max. PV array input power [Wp] 900
  MPP tracker voltage range [V] 45 ~ 430
  No. of MPP trackers / Strings per MPP tracker 1/1
- AC OUTPUT

  Rated AC output power [W] 600
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180--280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  267 x 328 x 126
  Net Weight[kg] 6
X1-0.7-S-D(L) / X1-0.7-S-N(L)
- DC INPUT

  Max. PV array input power [Wp] 1050
  MPP tracker voltage range [V] 45 ~ 430
  No. of MPP trackers / Strings per MPP tracker 1/1
- AC OUTPUT

  Rated AC output power [W] 700
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180--280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  267 x 328 x 126
  Net Weight[kg] 6
X1-1.1-S-D(L) / X1-1.1-S-N(L)
- DC INPUT

  Max. PV array input power [Wp] 1650
  MPP tracker voltage range [V] 45 ~ 430
  No. of MPP trackers / Strings per MPP tracker 1/1
- AC OUTPUT

  Rated AC output power [W] 700
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180--280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  267 x 328 x 126
  Net Weight[kg] 6
X1-1.5-S-D(L) / X1-1.5-S-N(L)
- DC INPUT

  Max. PV array input power [Wp] 2250
  MPP tracker voltage range [V] 50 ~ 430
  No. of MPP trackers / Strings per MPP tracker 1/1
- AC OUTPUT

  Rated AC output power [W] 1500
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180--280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  267 x 328 x 126
  Net Weight[kg] 6
X1-2.0-S-D(L) / X1-2.0-S-N(L)
- DC INPUT

  Max. PV array input power [Wp] 3000
  MPP tracker voltage range [V] 50 ~ 430
  No. of MPP trackers / Strings per MPP tracker 1/1
- AC OUTPUT

  Rated AC output power [W] 2000
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180--280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  267 x 328 x 126
  Net Weight[kg] 6
X1-2.5K-S-D(L) / X1-2.5K-S-N(L)
- DC INPUT

  Max. PV array input power [Wp] 3750
  MPP tracker voltage range [V] 55 ~ 530
  No. of MPP trackers / Strings per MPP tracker 1/1
- AC OUTPUT

  Rated AC output power [W] 2500
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180--280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  267 x 328 x 126
  Net Weight[kg] 8.3
X1-3K-S-D(L) / X1-3K-S-N(L)
- DC INPUT

  Max. PV array input power [Wp] 4500
  MPP tracker voltage range [V] 55 ~ 530
  No. of MPP trackers / Strings per MPP tracker 1/1
- AC OUTPUT

  Rated AC output power [W] 3000
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180--280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  267 x 328 x 126
  Net Weight[kg] 8.3
X1-3.3K-S-D(L) / X1-3.3K-S-N(L)
- DC INPUT

  Max. PV array input power [Wp] 4950
  MPP tracker voltage range [V] 55 ~ 530
  No. of MPP trackers / Strings per MPP tracker 1/1
- AC OUTPUT

  Rated AC output power [W] 3300
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180--280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  267 x 328 x 126
  Net Weight[kg] 8.3
X1-3.6K-S-D(L) / X1-3.6K-S-N(L)
- DC INPUT

  Max. PV array input power [Wp] 5400
  MPP tracker voltage range [V] 55 ~ 530
  No. of MPP trackers / Strings per MPP tracker 1/1
- AC OUTPUT

  Rated AC output power [W] 3680
  Nominal AC voltage/ AC voltage range [V]
  220/230/240; 180--280
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)[mm]
  267 x 328 x 126
  Net Weight[kg] 8.3
