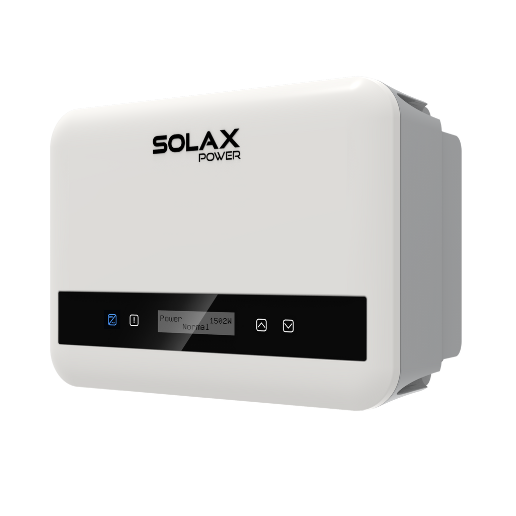

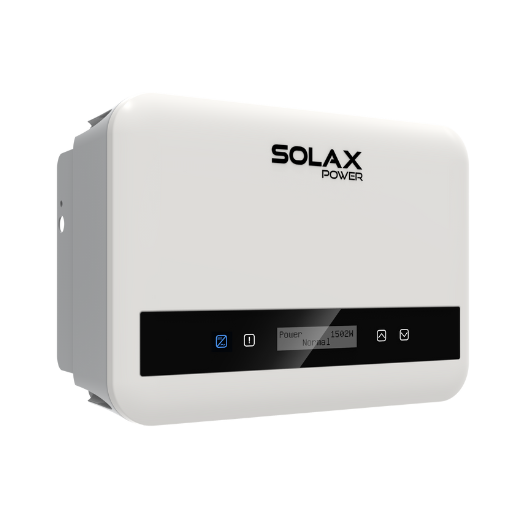

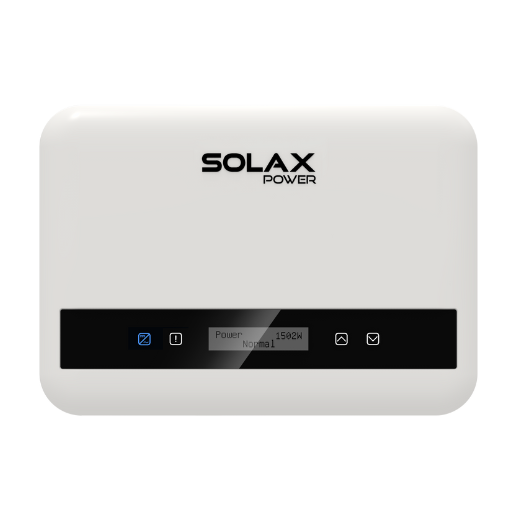

Single Phase Inverter

X1-MINI G4

0.6kW / 0.7kW / 0.8kW / 1.1kW / 1.5kW / 2kW / 2.5kW / 3kW / 3.3kW

The X1-MINI G4 features ultra-compact size—smaller than an A4 paper—makes it ideal for balcony installations and tight spaces. With built-in support for parallel operation and smart loads management, it's engineered for seamless integration and easy scalability.

Watch Video
Data Download

Product Advantage

Unlock up to 200% PV oversizing and 16A input with the X1-MINI G4, built to support high-power panels and global MPP tracking. Its ultra-wide MPPT range and shade optimization ensure peak energy yield in any condition.

Intelligent Design

10s data refresh on SolaXCloud
I-V curve diagnosis

Flexible Adaptability

Supports parallel operation for up to 5 inverters, no external EMS required
Smart loads management (e.g., heat pump, smart EV charger)

High Efficiency

200% PV oversizing and 16A input to support
High-power panels
Ultra-Wide MPPT voltage range
Global MPP tracking with shade optimization

Assured Safety

Type II SPD on AC&DC side
Ready for Rapid Shutdown function
AFCI support (optional)
Built-in export control function

Product Parameters

X1-MINI-0.6K-G4
X1-MINI-0.7K-G4
X1-MINI-0.8K-G4
X1-MINI-1.1K-G4
X1-MINI-1.5K-G4
X1-MINI-2.0K-G4
X1-MINI-2.5K-G4
X1-MINI-3.0K-G4
X1-MINI-3.3K-G4

X1-MINI-0.6K-G4
- PV INPUT

  Max. recommended PV array power 1.2 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 600 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-0.7K-G4
- PV INPUT

  Max. recommended PV array power 1.4 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 700 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-0.8K-G4
- PV INPUT

  Max. recommended PV array power 1.6 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 800 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-1.1K-G4
- PV INPUT

  Max. recommended PV array power 2.2 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 1100 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-1.5K-G4
- PV INPUT

  Max. recommended PV array power 3 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 1500 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-2.0K-G4
- PV INPUT

  Max. recommended PV array power 4 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 2000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-2.5K-G4
- PV INPUT

  Max. recommended PV array power 5 kWp
  MPPT voltage range 40 ~ 550 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 3000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.5 kg
X1-MINI-3.0K-G4
- PV INPUT

  Max. recommended PV array power 6 kWp
  MPPT voltage range 40 ~ 550 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 3000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.5 kg
X1-MINI-3.3K-G4
- PV INPUT

  Max. recommended PV array power 6.6 kWp
  MPPT voltage range 40 ~ 550 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 3300 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.5 kg
