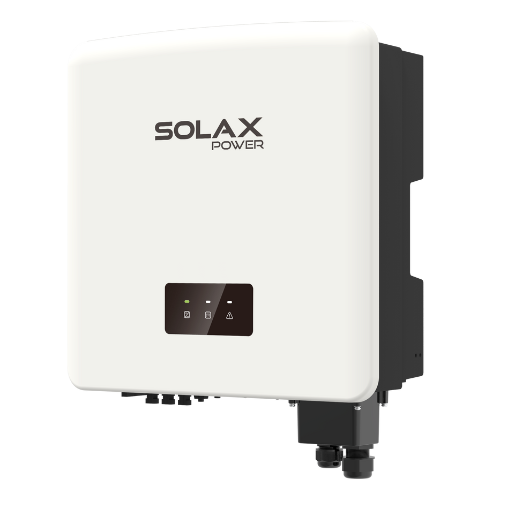

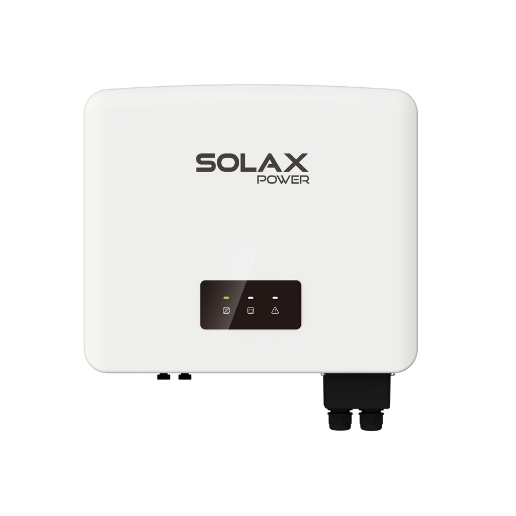

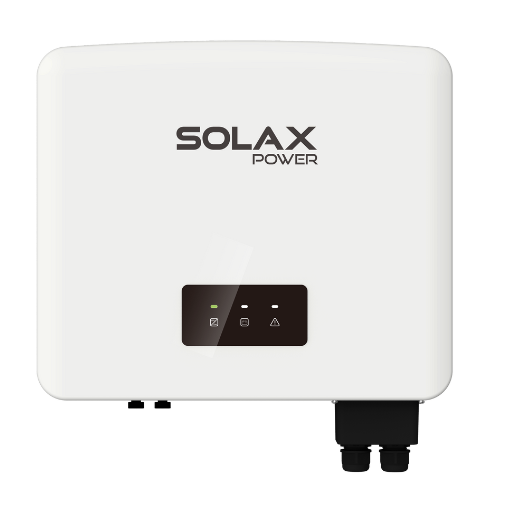

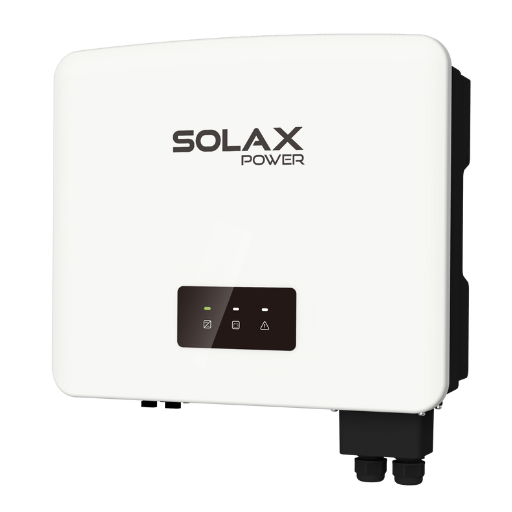

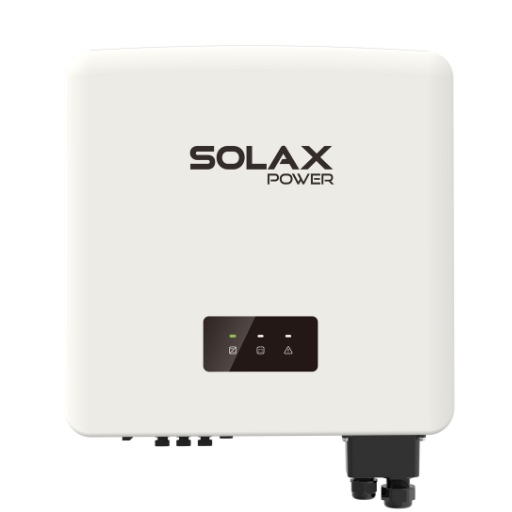

Hybrid Inverter
X1-SPT
-
3kW / 3.6kW / 6kW / 7kW
Tailored for the Latin American market, the X1-SPT inverter supports 2 units in parallel, and compatibility with high-power solar panels for maximum energy utilization and reliable energy solutions.
Product Advantage
With a high efficiency of up to 97%, the X1-SPT inverter delivers superior flexibility with 150% PV oversizing, 120% overload output for 60 seconds. Built-in shadow tracking technology, and multiple work modes provide intelligent energy management.
NEMA 4X
SPD integrated
Switchover time<20ms
5 work modes, 2 charging periods available
Split phase 120 V & 240V output supported
Max. 14A DC input current, high power solar panel supported
Store the surplus energy from PV to battery
Low start output voltage makes inverter longer working time
150% PV oversized
Max. 120% overload output for 60s
Higher efficiency on charging and discharging, up to 97.4%
Shadow tracking function integrated
Product Parameters
-
X1-SPT-3K-
INPUT PV
Max.recommended PV panel power [W] 4500 MPPT voltage range[V] 70 ~ 480 No. of MPP. trackers 2 Max. input current (per mppt) [A] 14/14 -
OUTPUT / INPUT AC
Norminal AC outpout power [W] 3000 Rated grid voltage (AC voltage range)[V] 1P 3W 120/240 -
GENERAL
Dimensions of inverter [mm] 482*417*181 Inverter net weight [kg] 24
-
-
X1-SPT-3.6K
-
INPUT PV
Max.recommended PV panel power [W] 5400 MPPT voltage range[V] 70 ~ 480 No. of MPP. trackers 2 Max. input current (per mppt) [A] 14/14 -
OUTPUT / INPUT AC
Norminal AC outpout power [W] 3600 Rated grid voltage (AC voltage range)[V] 1P 3W 120/240 -
GENERAL
Dimensions of inverter [mm] 482*417*181 Inverter net weight [kg] 24
-
-
X1-SPT-6K
-
INPUT PV
Max.recommended PV panel power [W] 9000 MPPT voltage range[V] 70 ~ 480 No. of MPP. trackers 3 Max. input current (per mppt) [A] 14/14/14 -
OUTPUT / INPUT AC
Norminal AC outpout power [W] 6000 Rated grid voltage (AC voltage range)[V] 1P 3W 120/240 -
GENERAL
Dimensions of inverter [mm] 502*502*200 Inverter net weight [kg] 31
-
-
X1-SPT-7K
-
INPUT PV
Max.recommended PV panel power [W] 10500 MPPT voltage range[V] 70 ~ 480 No. of MPP. trackers 3 Max. input current (per mppt) [A] 14/14/14 -
OUTPUT / INPUT AC
Norminal AC outpout power [W] 7000 Rated grid voltage (AC voltage range)[V] 1P 3W 120/240 -
GENERAL
Dimensions of inverter [mm] 502*502*200 Inverter net weight [kg] 31
-
