Microinverter

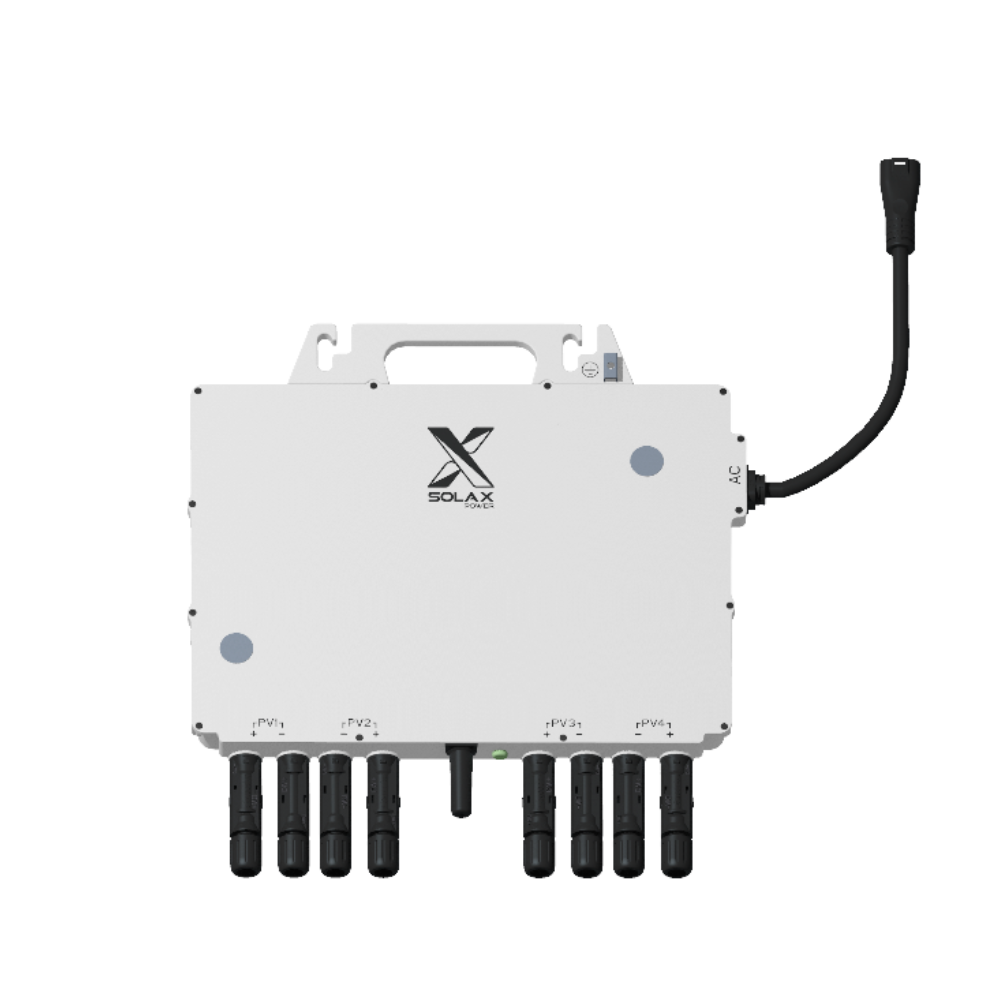

X1-Micro 4 in 1 G2
-
1875 W / 2000 W / 2250 W / 2400 W
The X1-Micro 4 in 1 G2 is a high-efficiency, safe, and intelligent microinverter designed for modern photovoltaic (PV) systems. Combining cutting-edge technology with robust design, the X1-Micro 4 in 1 G2 can fit fot residential and commercial PV installations.
Product Advantage
Featuring four independent MPPT channels, it delivers up to 2400 VA output power and supports a maximum DC input current of 18 A, with an industry-leading 97% peak efficiency for optimal energy harvesting.
Assured Safety
Rapid shutdown function
Safety protection relay integrated
IP67 ingress protection
Flexible Adaptability
Plug and play
Supporting AC coupling solution
Supporting 1-phase microinverter integration into 3-phase power grids
High Efficiency
Max. 2400 VA output power
Max. 18 A DC input current
Four MPPT channels
Max. efficiency up to 97%
Intelligent Design
Reactive power regulation (0.8 leading…0.8 lagging)
Built-in WiFi / PLC communication
Support zero export function
Module level monitoring and control
Remote firmware upgrades, parameter configuration, and fault analysis
Product Parameters
-
X1-Micro 1875 G2-
PV INPUT
Commonly used module power per input 360 ~ 600+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 4 / 1 -
AC OUTPUT
Rated AC output power 1875 VA -
EFFICIENCY
Max. efficiency 97.00% MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 317 × 225 × 41 mm Weight 5.2 kg Cooling Concept Natural cooling
-
-
X1-Micro 2000 G2
-
PV INPUT
Commonly used module power per input 400 ~ 670+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 4 / 1 -
AC OUTPUT
Rated AC output power 2000 VA -
EFFICIENCY
Max. efficiency 97.00% MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 317 × 225 × 41 mm Weight 5.2 kg Cooling Concept Natural cooling
-
-
X1-Micro 2250 G2
-
PV INPUT
Commonly used module power per input 450 ~ 700+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 4 / 1 -
AC OUTPUT
Rated AC output power 2250 VA -
EFFICIENCY
Max. efficiency 97.00% MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 317 × 225 × 41 mm Weight 5.2 kg Cooling Concept Natural cooling
-
-
X1-Micro 2400 G2
-
PV INPUT
Commonly used module power per input 500 ~ 750+ W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 4 / 1 -
AC OUTPUT
Rated AC output power 2400 VA -
EFFICIENCY
Max. efficiency 97.00% MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 317 × 225 × 41 mm Weight 5.2 kg Cooling Concept Natural cooling
-
